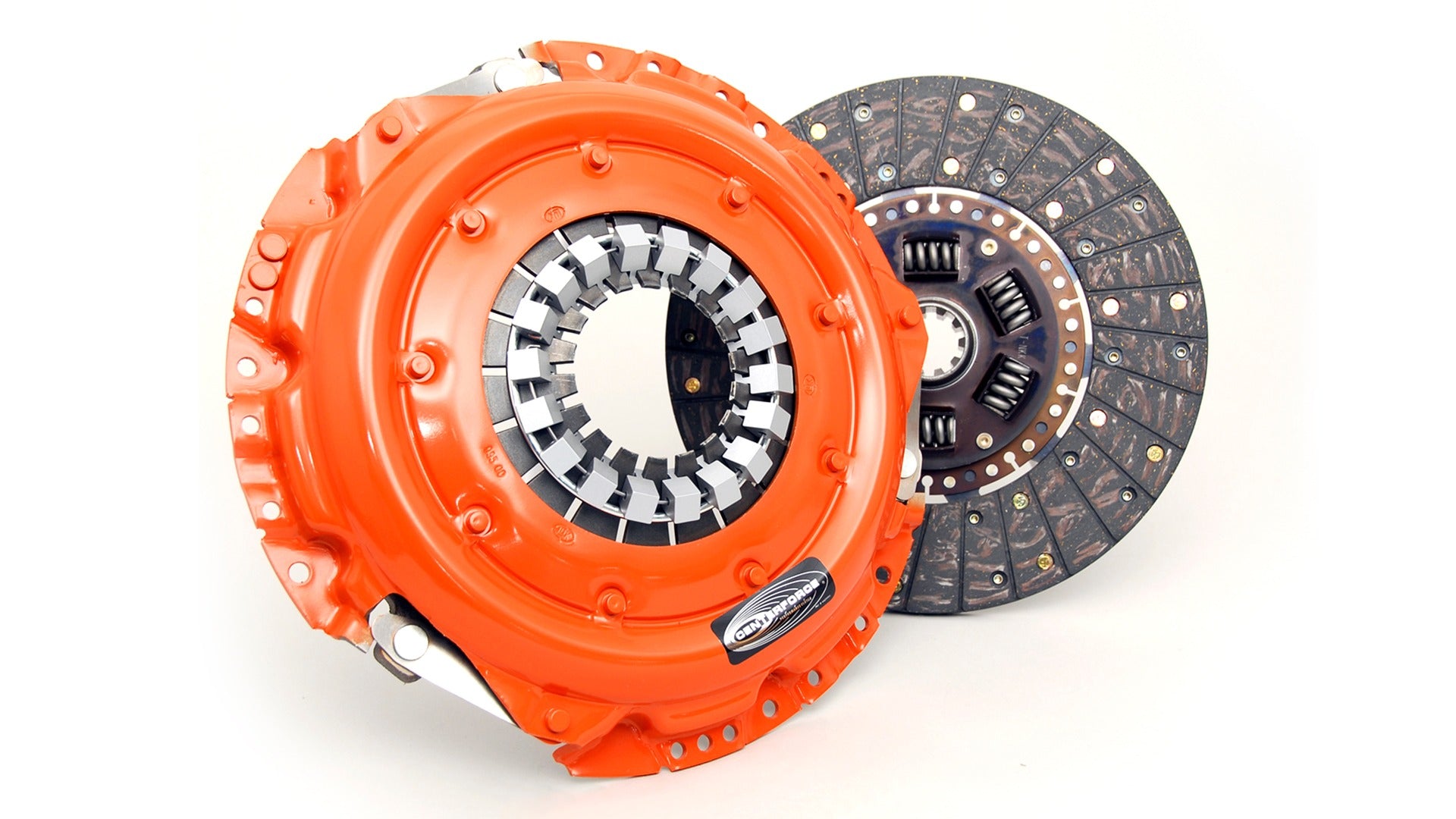

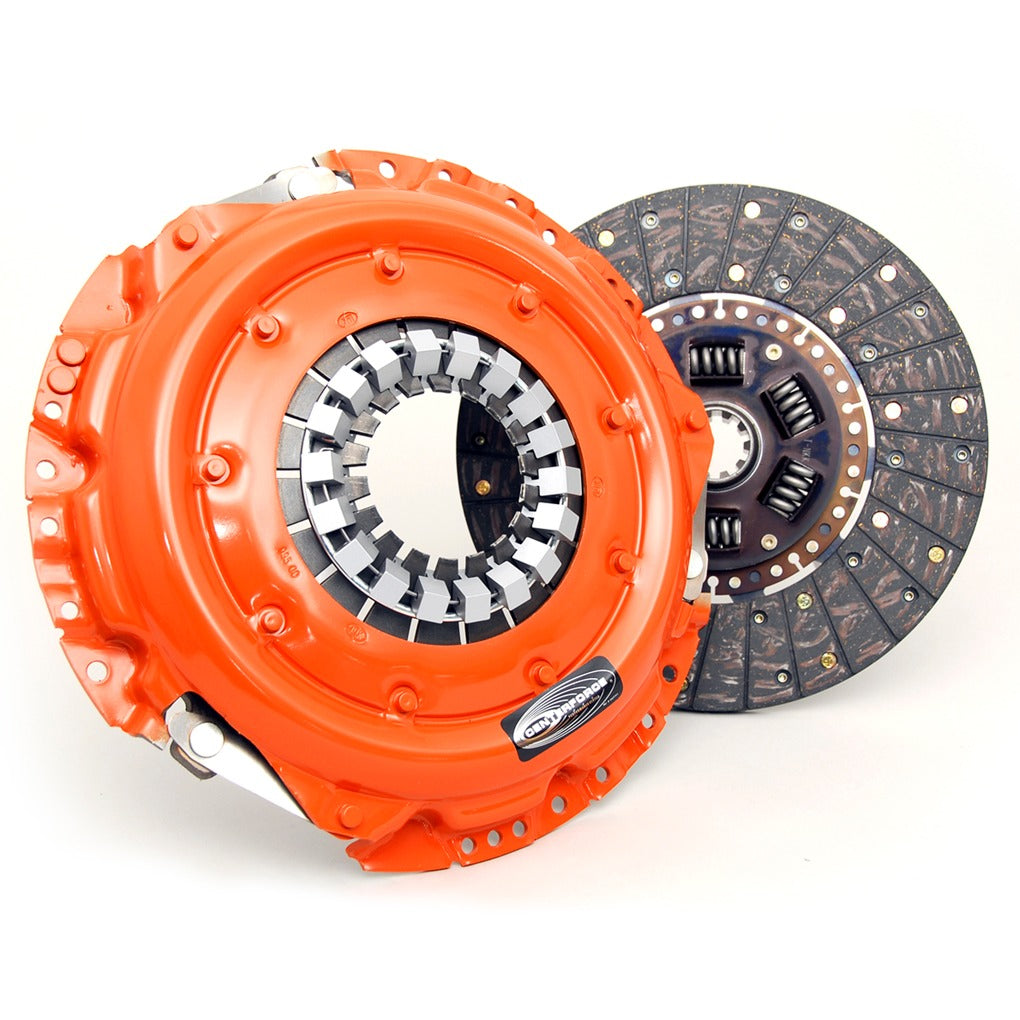

Centerforce ? II Performance Clutch Pressure Plate And Disc Set 418 Ft/lbs Capacity 11in Dia. 10-Spline Fits Ford Cars 6.4L/7.0L

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

• 11" Diameter
• 279.4mm Diameter
• 1-3/8" x 10 Spline Input Shaft
• Holds Up To 418 ft/lbs of Torque
• Sprung Hub Disc with Organic Material
• Centrifugally Assisted
• Ball Bearing Pressure Plate (where Applicable)
• Light Pedal Effort

Vehicle Specific

• Ford Cars 6.4L/7.0L

Attributes:

• Brand Name: Centerforce
• GTIN: 00788442020595
• Alignment Tool Included9: Yes
• Clutch Bolt Pattern4: 6
• Clutch Disc Diameter: 279.4
• Counterweight Assist5: YES
• Disc Material3: Organic
• Disc Type Sprung Solid2: Sprung
• Disc Type6: Full face
• Flywheel Step Type3: Flat
• Input Shaft Diameter1: 1-3/8
• Input Spline Quantity2: 10
• Made In The USA9: Assembled
• Material4: Cast Iron Pressure Plate / Organic Friction
• Torque Capacity: 418

Extended Information:

• Country of Origin: MX
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 4 inches
• Weight: 24.95 POUNDS
