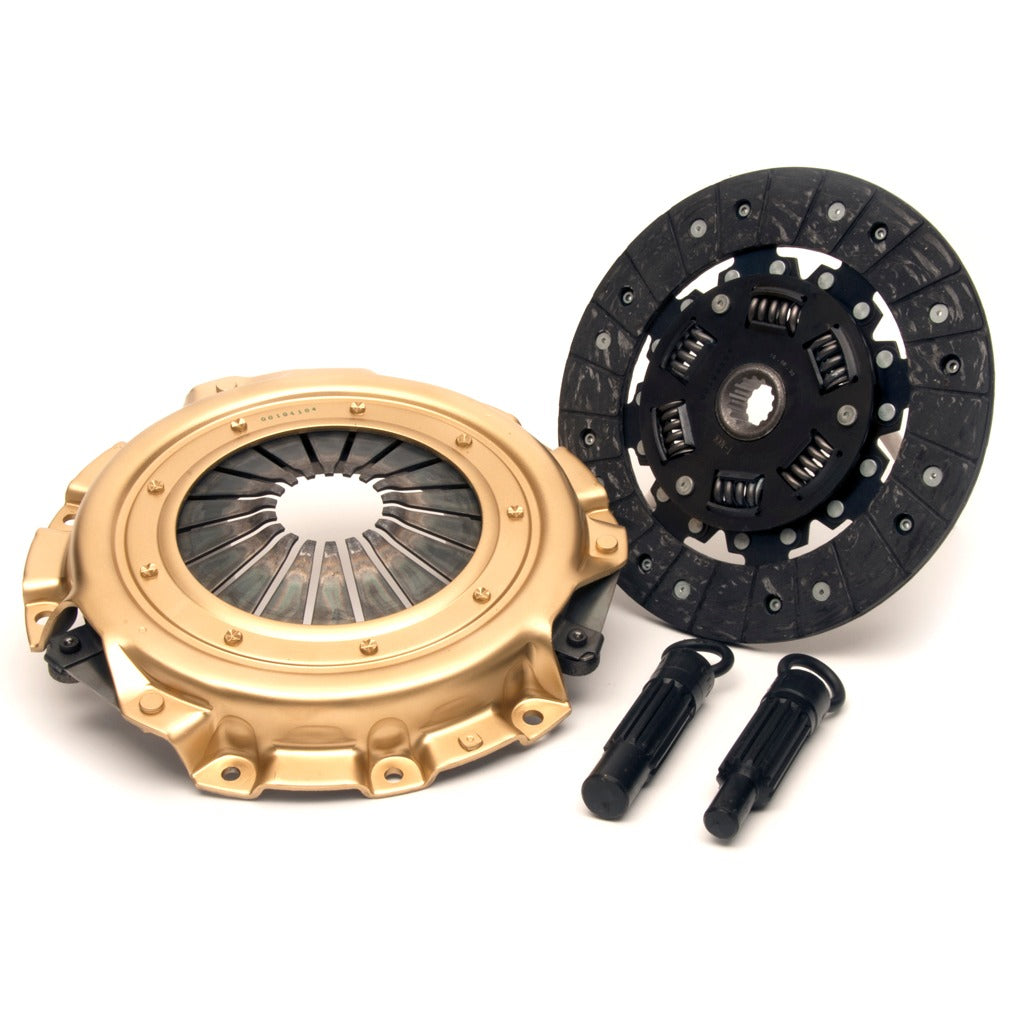

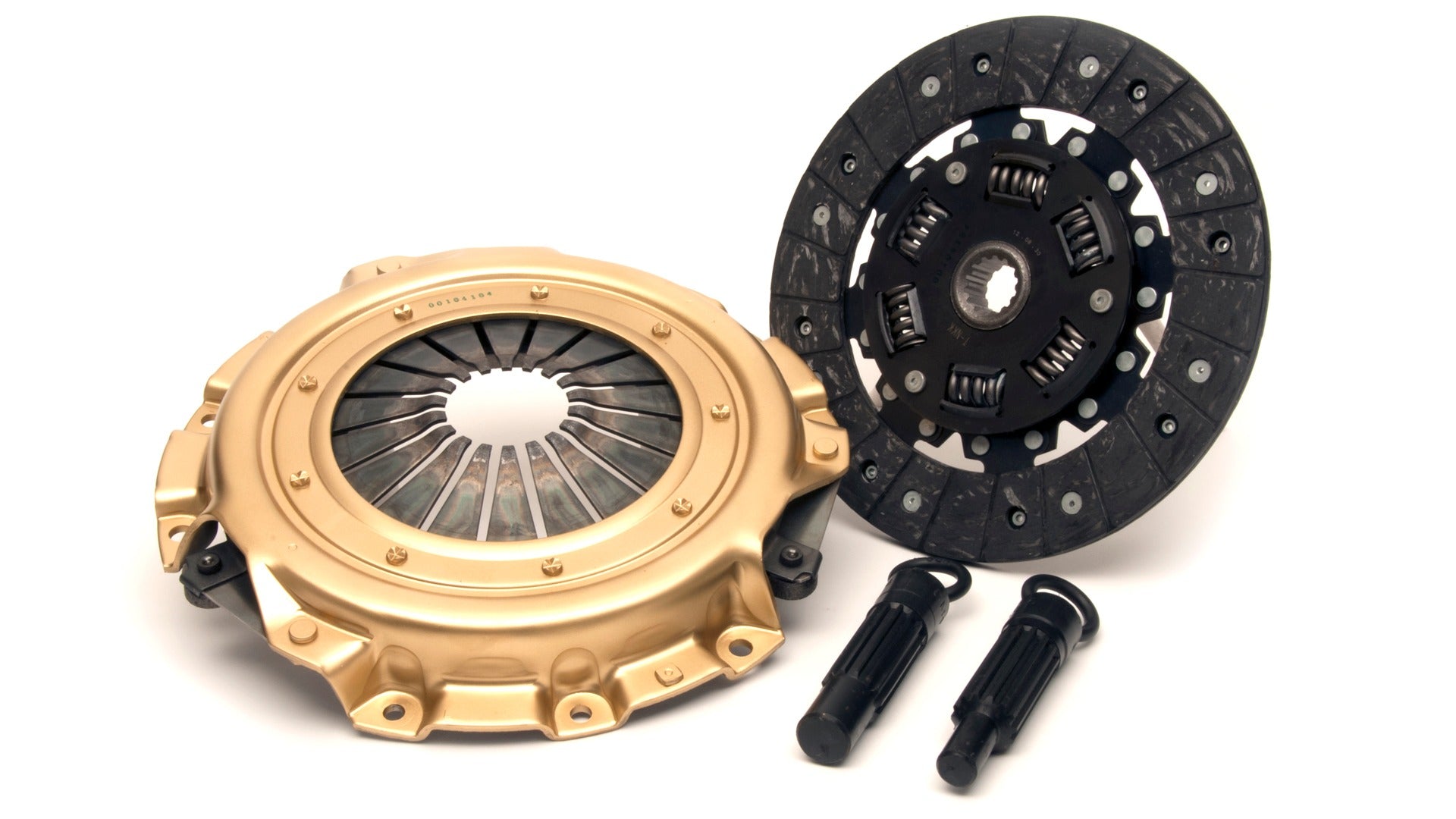

Centerforce ? I Premium Clutch Pressure Plate And Disc Set 272 Ft/lbs Capacity 9.125in Dia. 14-Spline Fits - Cars And Trucks 4/6 Cyl

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

• 9.125" Diameter
• 236mm Diameter
• 1" x 14 Spline Input Shaft
• Holds Up To 272 ft/lbs of Torque
• Sprung Hub Disc with Organic Material
• High Quality Friction Material
• Light Pedal Effort
• Smooth Engagement

Vehicle Specific

• - Cars and Trucks 4/6 Cylinders

Attributes:

• Brand Name: Centerforce
• GTIN: 00788442019223
• Alignment Tool Included9: Yes
• Clutch Disc Diameter: 236
• Counterweight Assist5: No
• Disc Material3: Organic
• Disc Type Sprung Solid2: Sprung
• Disc Type6: Full face
• Input Shaft Diameter1: 1
• Input Spline Quantity2: 14
• Made In The USA9: Assembled
• Material4: Cast Iron Pressure Plate / Organic Friction
• Torque Capacity: 272

Extended Information:

• Country of Origin: Japan
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 4 inches
• Weight: 15.1 POUNDS

PDF:
