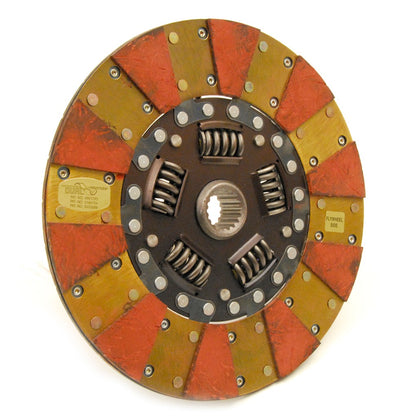

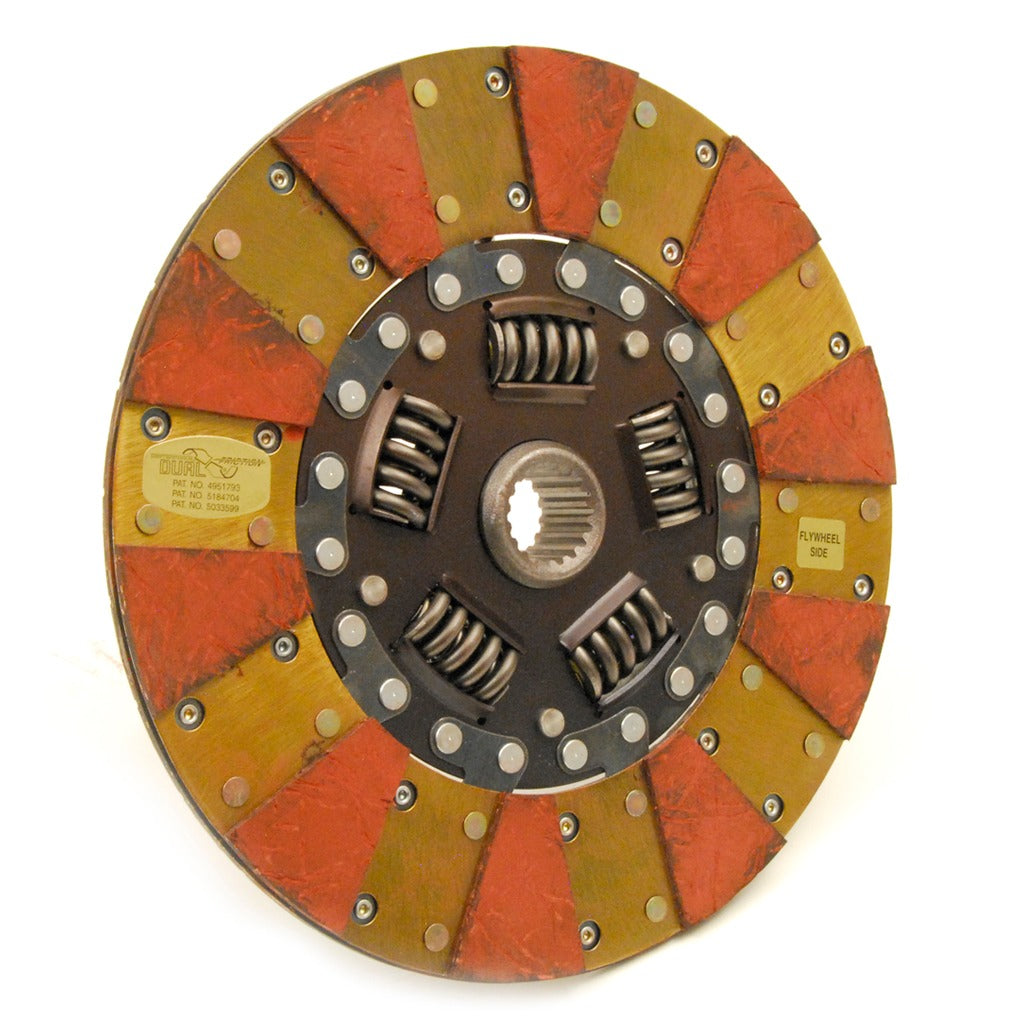

Centerforce Dual Friction ? High Performance Clutch Friction Disc 10.700in Dia. 18-Spline Fits Dodge/Plymouth Cars 7.0L/7.2L

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.

• 10.700" Diameter
• 271.8mm Diameter
• 1-3/16" x 18 Spline Input Shaft
• Weighs 4.70 lbs
• Sprung Hub Disc with Organic/Carbon Composite Material
• Dual Friction Design
• High Quality Friction Material
• Increased Holding Capacity

Vehicle Specific

• Dodge/Plymouth Cars 7.0L/7.2L

Attributes:

• Brand Name: Centerforce
• GTIN: 00788442027686
• Clutch Disc Diameter: 271.8
• Disc Material1: Organic/Carbon composite
• Disc Type Sprung Solid2: Sprung
• Disc Type4: Full face/Segmented face
• Input Shaft Diameter0: 1-3/16
• Input Spline Quantity1: 18
• Inside Diameter of Friction Surface0: 6.490
• Made In The USA9: Assembled
• Material3: Full Face and Segmented Organic Friction
• Out of Package Weight: 4.70

Extended Information:

• Country of Origin: Thailand
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 2 inches
• Weight: 5.26 POUNDS
