Centerforce Dual Friction ? High Performance Clutch Friction Disc 10.4in Dia. 10-Spline Fits Buick/Chevrolet/GMC/Oldsmobile/Pontiac Cars And Trucks 6/8 Cyl

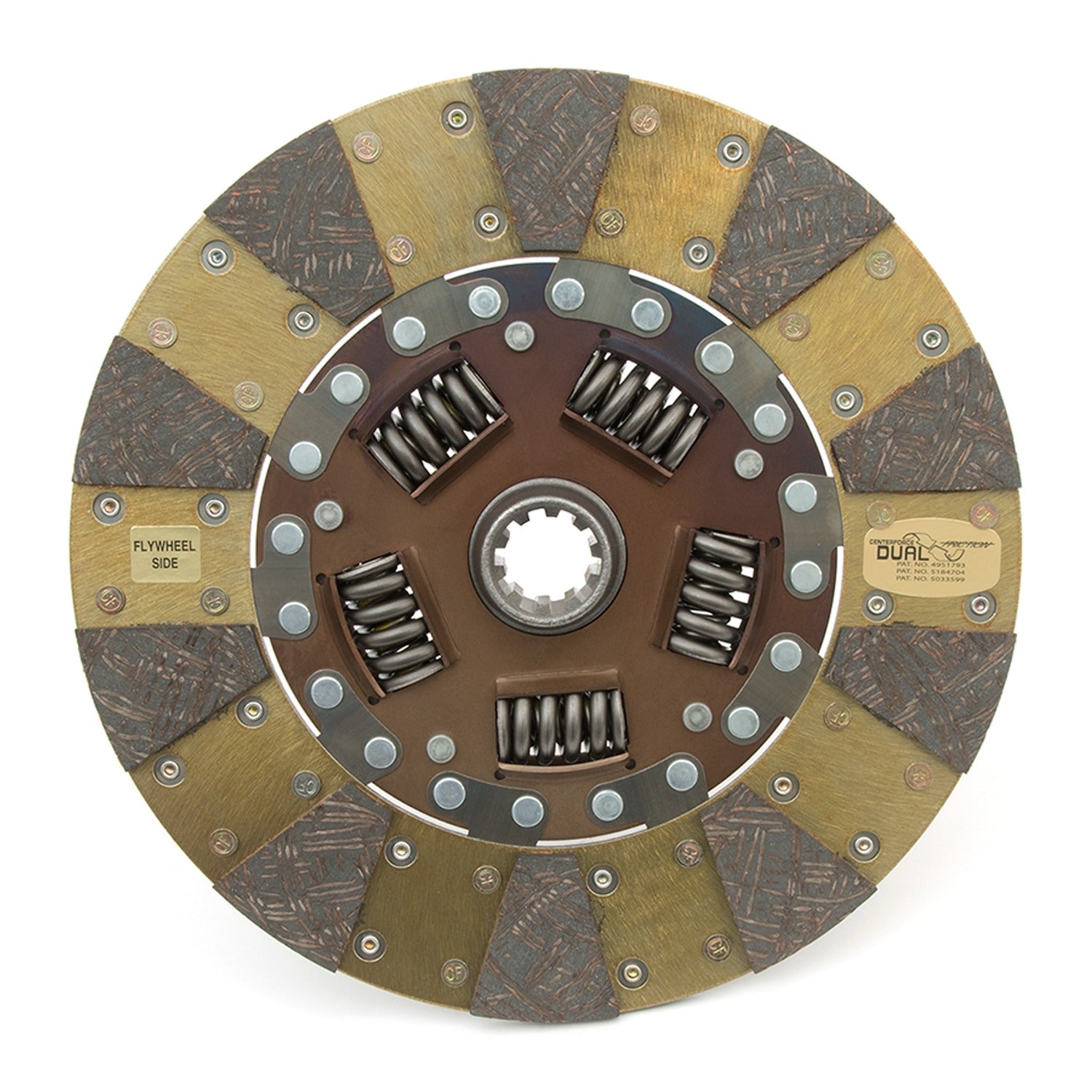

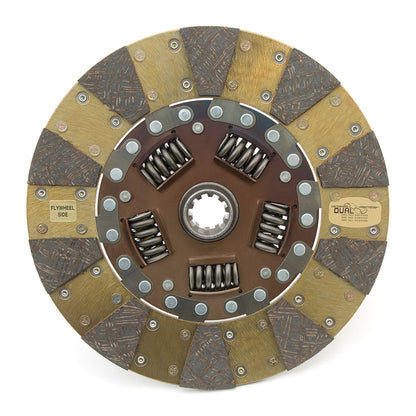

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.

• 10.4" Diameter
• 264.2mm Diameter
• 1-1/8" x 10 Spline Input Shaft
• Weighs 4.34 lbs
• Sprung Hub Disc with Organic/Carbon Composite Material
• Dual Friction Design
• High Quality Friction Material
• Increased Holding Capacity

Vehicle Specific

• Buick/Chevrolet/GMC/Oldsmobile/Pontiac Cars and Trucks 6/8 Cylinders

Attributes:

• Brand Name: Centerforce
• GTIN: 00788442027617
• Clutch Disc Diameter: 264.2
• Disc Material1: Organic/Carbon composite
• Disc Type Sprung Solid2: Sprung
• Disc Type4: Full face/Segmented face
• Input Shaft Diameter0: 1-1/8
• Input Spline Quantity1: 10
• Inside Diameter of Friction Surface0: 6.490
• Made In The USA9: Assembled
• Material3: Full Face and Segmented Organic Friction
• Out of Package Weight: 4.34

Extended Information:

• Country of Origin: Thailand
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 2 inches
• Weight: 4.89 POUNDS
