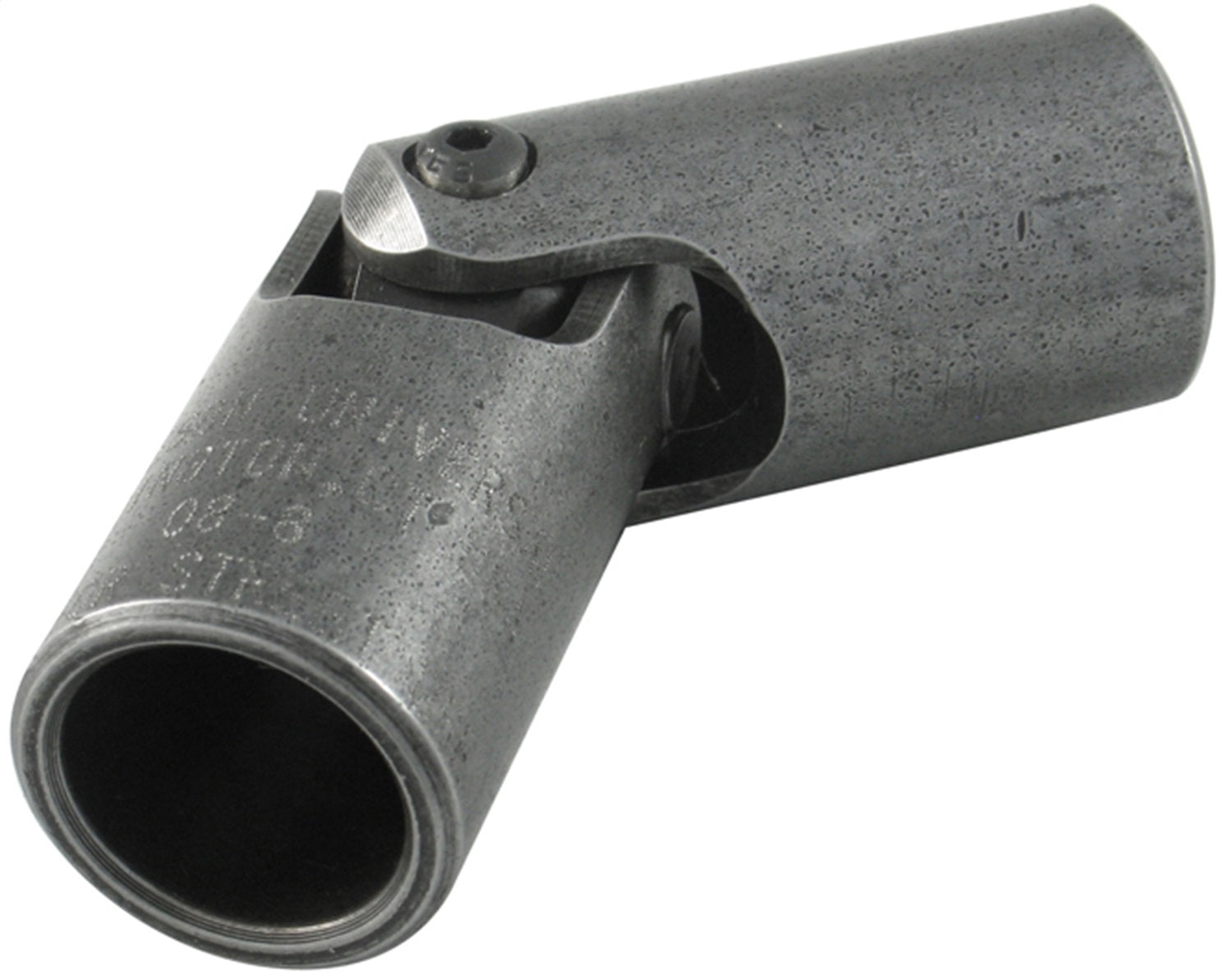

Borgeson - Steering U-Joint - P/N: 510962 - Steel Pin & Block Style Universal Joint. 1 In. Outside Diameter. Fits 9/16 In.-26 Spline X 5/8 In. Smooth Bore.

Borgeson pin and block style universal joints are high strength cost effective option. These universal joints are manufactured from high strength billet alloy steel and then heat treated to obtain maximum strength. Because the u-joints use pivot pins and blocks instead of sealed needle bearings, they must be checked and lubricated every time the vehicle is driven. This 1" O.D. joint is ideal for ASCricating shift linkage or use in drag car steering. NOT FOR STREET USE.

• High strength to weight ratio. Not for street use. Requires lubrication. Made in the USA.

Attributes:

• Brand Name: Borgeson
• GTIN: 00843975003269
• CA Prop 65 Required: Y
• End 1 Inside Diameter: .562
• End 1 Spline Quantity: 26
• End 2 Inside Diameter: .625
• End 2 Spline Quantity: 0
• Grade Type: Performance
• Greaseable: No
• Length: 3.375
• Material: Steel
• Shaft End 1: 9/16 in. 26-spline
• Shaft End 2: 5/8 in. without splines

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 1.75 x 3.75 x 5.75 inches
• Weight: 0.53 POUNDS
