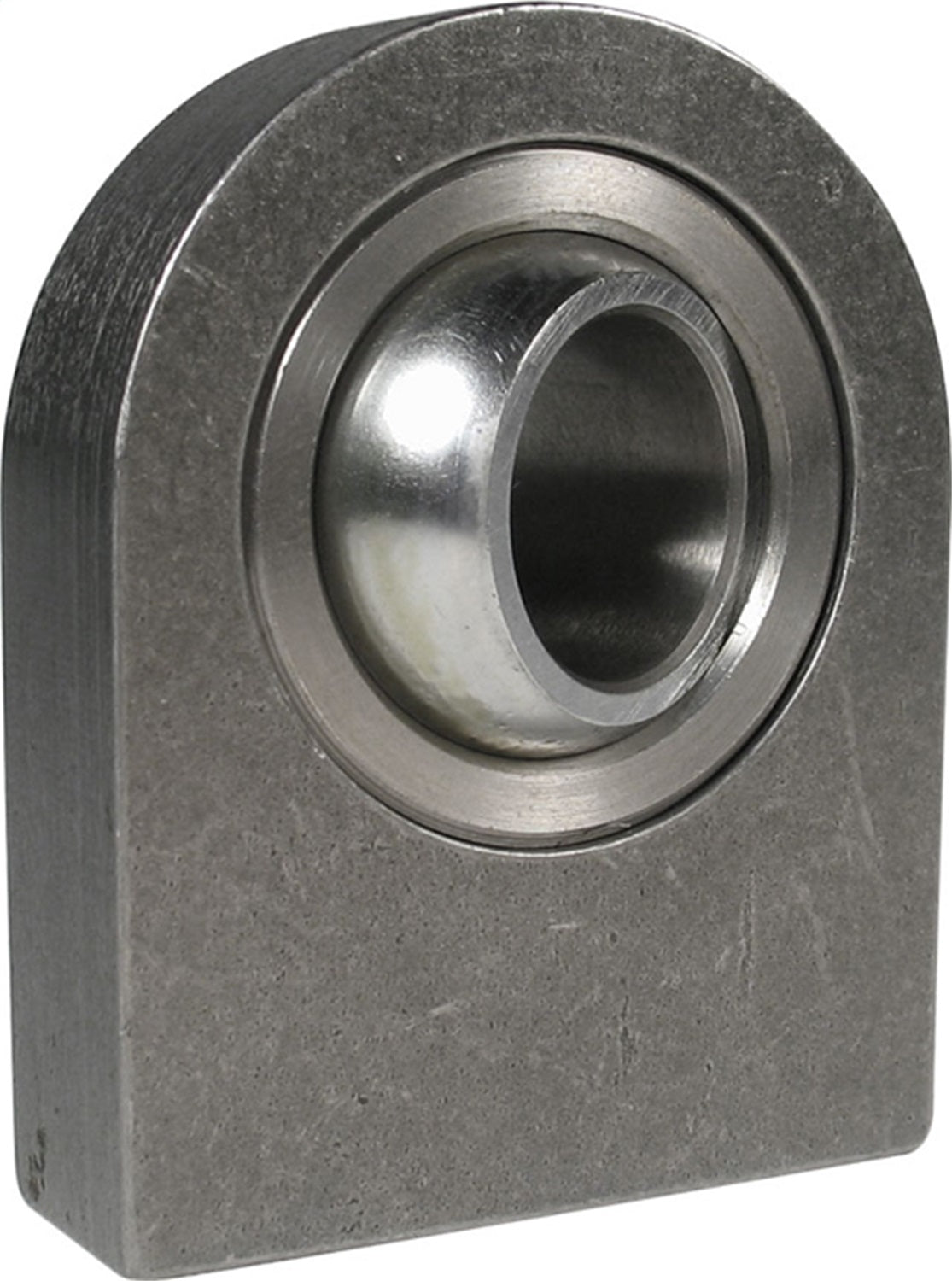

Borgeson - Steering Shaft Support - P/N: 670000 - Steering Shaft Support Bearing. Billet Steel. Tapped To Receive Two 5/16 In.-18 Bolts. Supports All 3/4 In. Splined And Double-D Steering Shaft.

If more than two joints are used in a steering system, a support bearing must be used to prevent "looping" and binding. Use of a vibration reducer and two u-joints will also call for a support bearing to be used. A system with a double u-joint and a single u-joint has three flex points and will require a support bearing. Support bearings will work with all 3/4" splined or Double D steering shafts. All billet supports accommodate a 3/4" shaft. Our standard supports are 2-1/2" tall with two 5/16"-18 threaded holes in the end for mounting and are available in steel, aluminum, polished aluminum, stainless steel, and polished stainless steel. The 6" cut and weld billet support is available only in steel and can be cut at any angle for a perfect fit.

• Supports 3/4" round and3/4" DD Steering shafts. Prevents center joint from looping in a three-joint steering system. Made in the USA.

Attributes:

• Brand Name: Borgeson
• GTIN: 00843975003535
• CA Prop 65 Required: Y
• Height: 2.50
• Inside Diameter: .750
• Thickness: .625
• Width: 2.00

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 1.75 x 3.75 x 5.75 inches
• Weight: 0.74 POUNDS

PDF:
