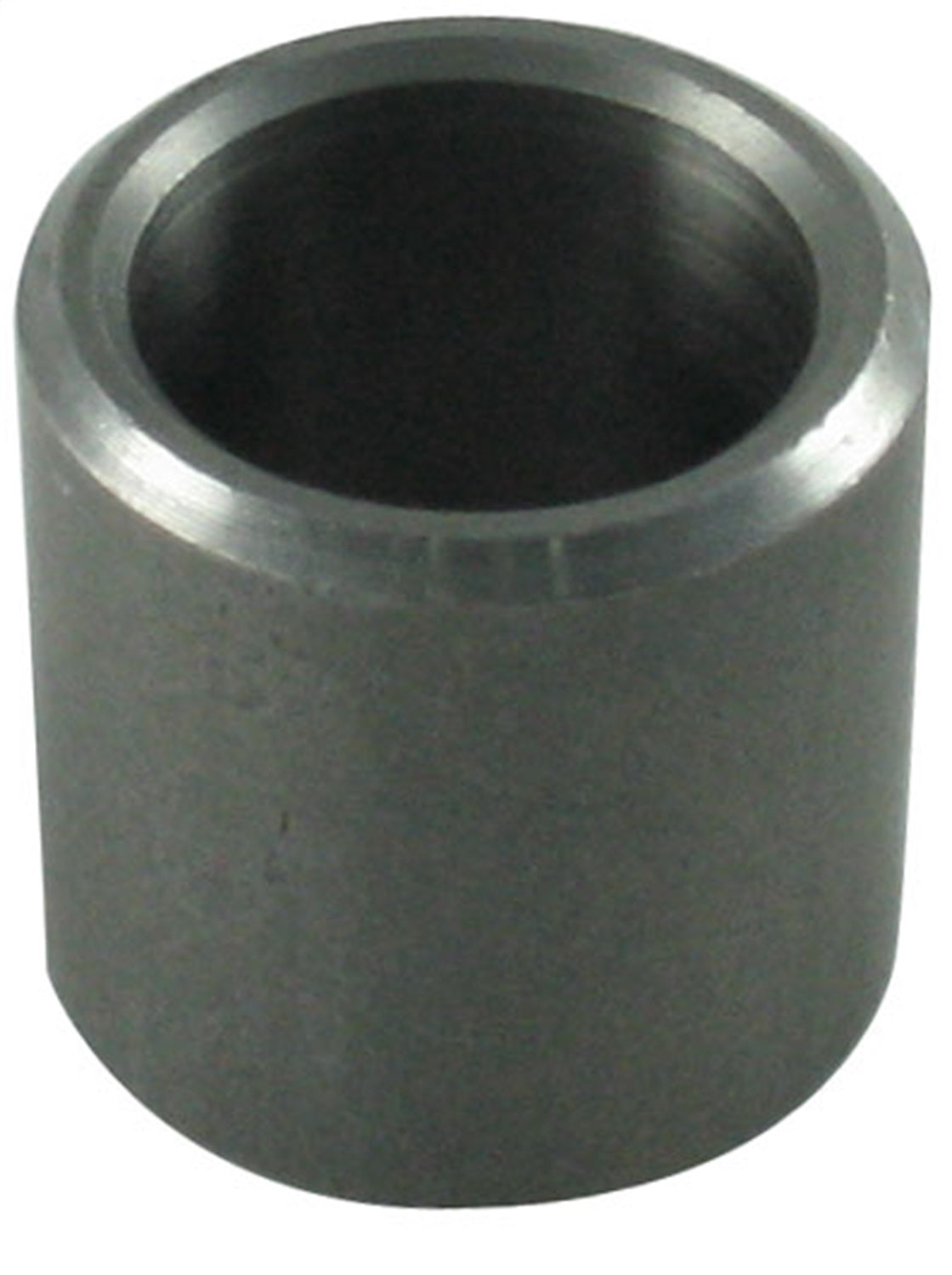

Borgeson - Steering Adapter - P/N: 358200 - Steel Steering Coupler Adapter. 1-1/4 In. Outside Diameter By 3/4 In. Inside Diameter.

Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1?4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.

• Reduces diameter of couplers to accept 3/4" diameter steering shafts. Safe to weld. Made in the USA.

Attributes:

• Brand Name: Borgeson
• GTIN: 00843975002811
• CA Prop 65 Required: Y
• Length: 1.00
• Material: Steel
• Shaft Diameter: .75

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 1.75 x 3.75 x 5.75 inches
• Weight: 0.24 POUNDS
