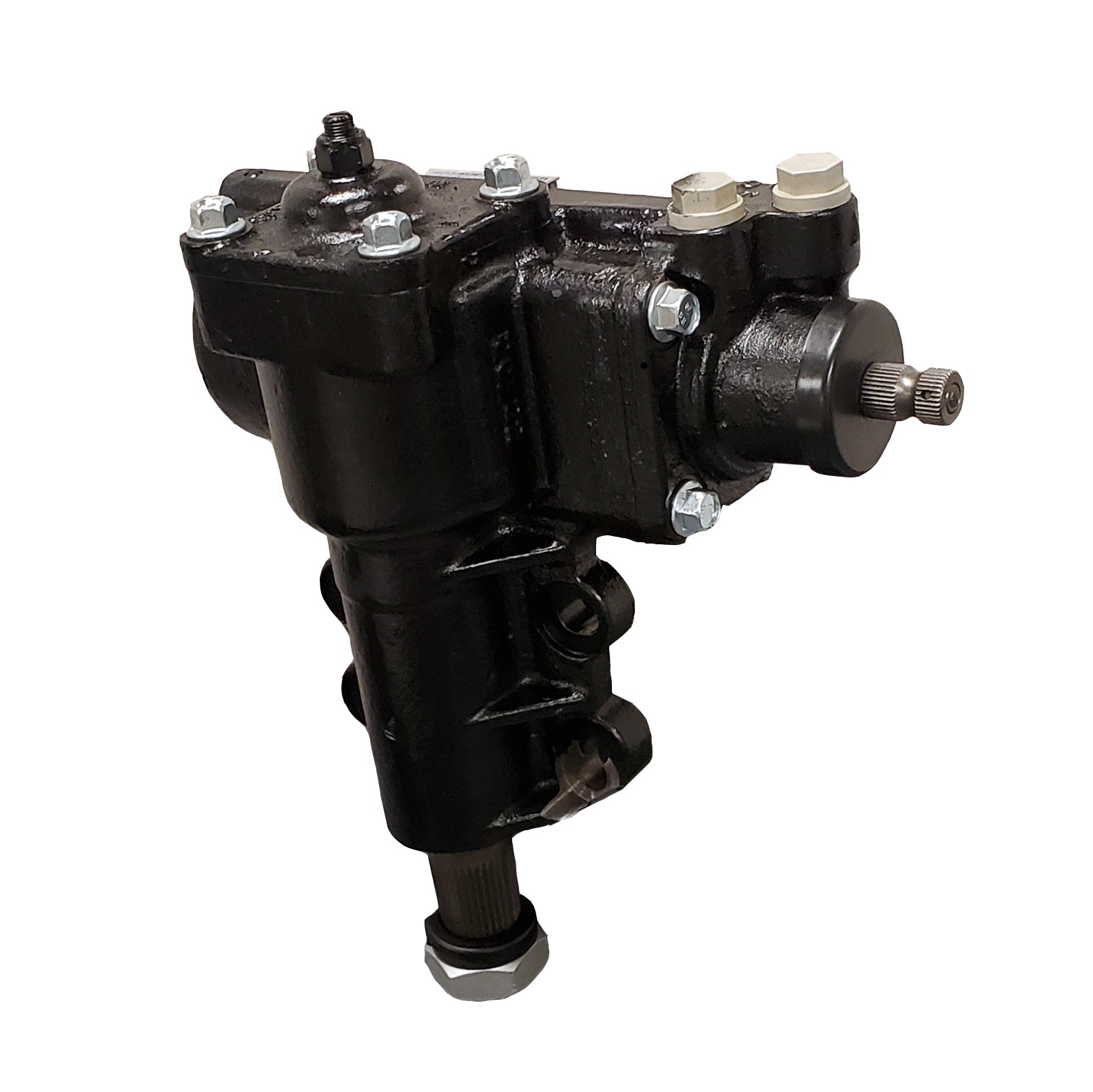

Borgeson - Power Steering Box - P/N: 800125 - Power Steering Conversion Box For 1966-1977 Ford Broncos. Borgeson Modern Power Steering Box With A 11/16 In.-36 Spline Input Shaft And A 14:1 Ratio.

Borgeson offers an integral power steering conversion for your 1966-1977 Bronco. The Borgeson conversion box is a modern integral power steering gearbox. This gearbox represents the latest generation of integral power steering gearbox technology with true modern power steering feel, feedback and a quicker 14:1 ratio. Borgeson has adapted this box to bolt directly to the factory mounting location and to fit the stock pitman arm. A new universal joint will be required for connection to the stock column and a new hose kit for connection to the pump of your choice.

• True modern power steering feel and feedback, quick steering ratio with fewer turns lock-to-lock. All new components, not remanufactured. Assembled and tested in the USA.

Attributes:

• Brand Name: Borgeson
• GTIN: 00843975017129
• CA Prop 65 Required: Y
• Color: Black
• Finish: Painted Black
• Housing Material: Cast Iron
• Inlet Port Diameter: 14
• Input Shaft Diameter: 0.687
• Input Shaft Spline Quantity: 36
• Outlet Port Diameter: 14
• Output Shaft Diameter: 1.25
• Output Shaft Spline Quantity: 32
• Splined Input Shaft: Yes
• Total Turns Lock To Lock: 4

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 14 x 6 inches
• Weight: 31.5 POUNDS
