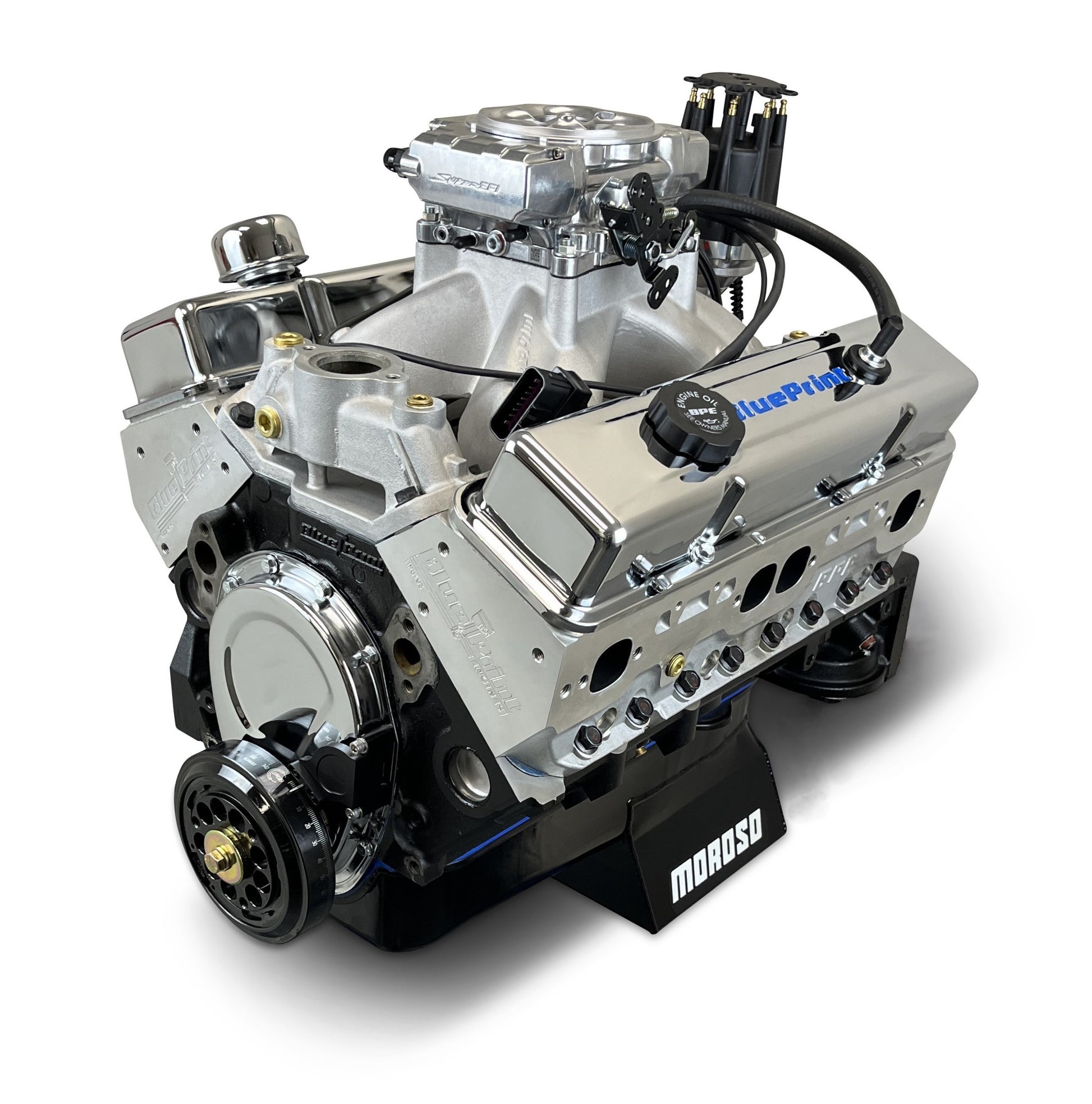

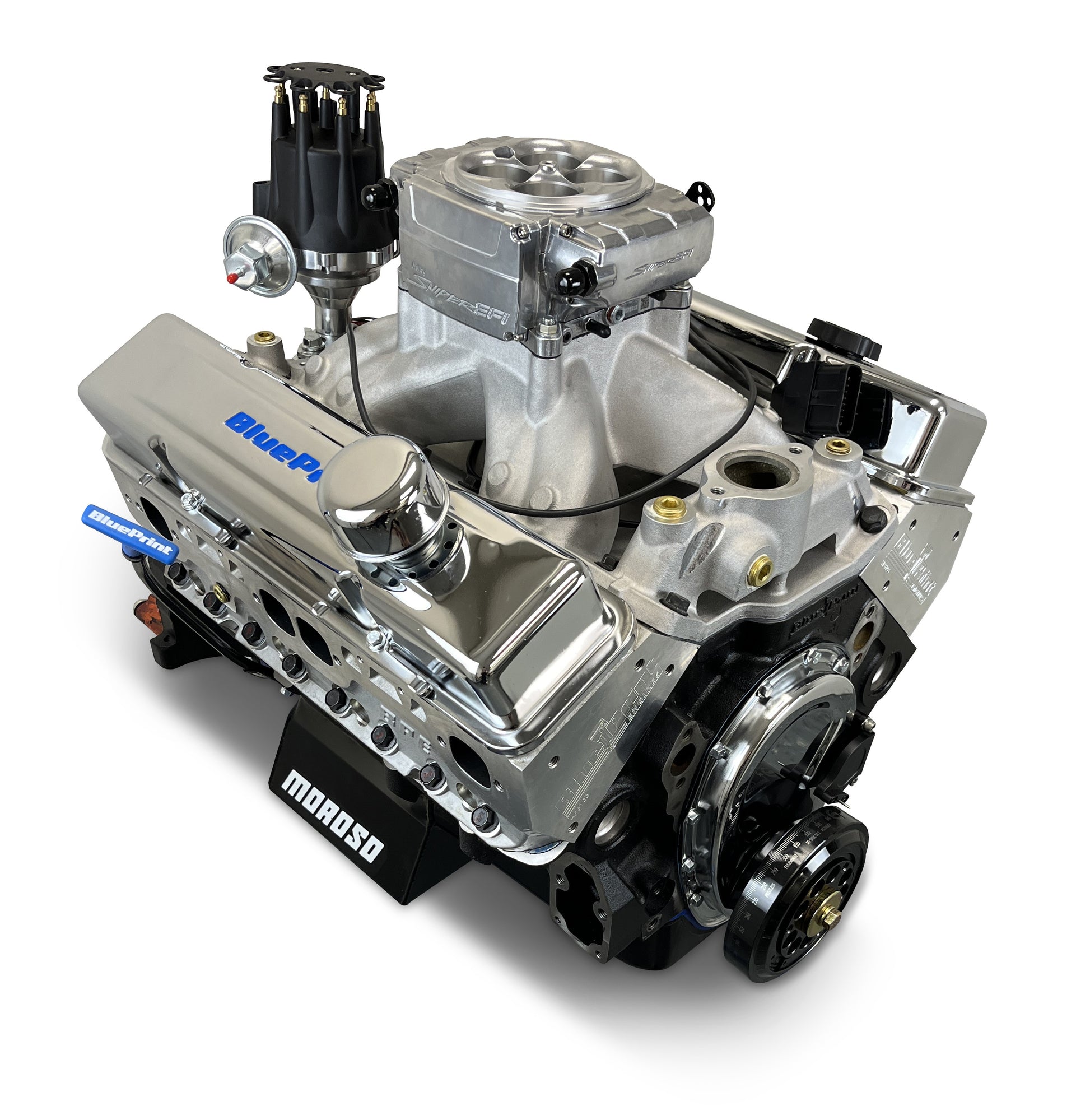

BluePrint Motorsports GM Small Block Compatible 396 C.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected

BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected

• BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753990969
• Air Cleaner Included: No
• Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.000" Bore
• Cam: Hydraulic Roller - .638 Intake / .622 Exhaust Lift - 251 Intake / 259 Exhaust Duration -@ .050-114 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.4:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Engines
• Engine Balance: Internally Balanced Front - Externally Balanced Rear
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: Holley Sniper 2 EFI - Self-Tuning Kit - Chrome
• Fuel Delivery Vendor: Holley
• Harmonic Balancer Included: No
• Horsepower: 530
• Intake Manifold Included: Yes
• Intake Manifold Type: Single Plane, Satin Aluminum
• Intake Manifold Vendor: BluePrint Engines
• Notes: BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied. This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke.
• Oil Pan Included: Yes-Rear Sump
• Pistons: Forged 4032 High RPM Endurance
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPP871006 - BPP399173 - BPP300116
• Recommended Harmonic Balancer: BPP350
• Recommended Octane Fuel: 100+ Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 2000-2400 RPM
• Rotating Assembly: Forged Crank - 3.875 in. Stroke and 6 in. Rods
• Spark Plug Wires Included: No
• Spark Plugs Included: No
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 480
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 30 x 38 inches
• Weight: 505 POUNDS
