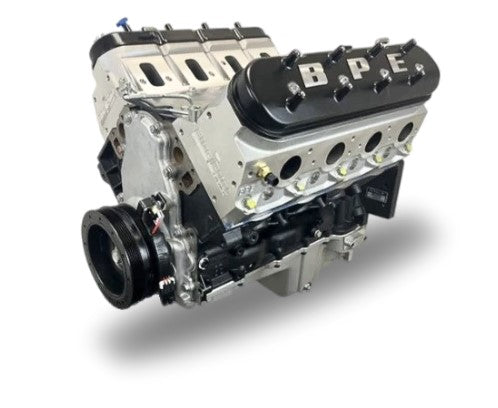

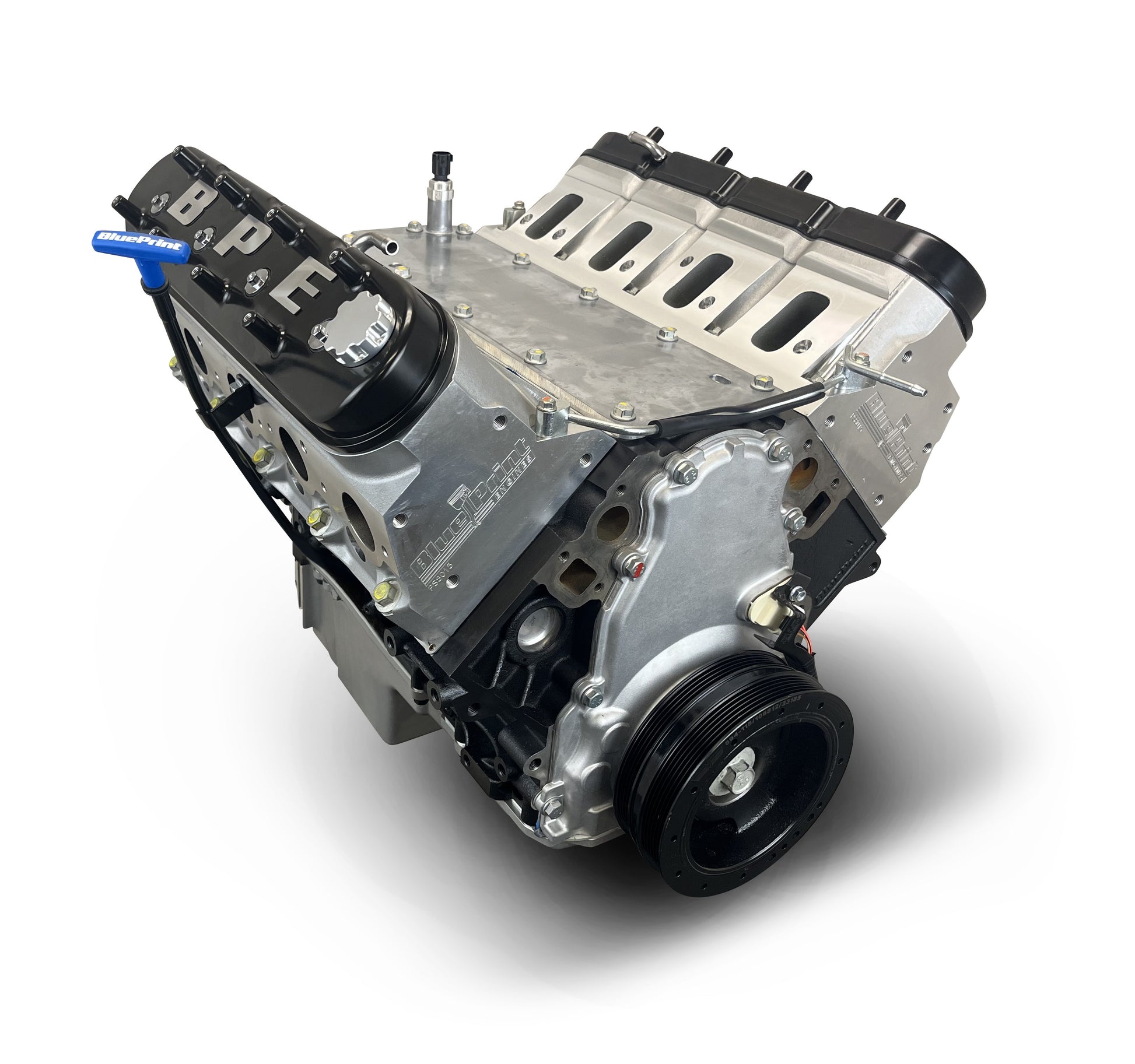

BluePrint Motorsports GM LS Compatible 427 C.i. Pro Series Engine - Power Adder - Long Block

BluePrint Motorsports GM LS Compatible 427 c.i. Pro Series Engine - Power Adder - Long Block

• BluePrint Motorsports GM Small Block Compatible 427 c.i. Engine

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753990983
• Air Cleaner Included: No
• Block Description: BluePrint Engines High Strength Cast Iron (LSX Style) Block - 6 Bolt Main - 4.070" Bore
• Cam: Hydraulic Roller Cam - 0.641 Intake / 0.641 Exhaust Lift - 236 Intake /256 exhaust duration @0.050" 115.5 LSA - Three Bolt Cam
• Carb/Fuel Injection Included: No
• Compression Ratio: 11:01
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: LS3 Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: NA
• Distributor Vendor: NA
• Engine Balance: Internally Balanced
• Firing Order: 1,8,7,2,6,5,4,3
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: NA
• Fuel Delivery Vendor: NA
• Harmonic Balancer Included: Yes
• Horsepower: 610
• Intake Manifold Included: Yes
• Intake Manifold Type: NA
• Intake Manifold Vendor: NA
• Oil Pan Included: Yes-Rear Sump
• Pistons: Mahle 2618 Custom Forged
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: Non Weighted BPP12654640 - BPPLS1611
• Recommended Harmonic Balancer: Non-Weighted
• Recommended Octane Fuel: 91 Octane
• Recommended Spark Plug: CCH9405
• Recommended Spark Plug Gap: .045 in.
• Recommended Stall Converter: NA
• Rotating Assembly: Forged Crank - 4.125 in. Stroke and Forged 6.125 in. Rods
• Spark Plug Wires Included: NA
• Spark Plugs Included: No
• Timing Cover Included: Yes
• Timing Requirements: NA
• Torque: 510
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 30 x 38 inches
• Weight: 590 POUNDS
