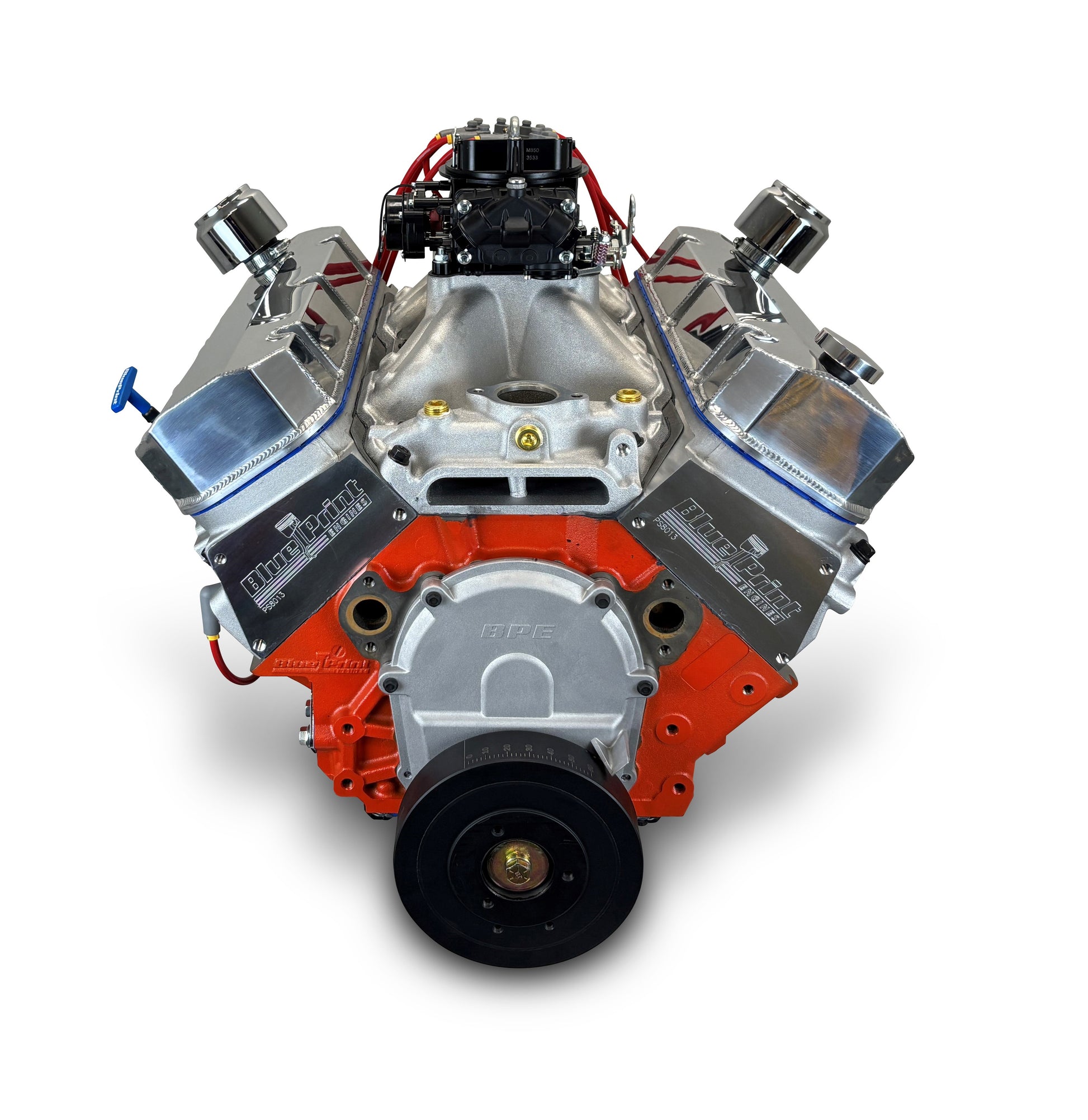

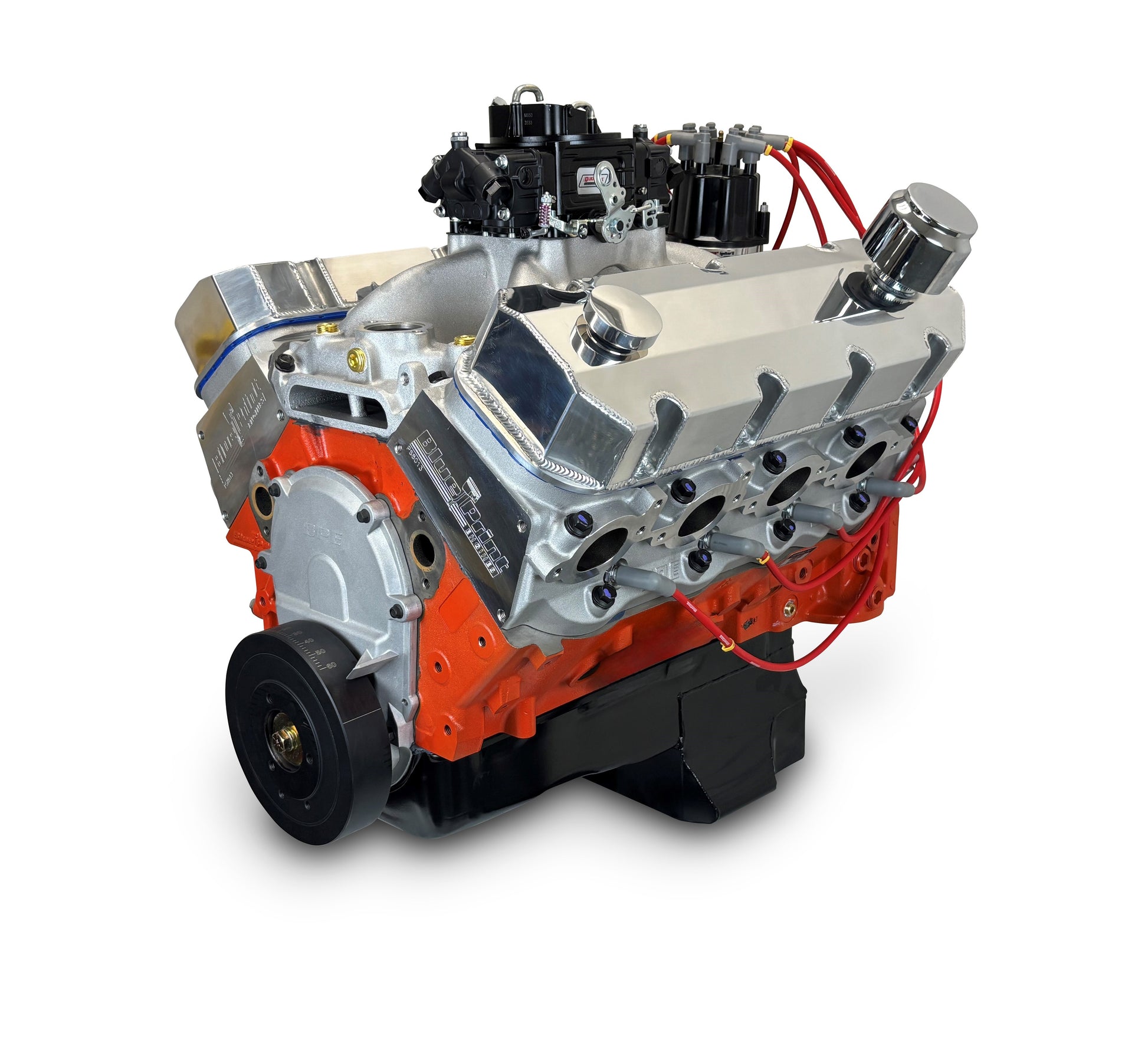

BluePrint Engines Marine Big Block Compatible 632 C.I. Base Dressed - Carbureted

BluePrint Engines 632 c.i. GM Marine Big Block Compatible - Base Dressed - Carburetor. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• 632CI GM Marine Big Block Compatible Base Dressed -Carb

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753744791
• Air Cleaner Included: No
• Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - Tall Deck - 4.600" Bore
• Cam: Hydraulic Roller - .647 Intake / .647 Exhaust Lift - 258 Intake / 266 Exhaust Duration - @.050-112 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.0:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Pro Billet
• Engine Balance: Internally Balanced
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: 1050cfm Gen III Marine Ultra Dominator Carburetor - Carbureted
• Fuel Delivery Vendor: Holley
• Harmonic Balancer Included: Yes
• Horsepower: 775
• Intake Manifold Included: Yes
• Intake Manifold Type: Single Plane, Satin Aluminum
• Intake Manifold Vendor: Edelbrock
• Oil Pan Included: Yes-Rear Sump
• Pistons: Forged
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: Non-Weighted
• Recommended Harmonic Balancer: BPP454I
• Recommended Octane Fuel: 91 Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: N/A
• Rotating Assembly: Forged Crank - 4.750 in. Stroke and 6.635 in. Rods
• Spark Plug Wires Included: Yes
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 800
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34 x 35 x 44 inches
• Weight: 679 POUNDS
