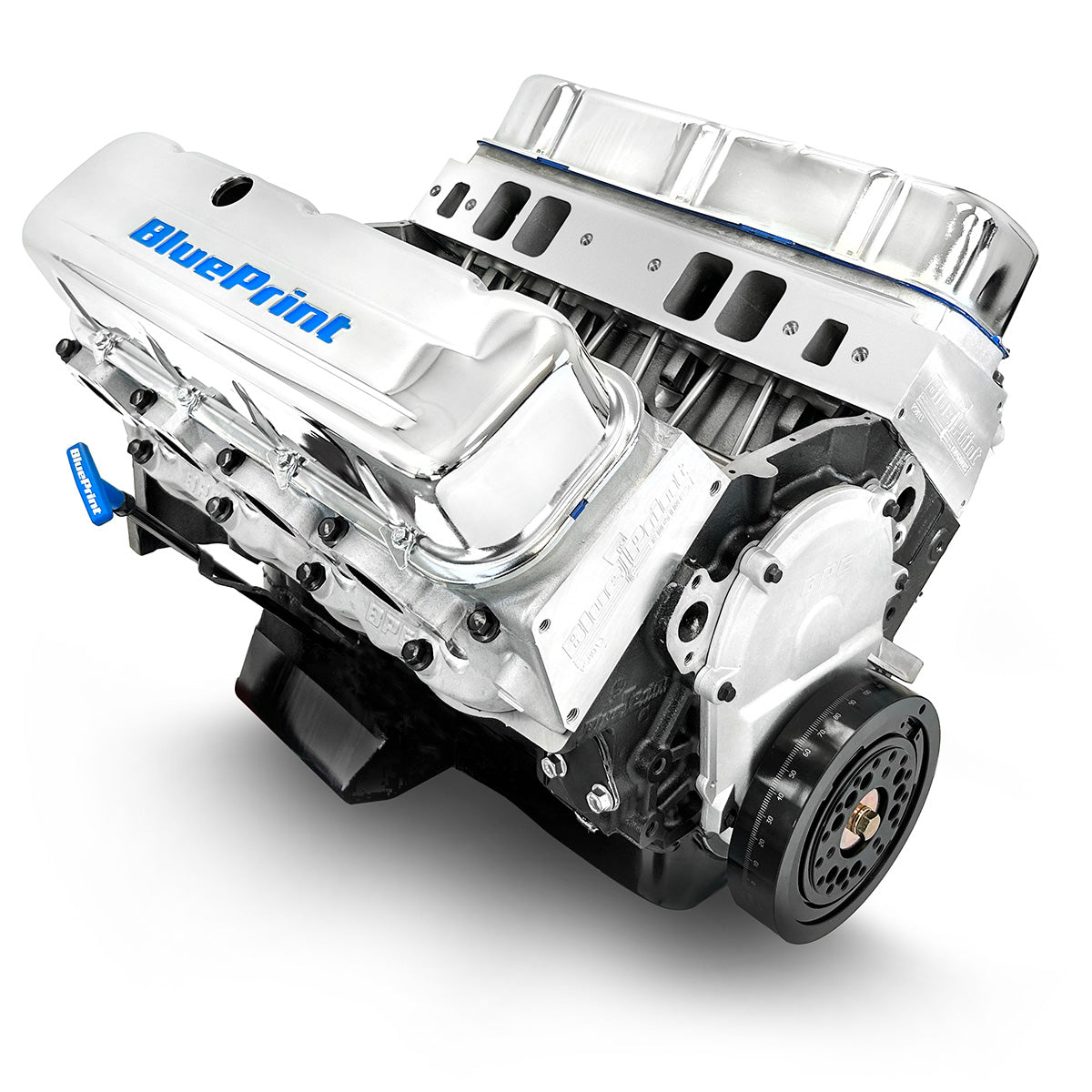

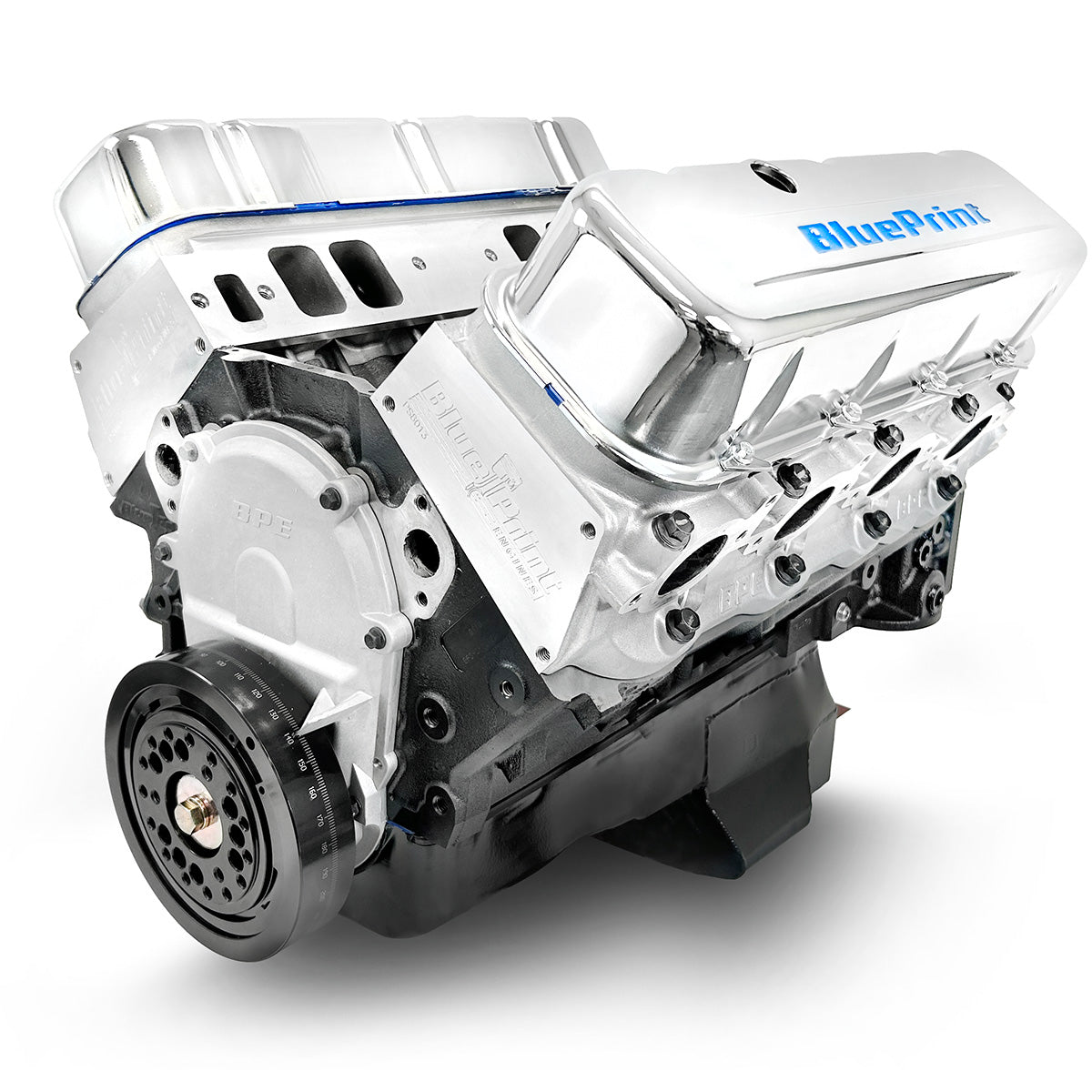

BluePrint Engines GM Small Block Compatible 496 C.I. Long Block - Power Adder

BluePrint Engines 496 c.i. GM Big Block Compatible - Long Block. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• 496CI GM Big Block Compatible Long Block

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753744036
• Air Cleaner Included: No
• Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - Standard Deck - 4.310" Bore
• Cam: Hydraulic Roller - .540 Intake / .560 Exhaust Lift - 242 Intake / 248 Exhaust Duration -@.050-114 LSA
• Carb/Fuel Injection Included: No
• Compression Ratio: 8.8:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: No
• Distributor Vendor: N/A
• Engine Balance: Internally Balanced
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: (Not Included) Recommended 850cfm Carburetor of Sniper II EFI
• Fuel Delivery Vendor: N/A
• Harmonic Balancer Included: No
• Horsepower: 561
• Intake Manifold Included: No
• Intake Manifold Type: N/A
• Intake Manifold Vendor: N/A
• Oil Pan Included: Yes-Rear Sump
• Pistons: Forged
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPP168T2P - BPP460130
• Recommended Harmonic Balancer: BPP454I
• Recommended Octane Fuel: 87+ Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 2000-2400 RPM
• Rotating Assembly: Forged Crank - 4.250 in. Stroke and 6.385 in. Rods
• Spark Plug Wires Included: No
• Spark Plugs Included: No
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 512
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36 x 34 x 51 inches
• Weight: 690 POUNDS
