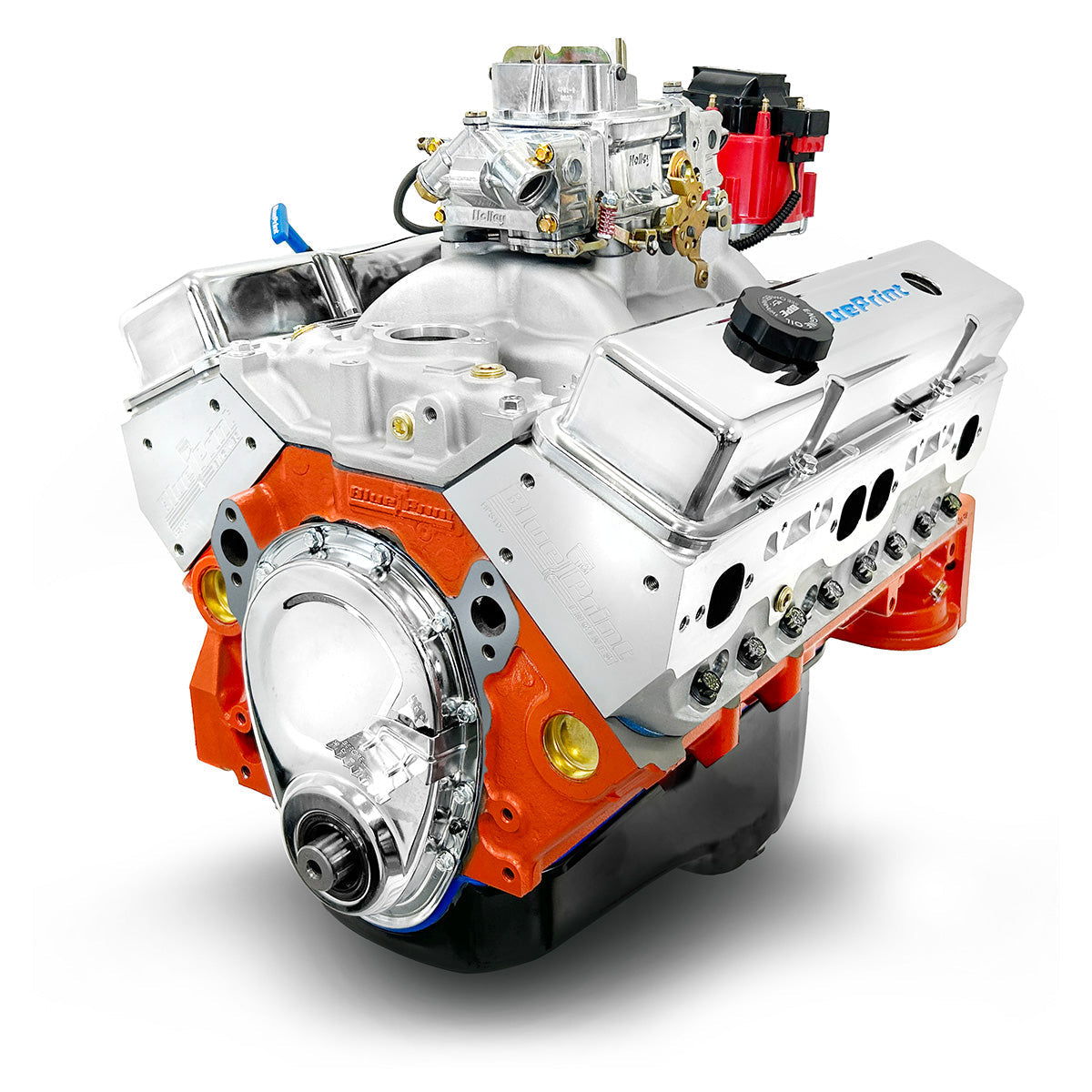

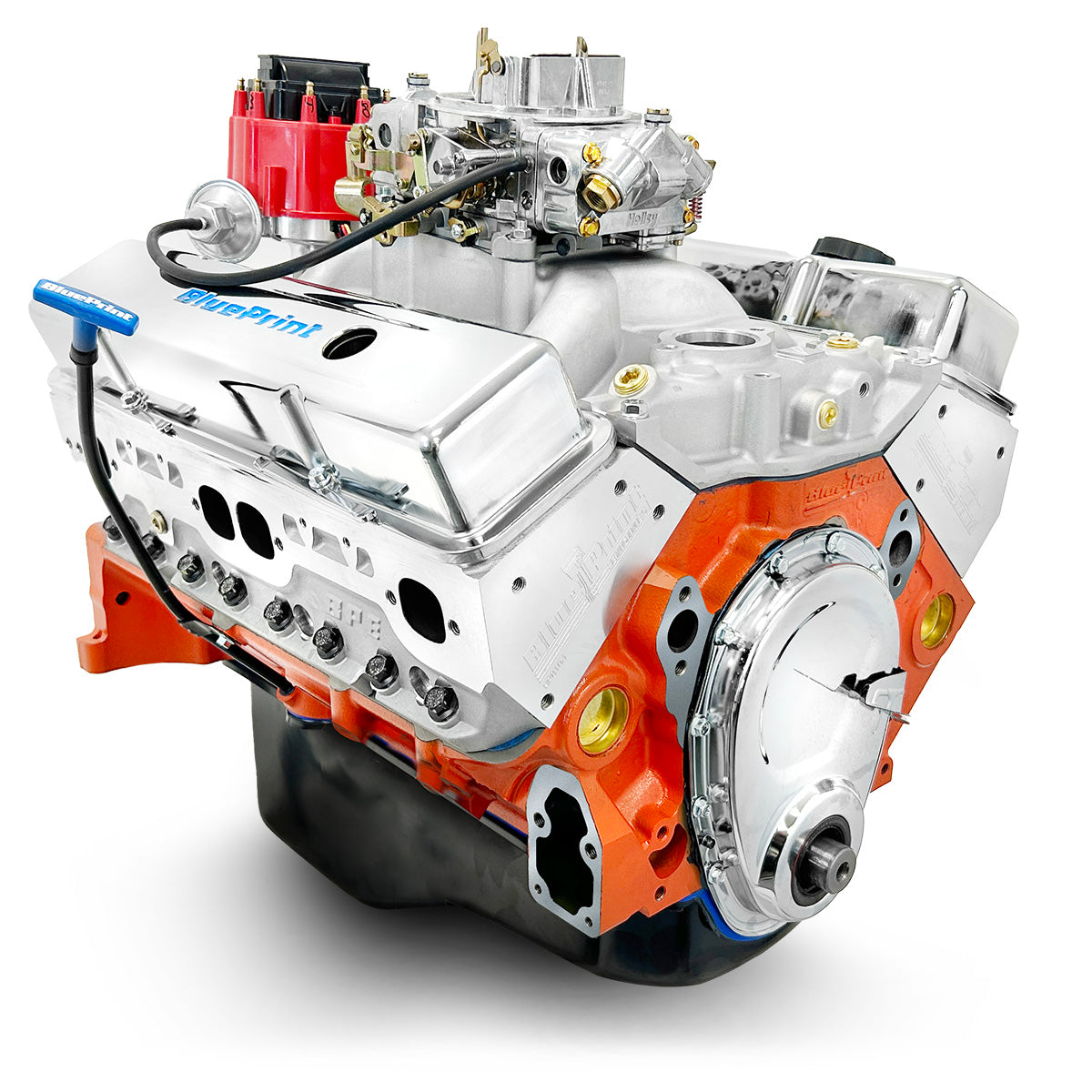

BluePrint Engines GM Small Block Compatible 400 C.I. Base Dressed - Carbureted

BluePrint Engines 400 c.i. GM Small Block Compatible - Base Dressed - Carbureted. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• 400CI GM Small Block Compatible Base Dressed -Carb

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753743961
• Air Cleaner Included: No
• Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.125" Bore
• Cam: Hydraulic Roller - .553 Intake / .576 Exhaust Lift - 236 Intake / 242 Exhaust Duration -@ .050-110 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.3:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Engines
• Engine Balance: Internally Balanced Front - Externally Balanced Rear
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: 850cfm Double Pumper Carburetor w/ Manual Choke - Carbureted
• Fuel Delivery Vendor: Holley
• Harmonic Balancer Included: No
• Horsepower: 500
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane, Satin Aluminum
• Intake Manifold Vendor: BluePrint Engines
• Oil Pan Included: Yes-Rear Sump
• Pistons: Forged
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPP871006 - BPP399173 - BPP300116
• Recommended Harmonic Balancer: BPP350
• Recommended Octane Fuel: 91+ Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 2400+ RPM
• Rotating Assembly: Forged Crank - 3.75 in. Stroke and 5.7 in. Rods
• Spark Plug Wires Included: No
• Spark Plugs Included: No
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 510
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 30 x 38 inches
• Weight: 505 POUNDS
