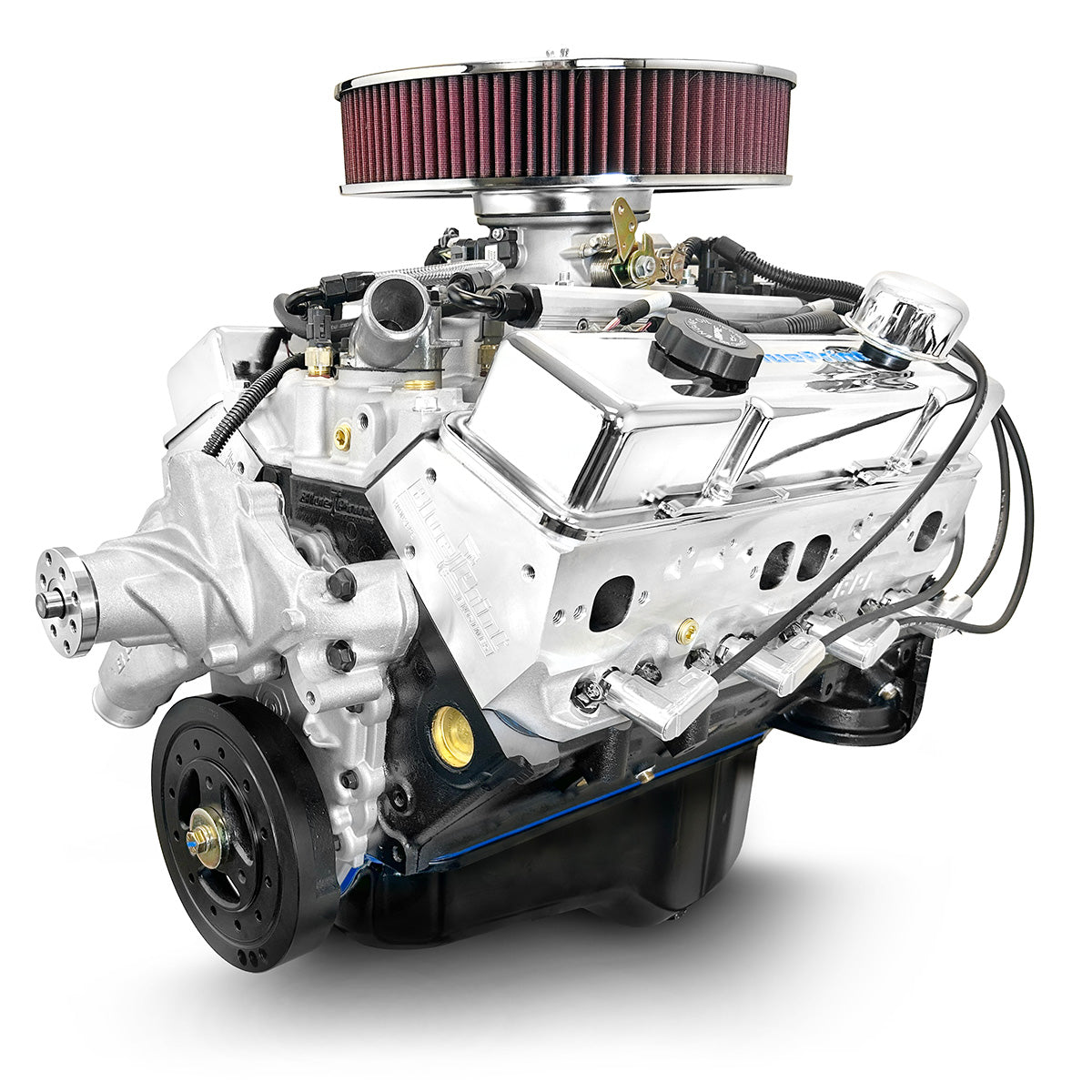

BluePrint Engines GM Small Block Compatible 383 C.I. Deluxe Dressed - Multi-Port Fuel Injected

BluePrint Engines 383 c.i. GM Small Block Compatible - Deluxe Dressed - Multi-Port Fuel Injected. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• 383CI GM Small Block Compatible Deluxe Dressed -MPFI

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753921147
• Air Cleaner Included: Yes
• Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main
• Cam: Hydraulic Roller - .544 Intake / .555 Exhaust Lift - 230 Intake / 236 Exhaust Duration -@ .050-110 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.0:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Engines
• Engine Balance: Externally Balanced
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: Multi-Port Fuel Injected
• Fuel Delivery Vendor: BluePrint Engines
• Harmonic Balancer Included: Yes
• Horsepower: 436
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane, Satin Aluminum
• Intake Manifold Vendor: BluePrint Engines
• Oil Pan Included: Yes-Rear Sump
• Pistons: Hypereutectic
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPP871006 - BPP399173 - BPP300116
• Recommended Harmonic Balancer: BPP400L
• Recommended Octane Fuel: 91+ Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 2000-2400 RPM
• Rotating Assembly: Cast Crank - 3.75 in. Stroke and 5.7 in. Rods - This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
• Spark Plug Wires Included: Yes
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: ECM Supplied with Calibration
• Torque: 443
• Valve Covers Included: Yes
• Water Pump Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 30 x 38 inches
• Weight: 550 POUNDS
