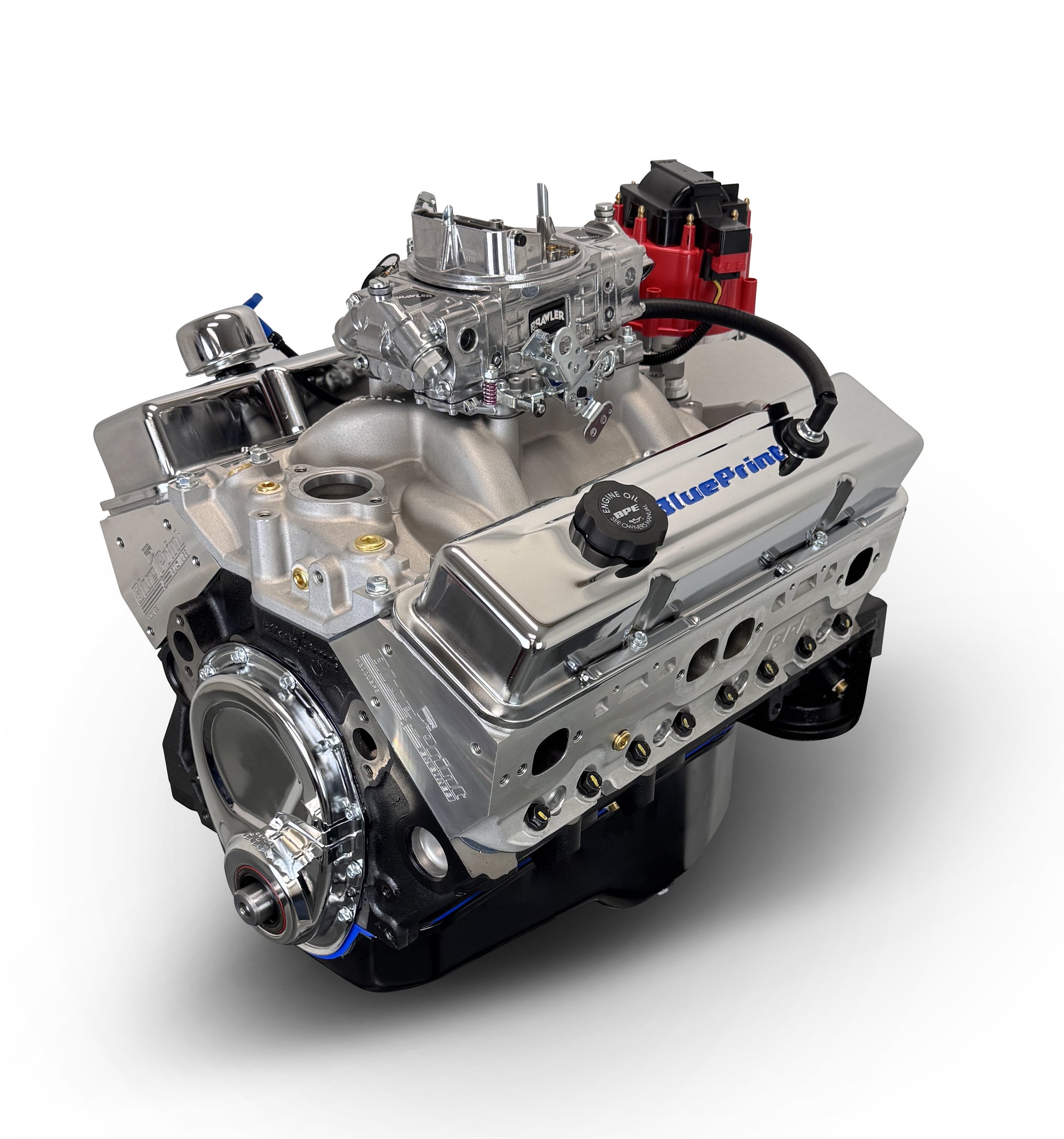

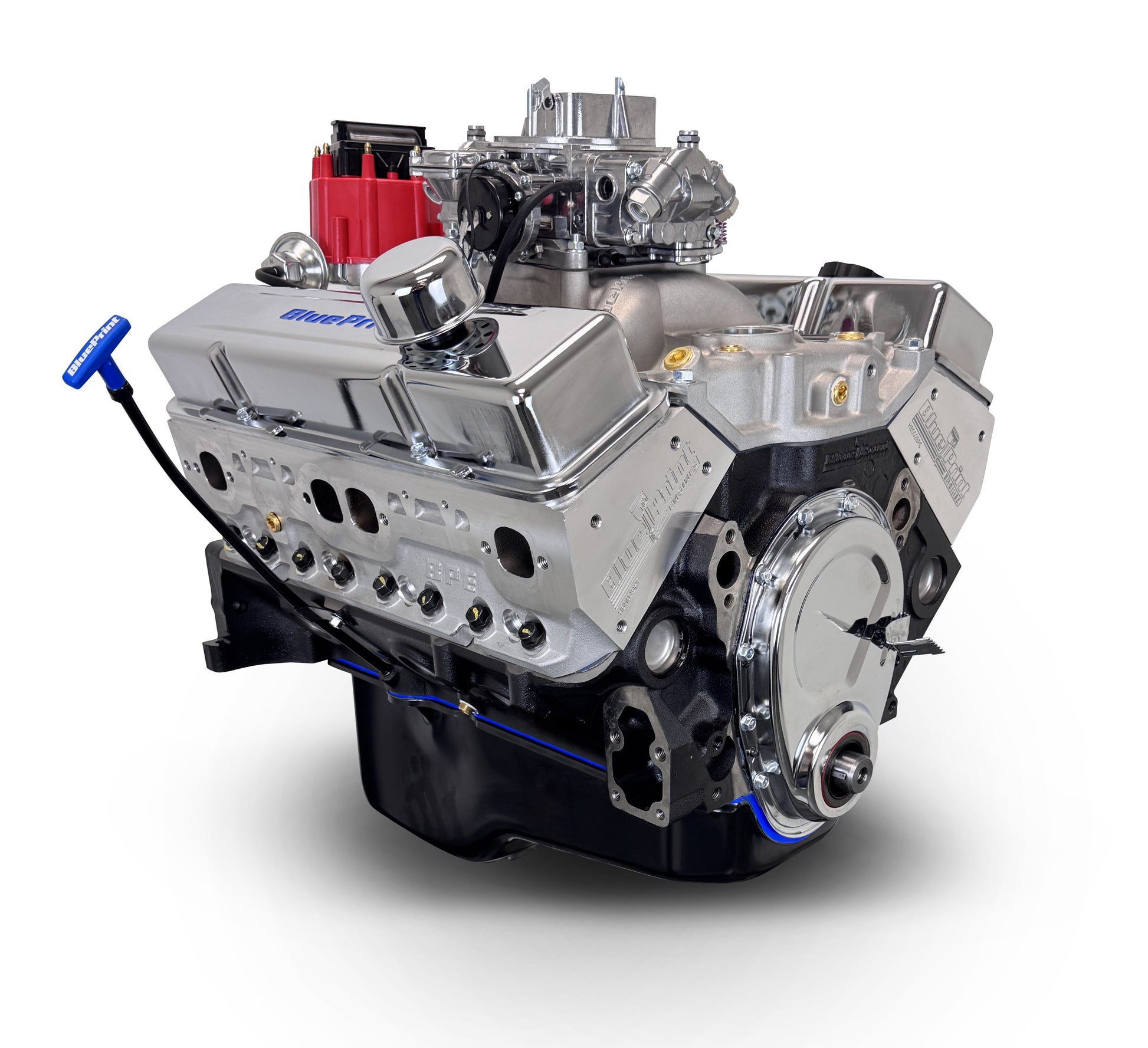

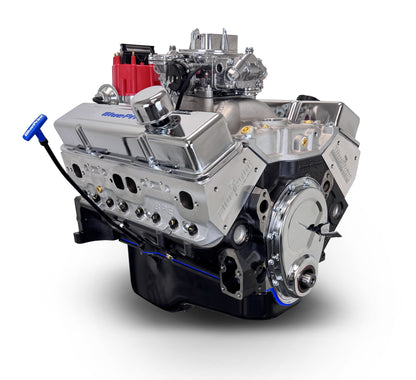

BluePrint Engines GM Small Block Compatible 350 C.I. Base Dressed - Carbureted

BluePrint Engines 350 c.i. GM Small Block Compatible - Base Dressed - Carbureted. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• 350CI GM Small Block Compatible Base Dressed -Carb

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753841179
• Air Cleaner Included: No
• Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.000" Bore
• Cam: Hydraulic Roller - .495 Intake / .502 Exhaust Lift - 220 Intake / 224 Exhaust Duration -@ .050-114 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 9.2:1
• Crankshaft Vendor: BluePrint or GM, Machined and Balanced by BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Engines
• Engine Balance: Internally Balanced Front - Externally Balanced Rear
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke - Carbureted
• Fuel Delivery Vendor: Holley
• Harmonic Balancer Included: No
• Horsepower: 390
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane, Satin Aluminum
• Intake Manifold Vendor: BluePrint Engines
• Oil Pan Included: Yes-Rear Sump
• Pistons: Hypereutectic
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPP871006 - BPP399173 - BPP300116
• Recommended Harmonic Balancer: BPP350
• Recommended Octane Fuel: 87+ Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 2000-2400 RPM
• Rotating Assembly: Cast Crank - 3.480 in. Stroke and 5.7 in. Rods
• Spark Plug Wires Included: No
• Spark Plugs Included: No
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 410
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 30 x 38 inches
• Weight: 490 POUNDS
