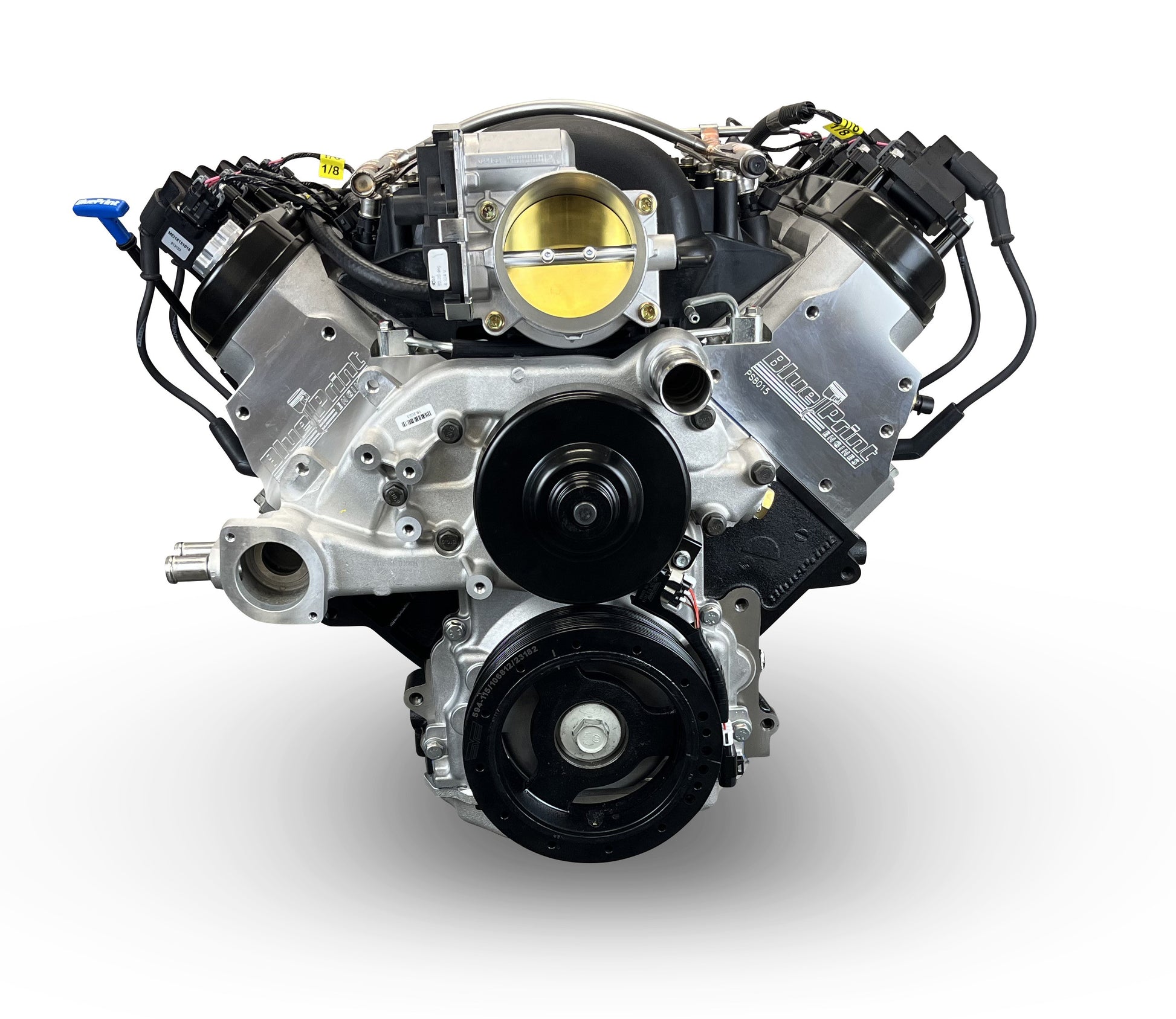

BluePrint Engines GM LS Compatible 376 C.i. Engine And TKX Manual Transmission - Standard Edition Builder Series - Holley Terminator X EFI System

BluePrint Engines 376 c.i. GM LS Compatible Builder Series - Standard Edition - Fuel Injected - TKX Manual Transmission. Includes 30-Month / 50,000 warranty & Dyno Tested

• Standard Edition GM LS Compatible Builder Series - EFI

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753986535
• Air Cleaner Included: No
• Block Description: BluePrint Engines High Strength Cast Iron (LSX Style) Block - 6 Bolt Main - 4.0662" Bore
• Cam: Hydraulic Roller - .612 Intake / .585 Exhaust Lift - 225 Intake / 238 Exhaust Duration -@.050-113 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.7:1
• Crankshaft Vendor: BluePrint or GM, Machined and Balanced by BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: LS3 Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Coil Packs
• Distributor Vendor: BluePrint Engines
• Engine Balance: Internally Balanced
• Firing Order: 1,8,7,2,6,5,4,3
• Flexplate/Flywheel Included: Yes
• Fuel Delivery Type: Fuel Injected
• Fuel Delivery Vendor: Holley Terminator EFI
• Fuel Pump Included: No
• Harmonic Balancer Included: Yes
• Horsepower: 530
• Intake Manifold Included: Yes
• Intake Manifold Type: LS3 Intake
• Intake Manifold Vendor: BluePrint Engines
• Oil Pan Included: Yes-Rear Sump
• Pistons: Hypereutectic
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: Non Weighted BPP12654640 - BPPLS1611
• Recommended Harmonic Balancer: Non-Weighted
• Recommended Octane Fuel: 91+ Octane
• Recommended Spark Plug: Champion 3015 / RS14PMC4
• Recommended Spark Plug Gap: .040 in.
• Recommended Stall Converter: 2200+ RPM
• Rotating Assembly: Nodular Iron Crank - 3.622 in. Stroke and Forged 6.125 in. Rods
• Spark Plug Wires Included: Coil Packs
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: ECM Supplied with Calibration
• Torque: 495
• Transmission Model: TKX
• Transmission Type: Manual
• Valve Covers Included: Yes
• Water Pump Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 73 x 32 x 46 inches
• Weight: 1040 POUNDS
