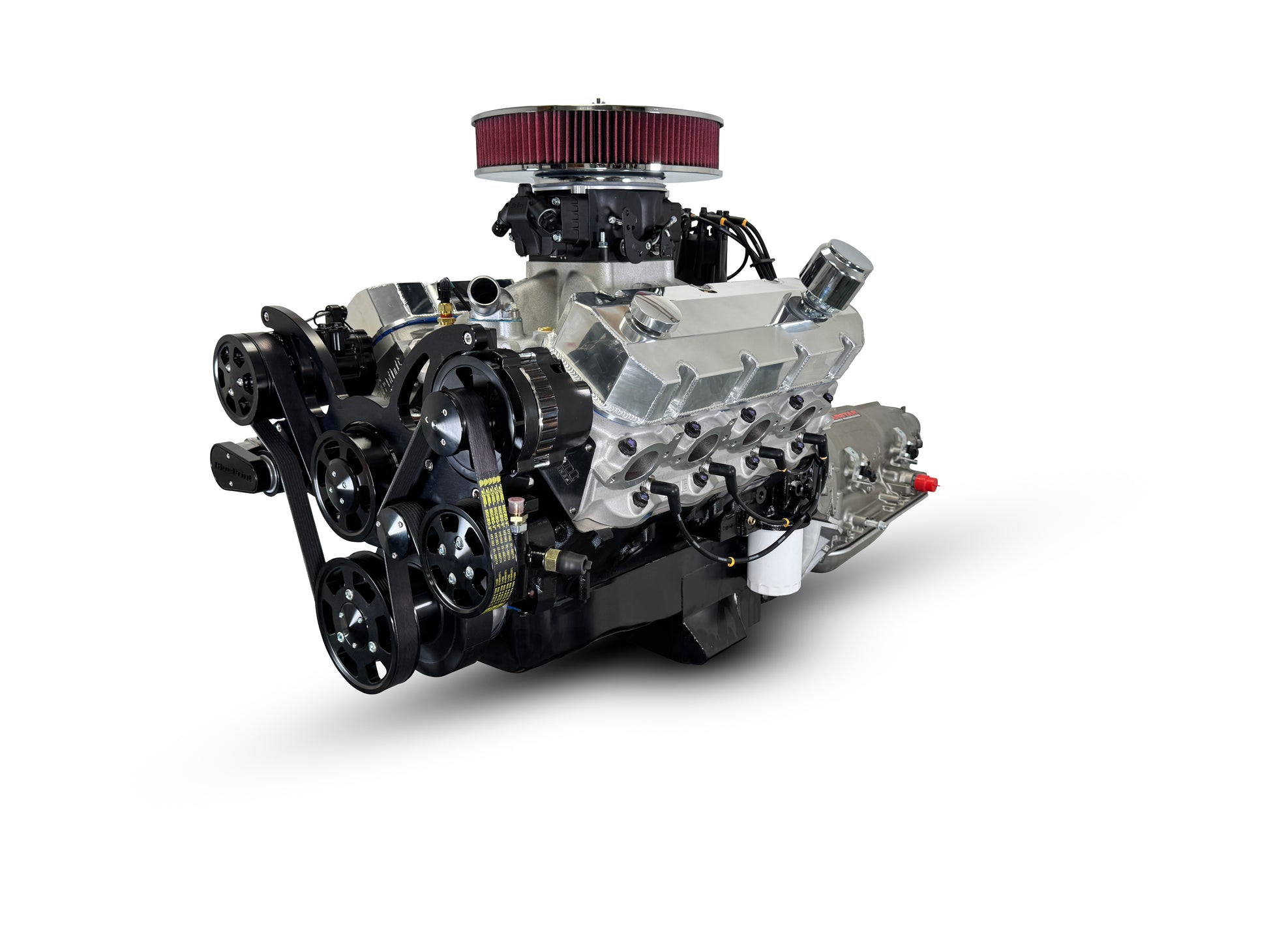

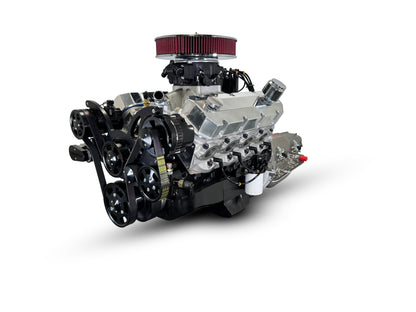

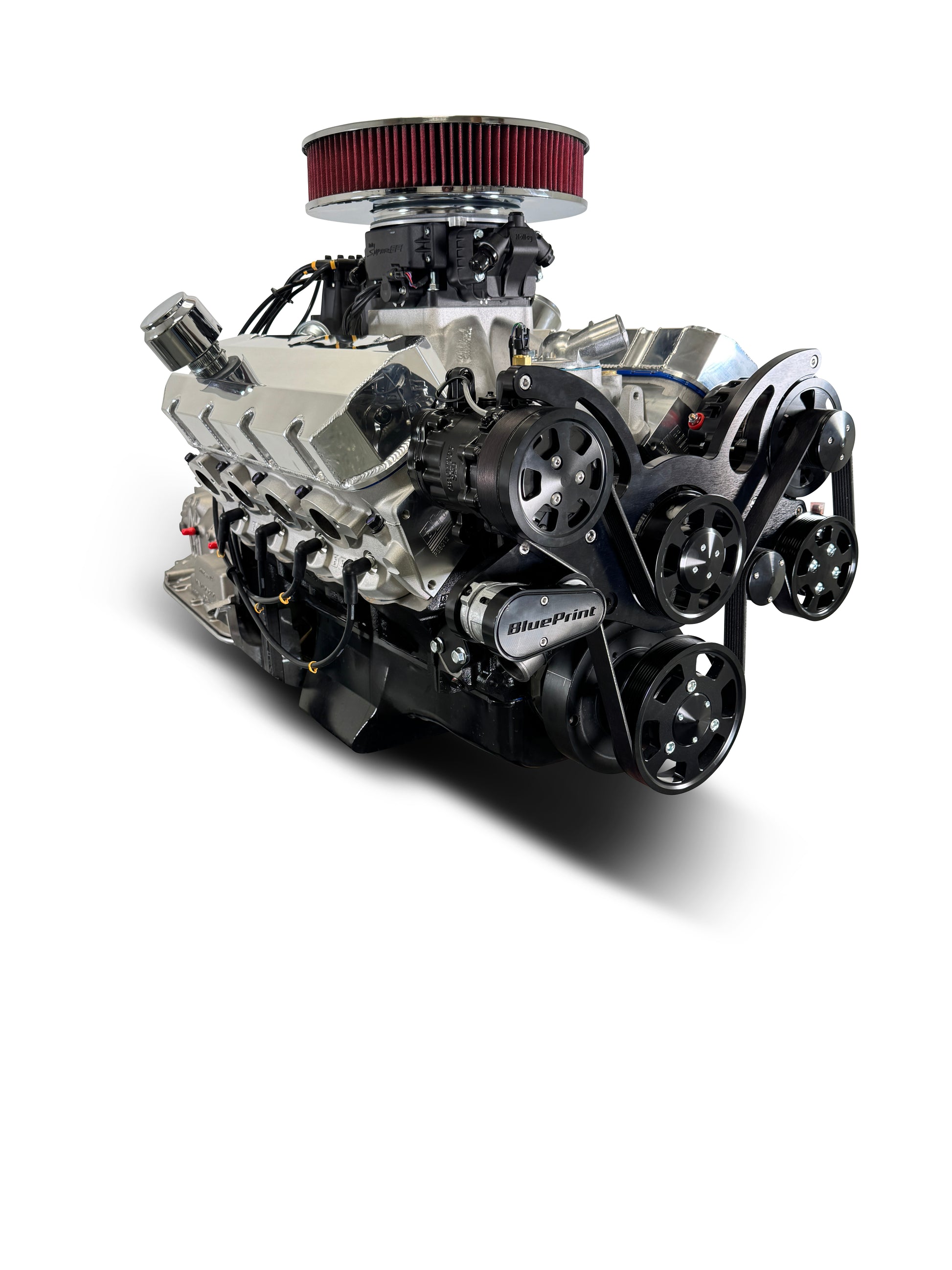

BluePrint Engines GM Big Block Compatible 598 C.I. Standard Edition - 4L80E Automatic Transmission - Black Pulley Kit - Fuel Injected

BluePrint Engines 598 c.i. GM Compatible Builder Series - Standard Edition - Fuel Injected - 4L80E Automatic Transmission - Black Pulley Kit. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• Standard Edition GM Compatible Builder Series - EFI - Polished Pulley Kit

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753983404
• Air Cleaner Included: Yes
• Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.600" Bore
• Cam: Hydraulic Roller - .647 Intake / .647 Exhaust Lift - 258 Intake / 266 Exhaust Duration -@.050-112 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.5:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Pro Billet
• Engine Balance: Internally Balanced
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: Yes
• Fuel Delivery Type: Sniper Stealth 4500 Power Adder -Black - Fuel Injected
• Fuel Delivery Vendor: Holley
• Fuel Pump Included: Yes
• Harmonic Balancer Included: Yes
• Horsepower: 741
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane, Satin Aluminum
• Intake Manifold Vendor: BluePrint Engines
• Oil Pan Included: Yes-Rear Sump
• Pistons: Forged
• Pulley Kit Included: Yes - Black - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor.
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPP168T2P
• Recommended Harmonic Balancer: BPP454I
• Recommended Octane Fuel: 91+ Octane
• Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 2500-2800 RPM
• Rotating Assembly: Forged Crank - 4.500 in. Stroke and 6.480 in. Rods
• Spark Plug Wires Included: Yes
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 703
• Transmission Model: 4L80E
• Transmission Type: Automatic
• Valve Covers Included: Yes
• Water Pump Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 73 x 32 x 46 inches
• Weight: 1135 POUNDS
