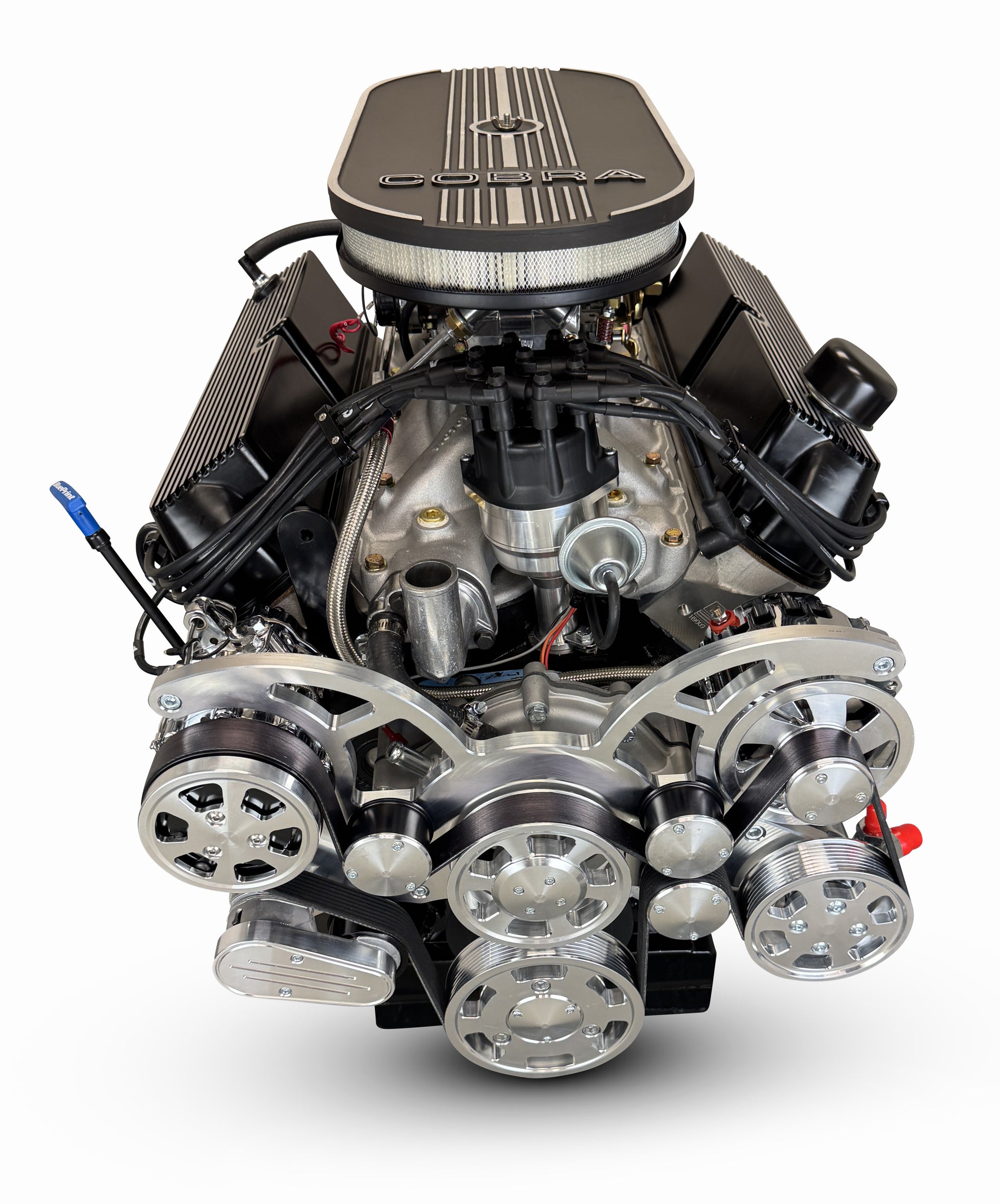

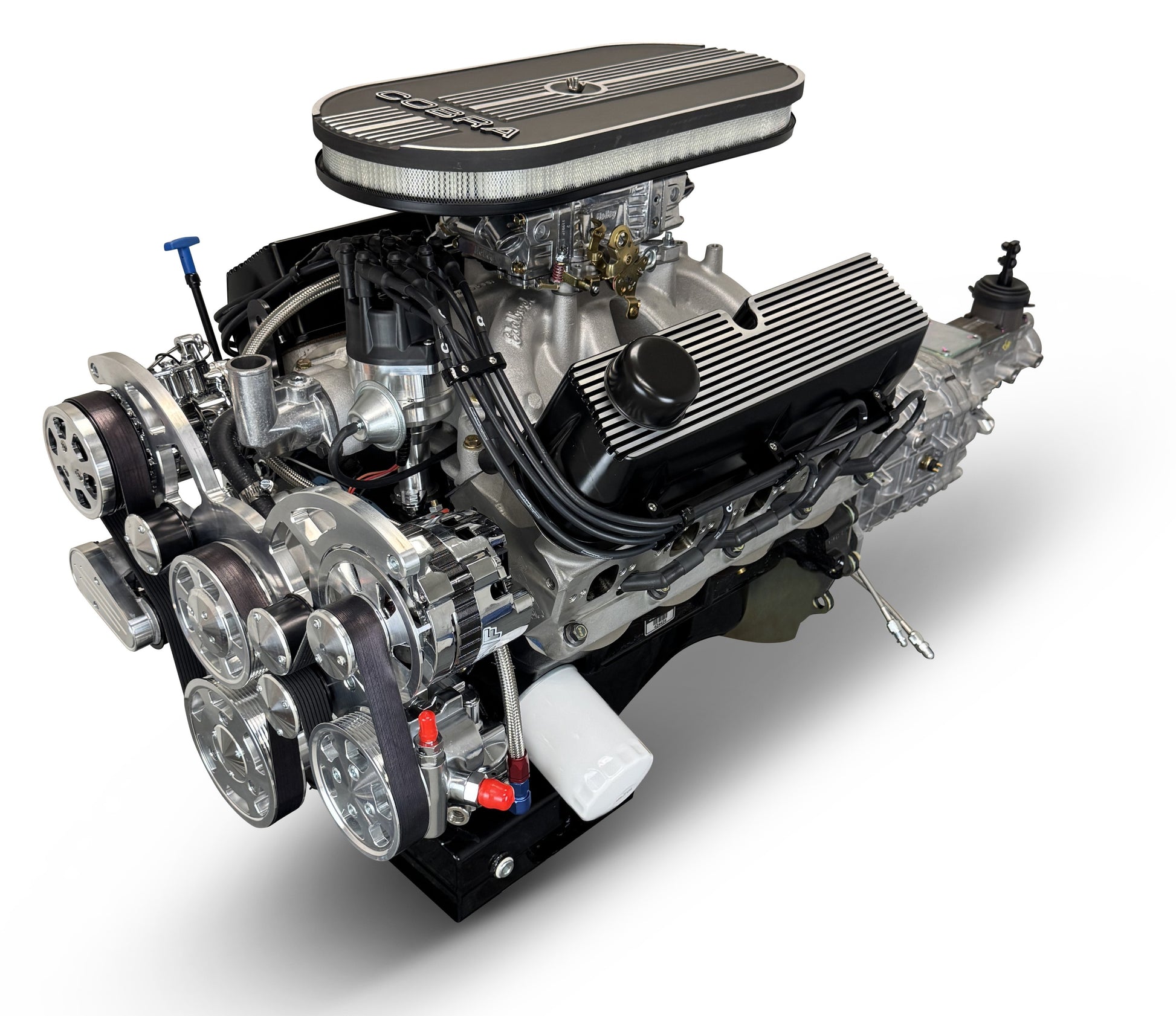

BluePrint Engines Ford Small Block Compatible 427 C.I. Cobra Edition - TKX Manual Transmission - Polished Pulley Kit - Carbureted

BluePrint Engines 427 c.i. Ford Compatible Builder Series - Cobra Edition - Carburetor - TKX Manual Transmission - Polished Pulley Kit. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• Cobra Edition Ford Compatible Builders Series - Carb - Polished Pulley Kit

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753983480
• Air Cleaner Included: Yes
• Block Description: BluePrint Engines' High Strength Cast Iron Block with 4 Bolt Main - 4.125" Bore
• Cam: Hydraulic Roller - .608 Intake / .608 Exhaust Lift - 248 Intake / 258 Exhaust Duration -@.050-114 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.0:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Pro Billet
• Engine Balance: Internally Balanced
• Firing Order: 1,3,7,2,6,5,4,8
• Flexplate/Flywheel Included: Yes
• Fuel Delivery Type: 870cfm Street Avenger Carburetor w/ Electric Choke - Carbureted
• Fuel Delivery Vendor: Holley
• Fuel Pump Included: Yes
• Harmonic Balancer Included: Yes
• Horsepower: 541
• Intake Manifold Included: Yes
• Intake Manifold Type: Single Plane, Satin Aluminum
• Intake Manifold Vendor: BluePrint Engines
• Oil Pan Included: Yes-Front Sump
• Pistons: Forged
• Pulley Kit Included: Yes - Polished - Driver Side Standard Rotation Water Pump, Type II Power Steering Pump with Remote Reservoir, 140amp 1-Wire Alternator, and Peanut Style Air Conditioning Compressor.
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPPF157T28
• Recommended Harmonic Balancer: BPP28
• Recommended Octane Fuel: 91+ Octane
• Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 2200+ RPM
• Rotating Assembly: Forged Crank - 4.000 in. Stroke and 6.250 in. Rods
• Spark Plug Wires Included: Yes
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 519
• Transmission Model: TKX
• Transmission Type: Manual
• Valve Covers Included: Yes
• Water Pump Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 73 x 32 x 46 inches
• Weight: 990 POUNDS
