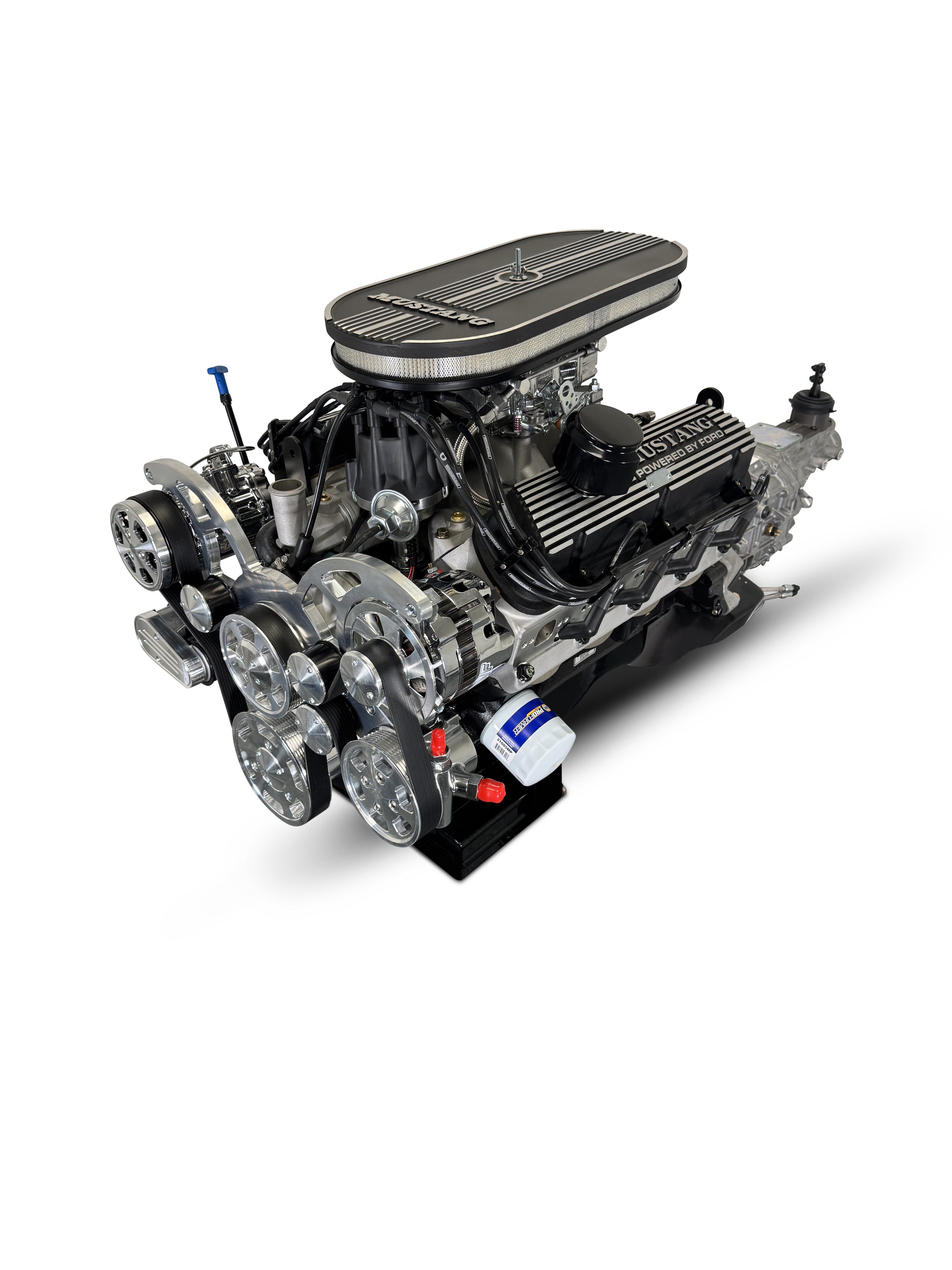

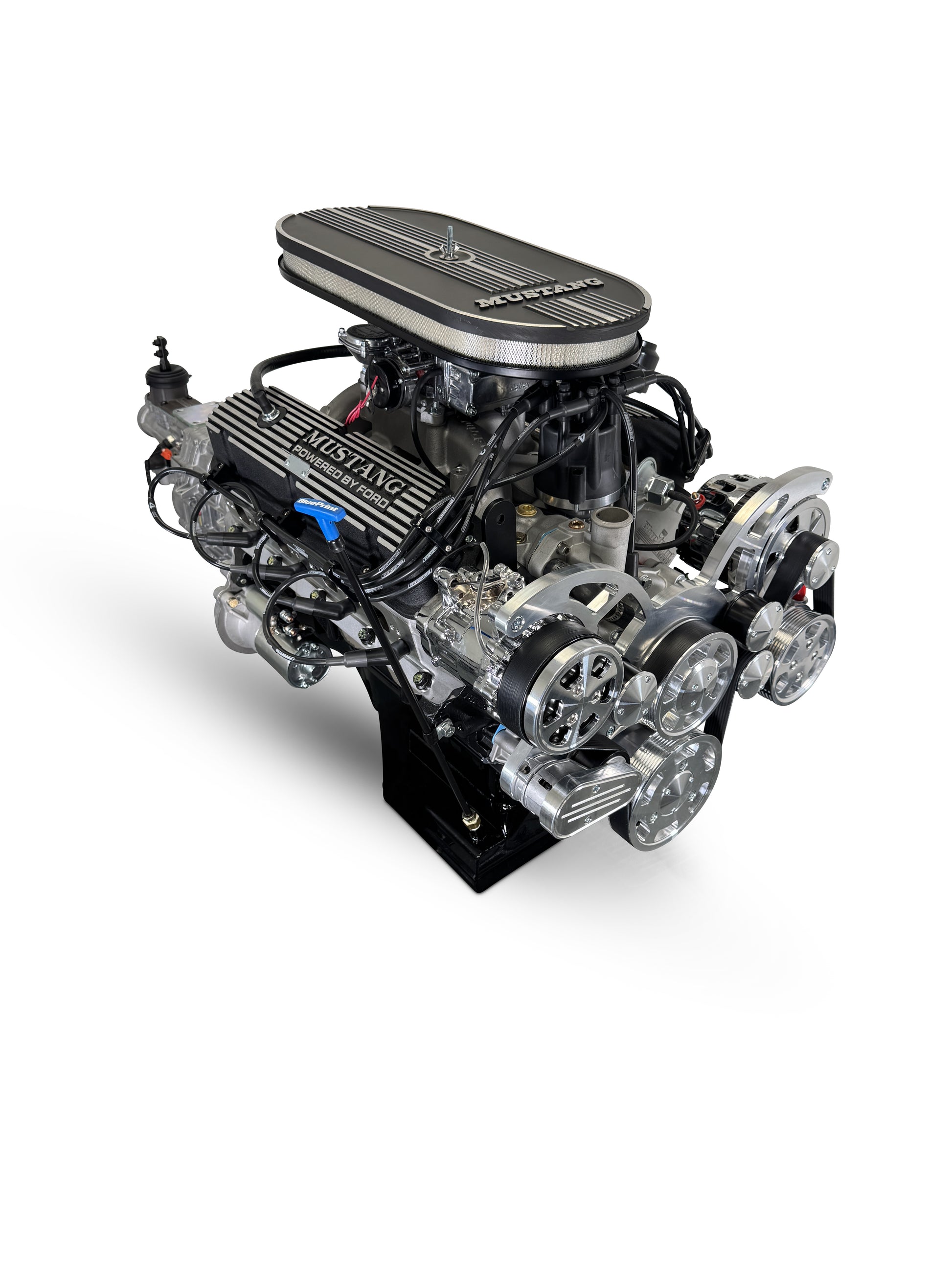

BluePrint Engines Ford Small Block Compatible 347 C.I. Standard Edition - TKX Manual Transmission - Polished Pulley Kit - Carbureted

BluePrint Engines 347 c.i. Ford Compatible Builder Series - Mustang Edition - Carburetor - TKX Manual Transmission - Polished Pulley Kit. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• Standard Edition Ford Compatible - Carb - Polished Kit

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753983107
• Air Cleaner Included: Yes
• Bore Diameter: 4.000
• Camshaft Specs: .543 Intake / .554 Exhaust Lift - 218 Intake / 226 Exhaust Duration -@.050-112 LSA
• Camshaft Type: Hydraulic Roller
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 10.0:1
• Connecting Rod Beam Style: I Beam
• Connecting Rod Length: 5.400
• Crankshaft Material: Cast Iron
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Material: Aluminum
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads Included: Yes - HP9009
• Distributor Included: Yes - BPP3023BK
• Distributor Vendor: BluePrint Pro Billet
• Engine Balance: Externally Balanced - 28oz
• Engine Block Material: Iron
• Engine Stroke: 3.400
• Engine Water Pump Included: Yes
• Firing Order: 1,3,7,2,6,5,4,8
• Flexplate Included: No
• Flywheel Included: Yes
• Fuel Delivery System: Street Warrior 600CFM Vacuum Secondary w/Electric Choke
• Fuel Delivery Type: Carbureted
• Fuel Delivery Vendor: Holley
• Fuel Pump Included: Yes
• Harmonic Balancer Included: Yes
• Horsepower: 415
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane Aluminum Intake Manifold - Square Bore - BPP302INT
• Intake Manifold Vendor: BluePrint Engines
• Main Bearing Cap Bolt Quantity: 4-Bolt Main
• Oil Pan Included: Yes
• Oil Pan Type: Front Sump
• Oil Pump Included: Yes
• Piston Style: Dish
• Piston Valve Reliefs Volume: 9cc
• Pistons Material: Forged
• Pulley Kit Included: Yes - Polished - BPP302FDACPS4
• Quantity: EA
• Rear Main Seal Type: One-Piece
• Recommended Flexplate/Flywheel: BPPF157T28
• Recommended Harmonic Balancer: BPP28
• Recommended Octane Fuel: 91+ Octane
• Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035
• Recommended Stall Converter: 2000-2400 RPM
• Spark Plug Wires Included: Yes
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 415
• Transmission Model: TKX
• Transmission Type: Manual
• Valve Covers Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 73 x 32 x 46 inches
• Weight: 932 POUNDS
