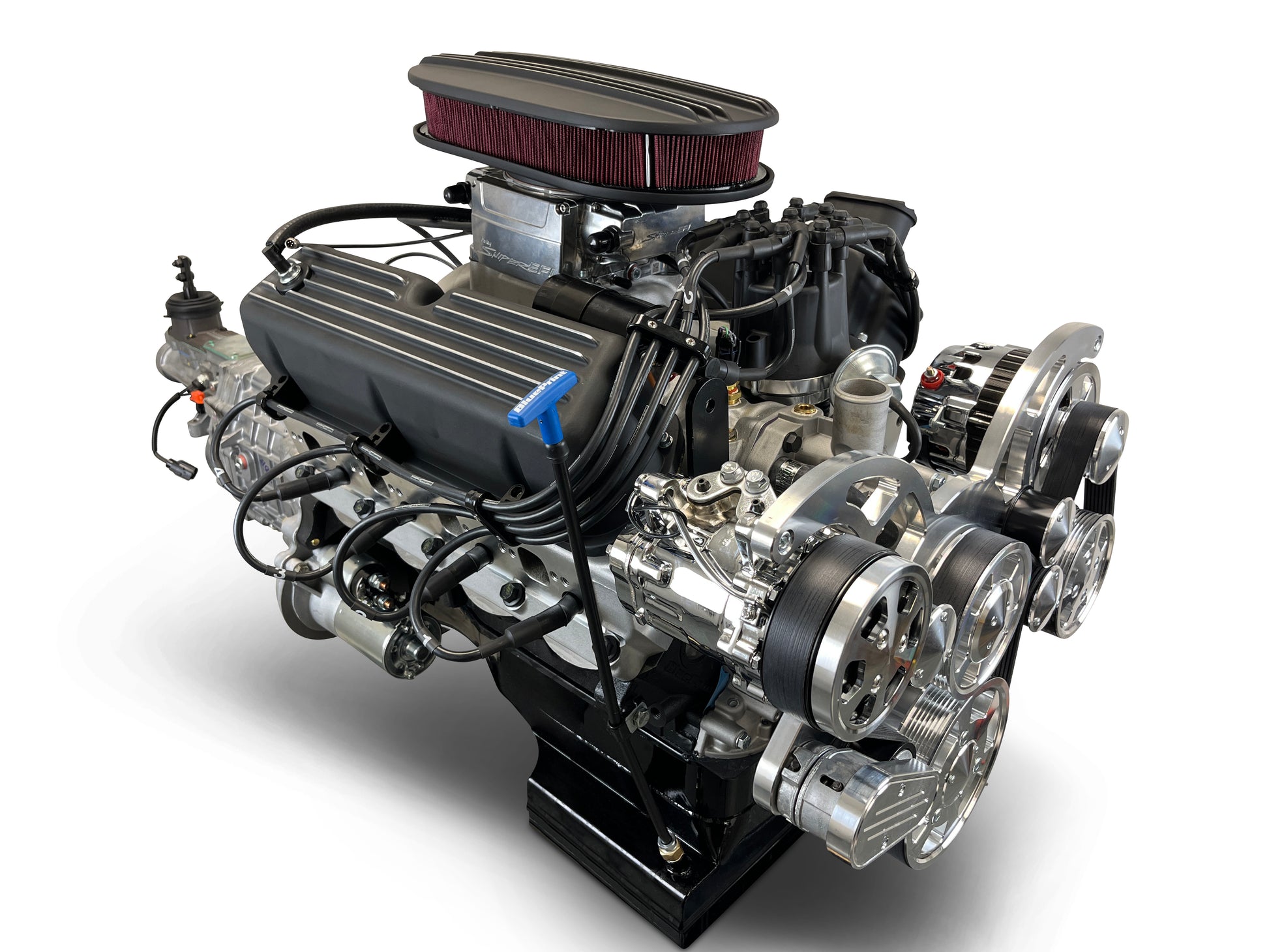

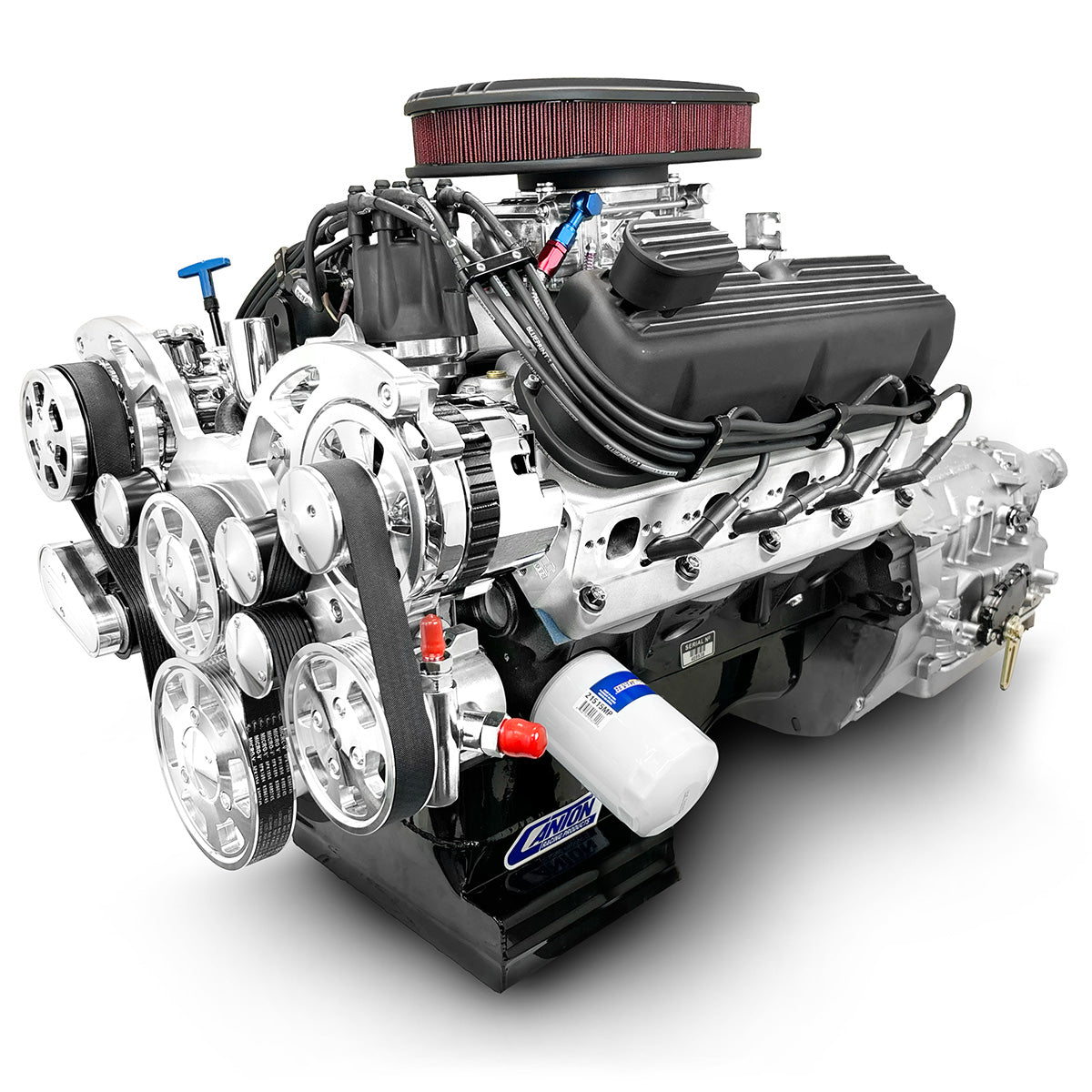

BluePrint Engines Ford Small Block Compatible 302 C.I. Standard Edition - TKX Manual Transmission - Polished Pulley Kit - Fuel Injected

This 302 c.i. engine and TKX manual transmission Builder Series package delivers an impressive 370 horsepower and 350 lbs. of torque, bringing classic small-block performance together with modern drivability. Featuring a Holley Sniper 2 EFI system and EFI fuel pump kit, it offers reliable starts, smooth throttle response, and easy tuning with no carb adjustments required. The combination of a performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer ensures strong, consistent power from idle to high RPM. The polished front accessory drive adds a clean, professional look under the hood, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide complete front-end function. Blending proven Ford V8 compatible power with modern electronic fuel injection and a fully equipped accessory drive system that’s built to perform and look great doing it.

• Roller Cam, Hyp Pistons, 1pc Rear Seal, Externally Balanced Front & Rear, Dual Plane Intake, EFI, Ready Run Distributor, Ignition Coil, Distributor, Water Pump, Oil Pan, Valve Covers, Air Cleaner, Timing Cover, TKX Manual Transmission

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753982957
• Air Cleaner Included: Yes
• Bore Diameter: 4.000
• Camshaft Specs: .543 Intake / .554 Exhaust Lift - 218 Intake / 226 Exhaust Duration -@.050-112 LSA
• Camshaft Type: Hydraulic Roller
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 9.5:1
• Connecting Rod Beam Style: I-Beam
• Connecting Rod Length: 5.090
• Crankshaft Material: Cast Iron
• Crankshaft Vendor: BluePrint or Ford, Machined and Balanced by BluePrint Engines
• Cylinder Head Material: Aluminum
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads Included: Yes - HP9009
• Distributor Included: Yes - BPP3023BK
• Distributor Vendor: BluePrint Pro Billet
• Engine Balance: Externally Balanced - 50oz
• Engine Block Material: Iron
• Engine Stroke: 3.000
• Engine Water Pump Included: Yes
• Firing Order: 1,3,7,2,6,5,4,8
• Flexplate Included: Yes
• Flywheel Included: No
• Fuel Delivery System: Sniper 2 EFI System
• Fuel Delivery Type: Fuel Injected
• Fuel Delivery Vendor: Holley
• Fuel Pump Included: Yes
• Harmonic Balancer Included: Yes
• Horsepower: 370
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane Aluminum Intake Manifold - Square Bore - BPP302INT
• Intake Manifold Vendor: BluePrint Engines
• Main Bearing Cap Bolt Quantity: 4-Bolt Main
• Oil Pan Included: Yes
• Oil Pan Type: Front Sump
• Oil Pump Included: Yes
• Piston Style: Flat
• Piston Valve Reliefs Volume: 2cc
• Pistons Material: Hypereutectic
• Pulley Kit Included: Yes - Black - BPP302FDACPS4BK
• Quantity: EA
• Rear Main Seal Type: One-Piece
• Recommended Flexplate/Flywheel: BPPF157T28
• Recommended Harmonic Balancer: BPP50
• Recommended Octane Fuel: 87+ Octane
• Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
• Recommended Spark Plug Gap: 0.035
• Recommended Stall Converter: 1800-2200 RPM
• Spark Plug Wires Included: Yes
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 350
• Transmission Model: 4R70W
• Transmission Type: Automatic
• Valve Covers Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 73 x 32 x 46 inches
• Weight: 935 POUNDS
