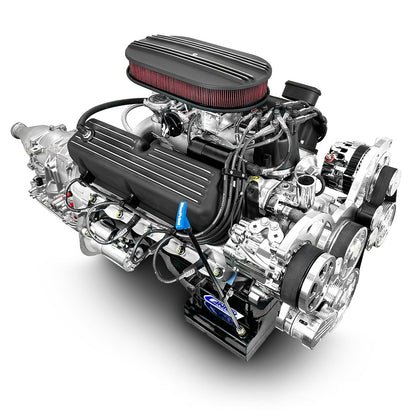

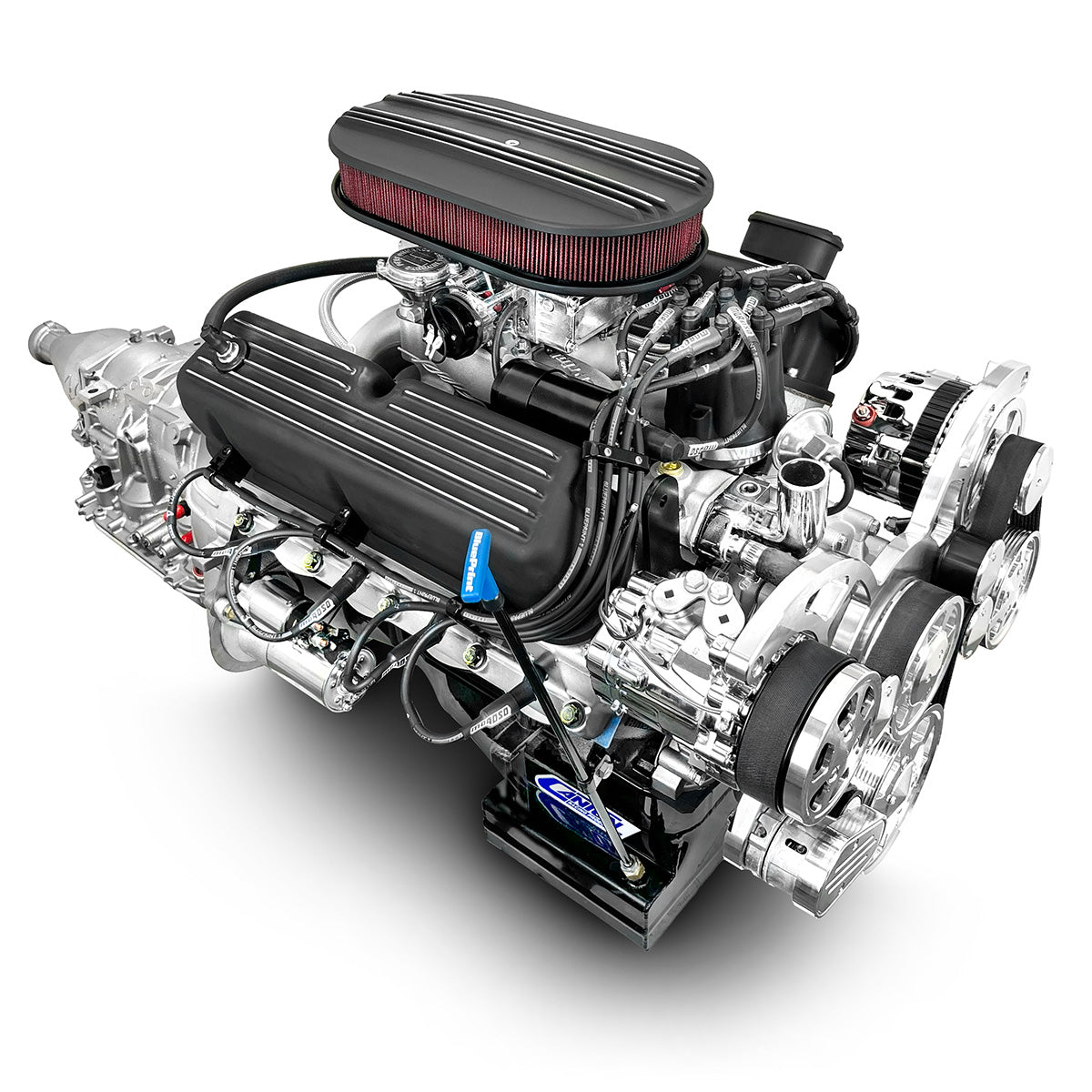

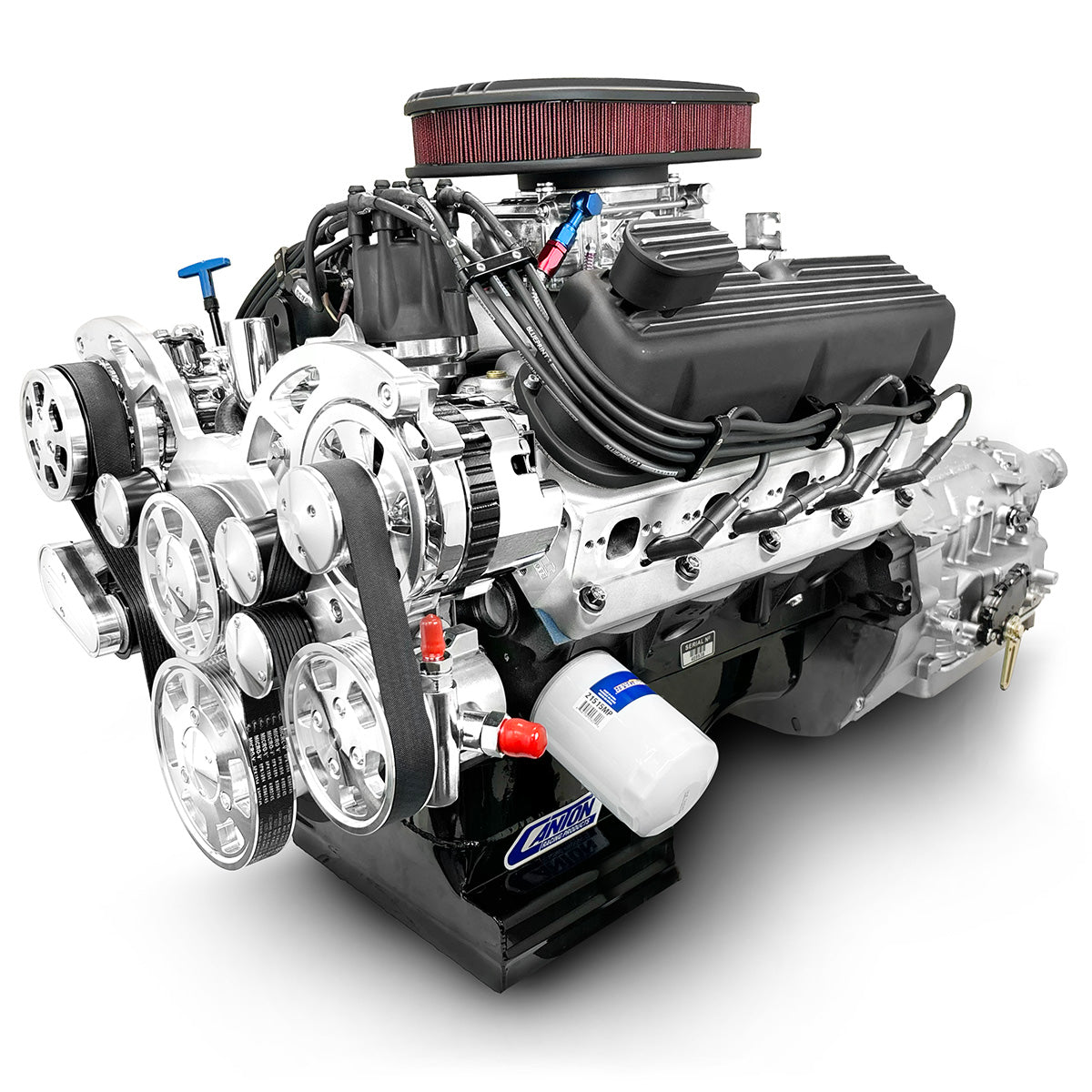

BluePrint Engines Ford Small Block Compatible 302 C.I. Standard Edition - 4R70W Automatic Transmission - Polished Pulley Kit - Carbureted

This 302 c.i. engine and 4R70W automatic transmission Builders Series package delivers 370 horsepower and 350 lb-ft of torque, combining proven small-block power with dependable street performance. Equipped with a Holley 600 CFM carburetor, it provides crisp throttle response, easy tuning, and the classic feel of a traditional carbureted setup. The performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer all work together to ensure smooth, consistent power throughout the RPM range. The polished front accessory drive gives the engine a clean, professional appearance, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide a complete front-end system. This 302 c.i. package delivers the perfect blend of classic Ford V8 compatible performance and modern reliability — fully assembled, ready to drop in, and built to turn heads on the road or at the show.

• Roller Cam, Hyp Pistons, 1pc Rear Seal, Externally Balanced Front & Rear, Dual Plane Intake, 600cfm Carb, Ready Run Distributor, Ignition Coil, Distributor, Water Pump, Oil Pan, Valve Covers, Air Cleaner, Timing Cover, 4R7 Auto Transmission

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753982964
• Air Cleaner Included: Yes
• Bore Diameter: 4.000
• Camshaft Specs: .543 Intake / .554 Exhaust Lift - 218 Intake / 226 Exhaust Duration -@.050-112 LSA
• Camshaft Type: Hydraulic Roller
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 9.5:1
• Connecting Rod Beam Style: I Beam
• Connecting Rod Length: 5.090
• Crankshaft Material: Cast Iron
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Material: Aluminum
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads Included: Yes - HP9009
• Distributor Included: Yes - BPP3023BK
• Distributor Vendor: BluePrint Pro Billet
• Engine Balance: Externally Balanced - 50oz
• Engine Block Material: Cast Iron
• Engine Stroke: 3.000
• Engine Water Pump Included: Yes
• Firing Order: 1,3,7,2,6,5,4,8
• Flexplate Included: Yes
• Flywheel Included: No
• Fuel Delivery System: Street Warrior 600CFM Vacuum Secondary w/Electric Choke
• Fuel Delivery Type: Carbureted
• Fuel Delivery Vendor: Holley
• Fuel Pump Included: Yes
• Harmonic Balancer Included: Yes
• Horsepower: 370
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane Aluminum Intake Manifold - Square Bore - BPP302INT
• Intake Manifold Vendor: BluePrint Engines
• Main Bearing Cap Bolt Quantity: 4-Bolt Main
• Oil Pan Included: Yes
• Oil Pan Type: Front Sump
• Oil Pump Included: Yes
• Piston Style: Flat
• Piston Valve Reliefs Volume: 2cc
• Pistons Material: Hypereutectic
• Pulley Kit Included: Yes - Polished - BPP302FDACPS4
• Quantity: EA
• Rear Main Seal Type: One-Piece
• Recommended Flexplate/Flywheel: BPPF50164
• Recommended Harmonic Balancer: BPP50
• Recommended Octane Fuel: 87+ Octane
• Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035
• Recommended Stall Converter: 1800-2200 RPM
• Spark Plug Wires Included: Yes
• Spark Plugs Included: Yes
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 350
• Transmission Model: 4R70W
• Transmission Type: Automatic
• Valve Covers Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 73 x 32 x 46 inches
• Weight: 959 POUNDS
