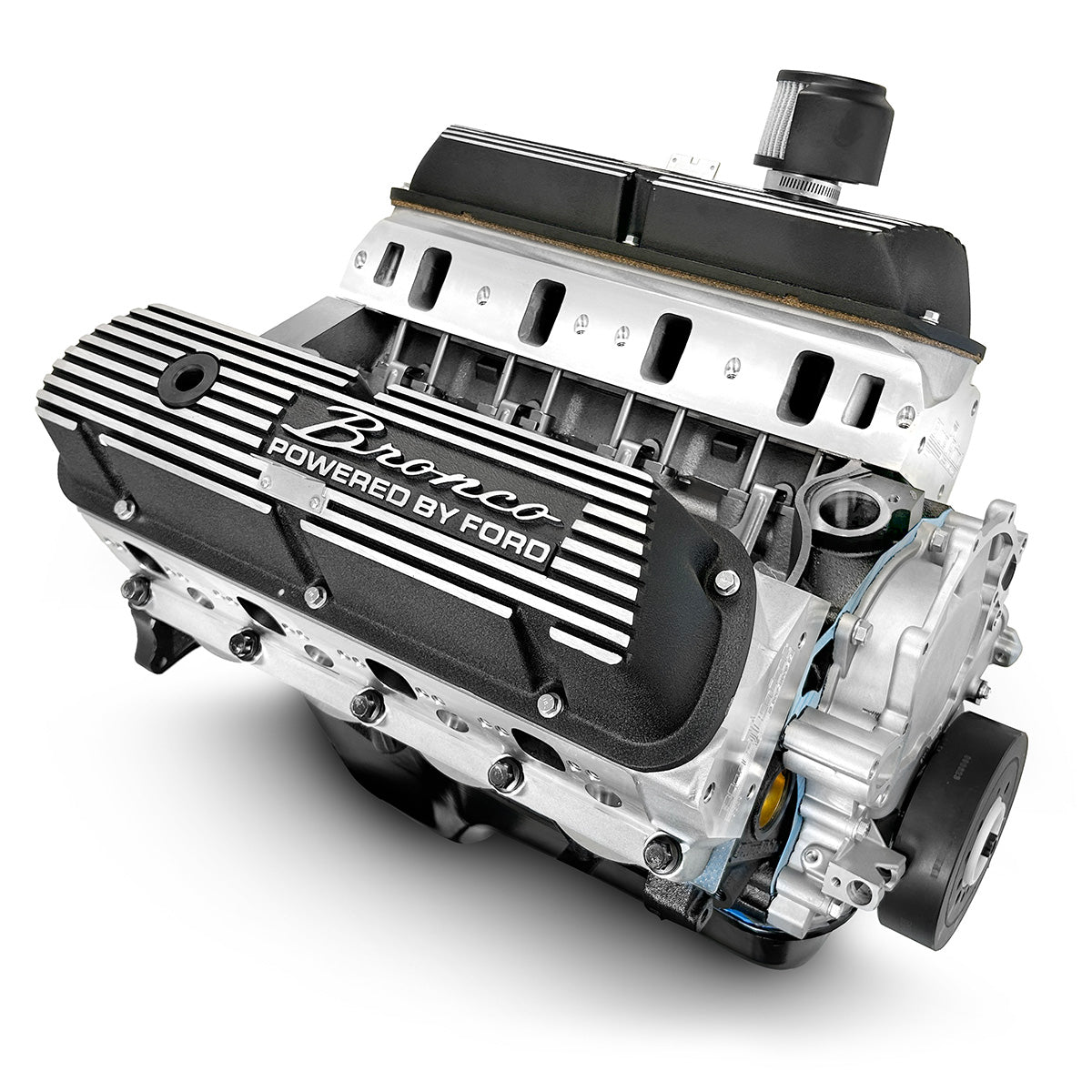

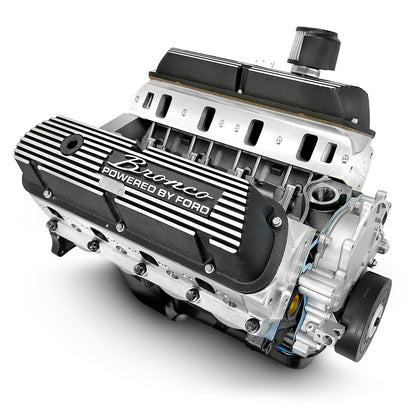

BluePrint Engines Ford Small Block Compatible 302 C.I. Long Block - Front Sump Oil Pan - Bronco Edition

BluePrint Engines 302 c.i. Ford Small Block Compatible - Bronco Edition - Long Block. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• 302CI Ford Small Block Compatible Bronco Long Block

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753908193
• Air Cleaner Included: No
• Block Description: BluePrint Engines Cast Iron Block - 302 W - 4 Bolt Main - 4.000" Bore
• Cam: Hydraulic Roller - .533 Intake / .544 Exhaust Lift - 215 Intake / 220 Exhaust Duration -@ .050 - 114 LSA
• Carb/Fuel Injection Included: No
• Compression Ratio: 9.4:1
• Crankshaft Vendor: BluePrint or Ford, Machined and Balanced by BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Aluminum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: No
• Distributor Vendor: N/A
• Engine Balance: Externally Balanced - 50oz
• Firing Order: 1,3,7,2,6,5,4,8
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: (Not Included) Recommended 600cfm Carburetor of Sniper II EFI
• Fuel Delivery Vendor: N/A
• Harmonic Balancer Included: Yes
• Horsepower: 365
• Intake Manifold Included: No
• Intake Manifold Type: N/A
• Intake Manifold Vendor: N/A
• Oil Pan Included: Yes -Rear/Duel Sump
• Pistons: Hypereutectic
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 1 Piece
• Recommended Flexplate/Flywheel: BPP529610 - BPPF50164
• Recommended Harmonic Balancer: BPP50
• Recommended Octane Fuel: 87+ Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 1800-2200 RPM
• Rotating Assembly: Cast Crank - 3.000 in. Stroke and 5.090 in. Rods
• Spark Plug Wires Included: No
• Spark Plugs Included: No
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 365
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 29 x 32 inches
• Weight: 470 POUNDS
