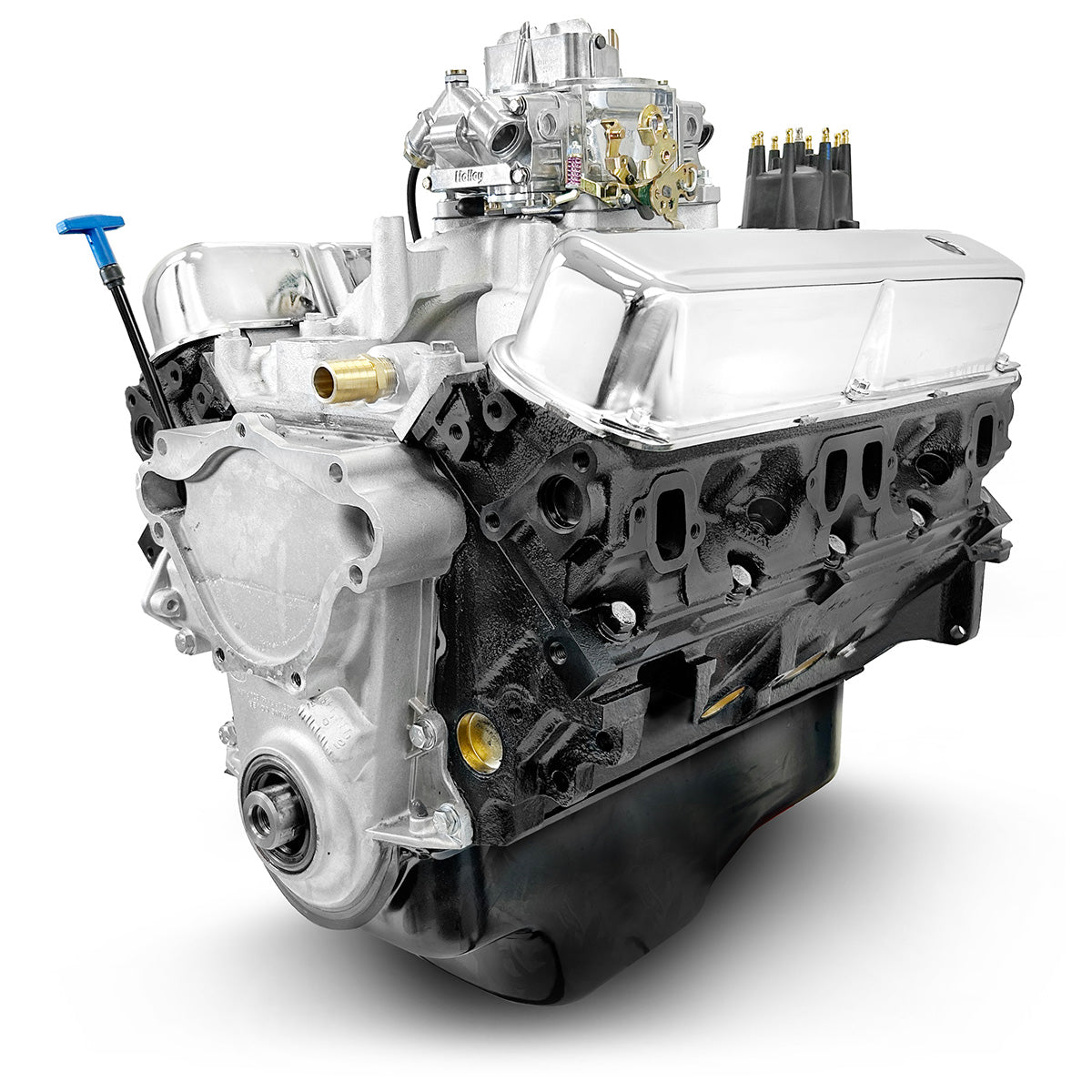

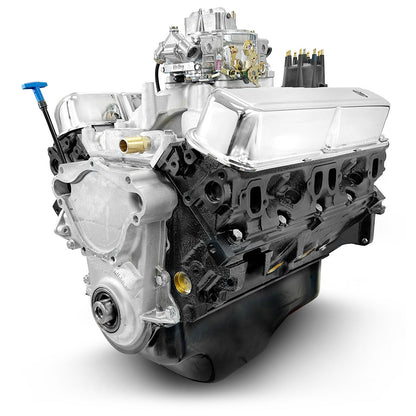

BluePrint Engines Chrysler Small Block Compatible 408 C.I. Base Dressed - Carbureted

BluePrint Engines 408 c.i. Chrysler Small Block Compatible - Base Dressed - Carburetor. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested

• 408CI Chrysler Small Block Compatible Base Dressed -Carb

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753744111
• Air Cleaner Included: No
• Block Description: Hand Picked Seasoned 360 Magnum Block - 2 Bolt Main - 4.040" Bore
• Cam: Flat Tappet - .474 Intake / .474 Exhaust Lift - 233 Intake / 240 Exhaust Duration -@ .050 - 110 LSA
• Carb/Fuel Injection Included: Yes
• Compression Ratio: 9.8:1
• Crankshaft Vendor: BluePrint Engines
• Cylinder Head Vendor: BluePrint Engines
• Cylinder Heads: Cast Iron, Magnum Cylinder Heads
• Cylinder Heads Included: Yes
• Distributor Included: Yes
• Distributor Vendor: BluePrint Pro Billet
• Engine Balance: Externally Balanced - 360 Magnum Front - LA 360 Rear
• Firing Order: 1,8,4,3,6,5,7,2
• Flexplate/Flywheel Included: No
• Fuel Delivery Type: Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke - Carbureted
• Fuel Delivery Vendor: Holley
• Harmonic Balancer Included: No
• Horsepower: 375
• Intake Manifold Included: Yes
• Intake Manifold Type: Dual Plane, Satin Aluminum
• Intake Manifold Vendor: BluePrint Engines, PFS, or Edelbrock
• Oil Pan Included: Yes-Front Sump
• Pistons: Hypereutectic
• Pulley Kit Included: No
• Quantity: EA
• Rear Main Seal Style: 2 Piece
• Recommended Flexplate/Flywheel: BPP727360
• Recommended Harmonic Balancer: BPP360
• Recommended Octane Fuel: 91+ Octane
• Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
• Recommended Spark Plug Gap: .035 in.
• Recommended Stall Converter: 1800-2200 RPM
• Rotating Assembly: Cast Crank - 4.00 in. Stroke and Forged 6.123 in. Rods
• Spark Plug Wires Included: No
• Spark Plugs Included: No
• Timing Cover Included: Yes
• Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
• Torque: 460
• Valve Covers Included: Yes
• Water Pump Included: No

Extended Information:

• Country of Origin: United States
• Emissions : 3

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 30 x 38 inches
• Weight: 560 POUNDS
