Bilstein Shock Absorbers

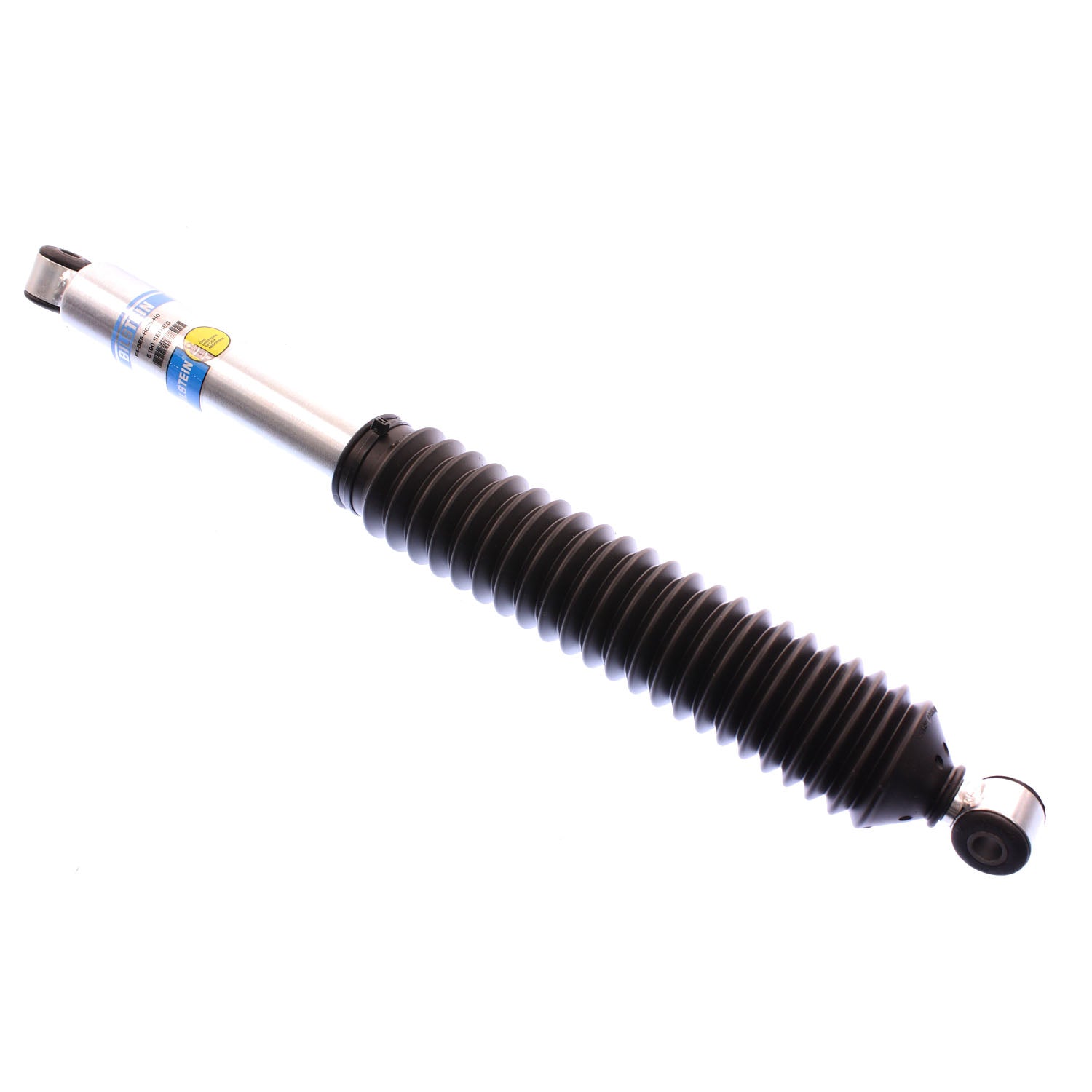

Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.

• Maintains complete command of your truck, van or SUV at all times
• Allows the ability to dampen minute movements in the steering
• Reduces steering vibrations

Vehicle Specific

• Dodge Ram 2500 2007-2010, Ram 3500 2007-2010, Ram 2500 2011-2013, 3500 2011-2012

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860649344
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: Black Bellows
• Collapsed Length (IN): 14.72
• Collapsed Length (MM): 374.0
• Extended Length (IN): 23.64
• Extended Length (MM): 600.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 12.7mm
• PartType: Steering Stabilizer
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100 (Steering Damper)
• Shaft Diameter: 11mm
• Stroke/Travel Length (IN): 8.92
• Stroke/Travel Length (mm): 226.6
• Upper Mount Type: Eye 12.7mm

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.6300 POUNDS
