Bilstein Shock Absorbers

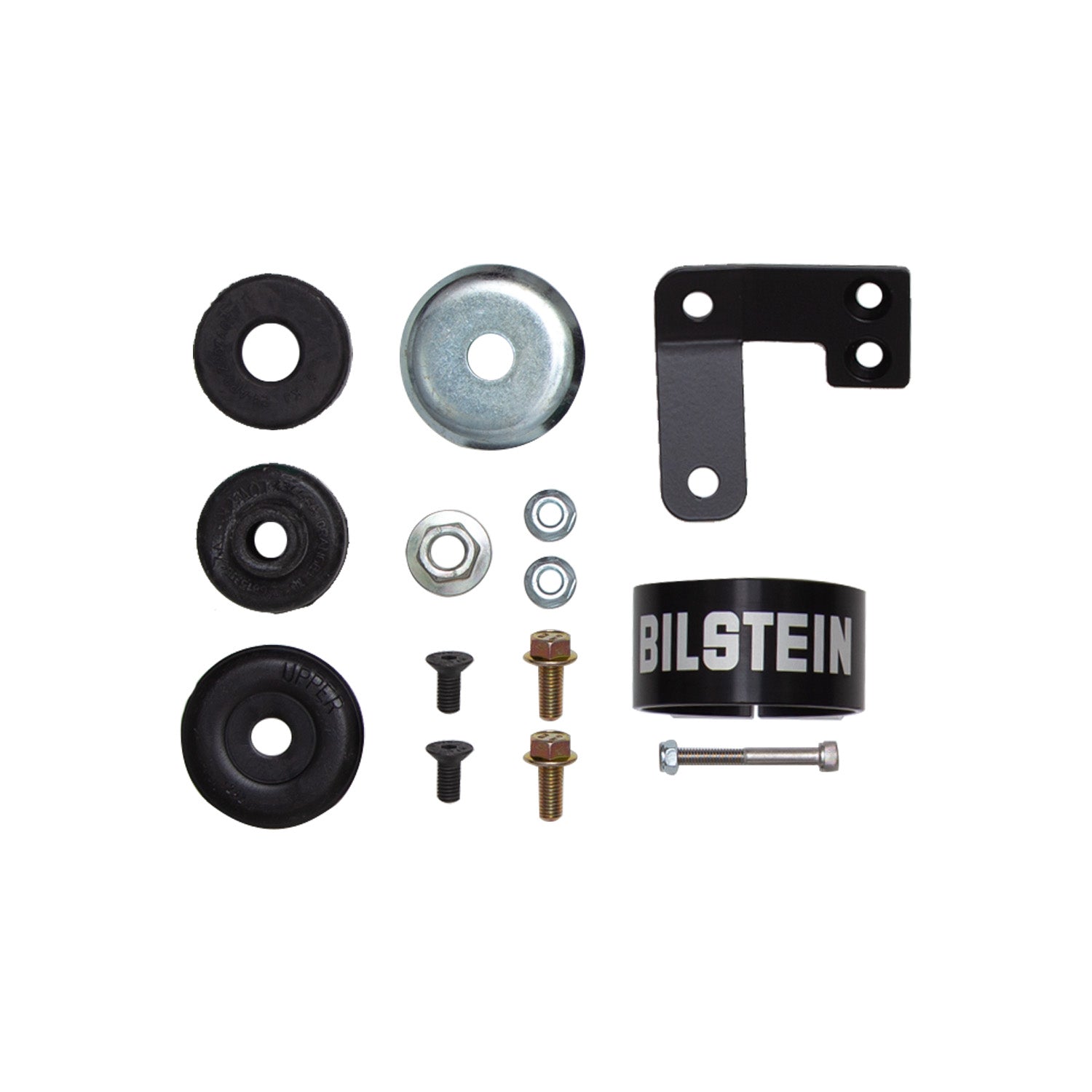

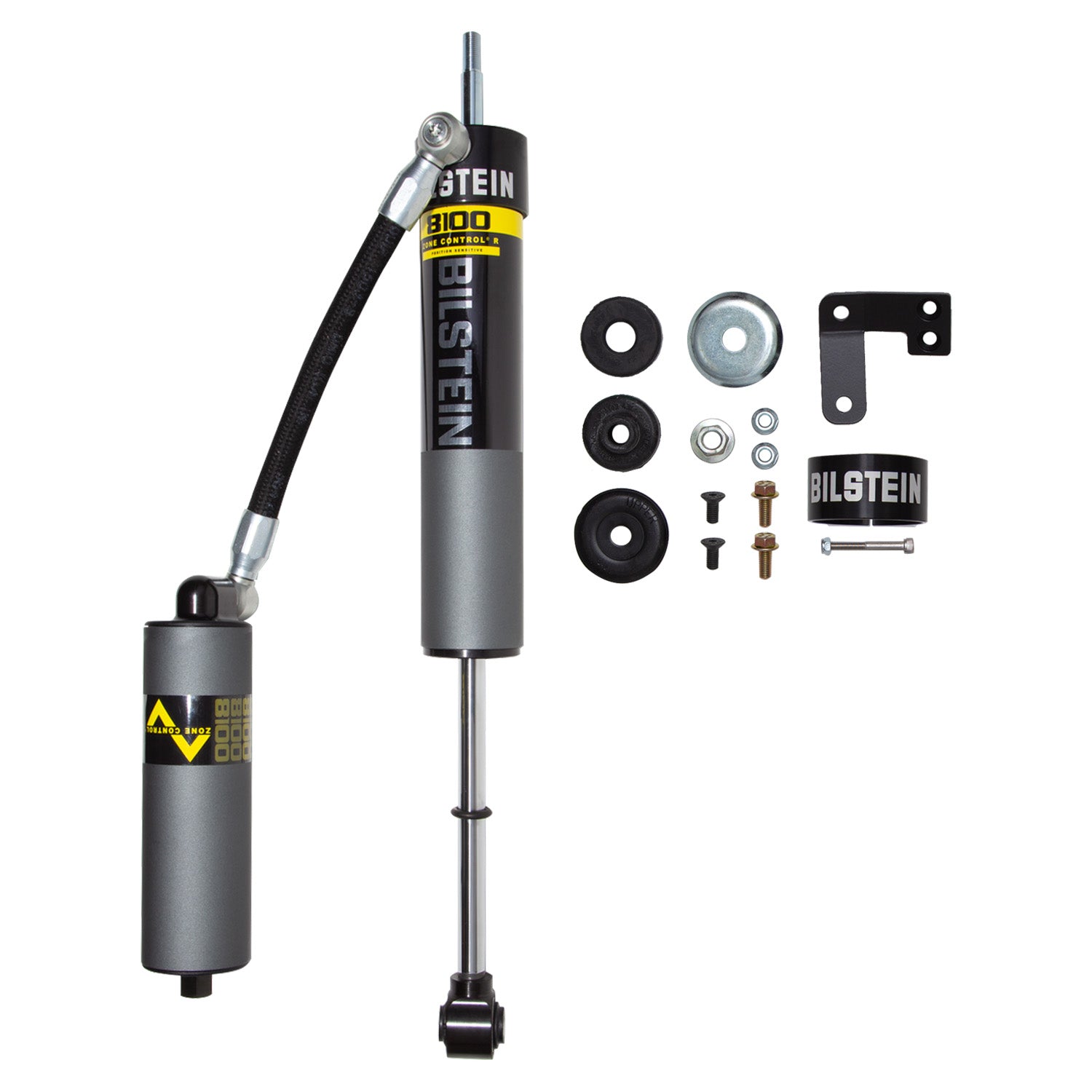

Bilstein B8 8100 (ZoneControl R) reservoir shock absorbers are a direct fit, position sensitive solution designed for light trucks and SUVs. ZoneControl R is a revolutionary technology delivering position sensitive rebound damping which eliminates harsh suspension top-out events and the need for an external limit strap. The system incorporates a double piston design, offering 2 stages of rebound valving and is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount where applicable. Bilstein B8 8100 (ZoneControl R) position sensitive shocks will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

• 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
• Direct fit for an easy installation
• 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain

Vehicle Specific

• Ram 2500 2019-2025

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860911045
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: No
• Collapsed Length (IN): 14.65
• Collapsed Length (MM): 372.2
• Extended Length (IN): 22.99
• Extended Length (MM): 584.0
• Finish: EVO Grey
• Internal Design: Monotube
• Lower Mount Type: Eye 14.1mm
• PartType: Shocks / Struts
• Piston Diameter: 60mm
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 8100 (ZoneControl R)
• Shaft Diameter: 18mm
• Spring Seat Included: No
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 32.0000 x 14.0000 x 6.0000 inches
• Weight: 20.4500 POUNDS
