Bilstein Shock Absorbers

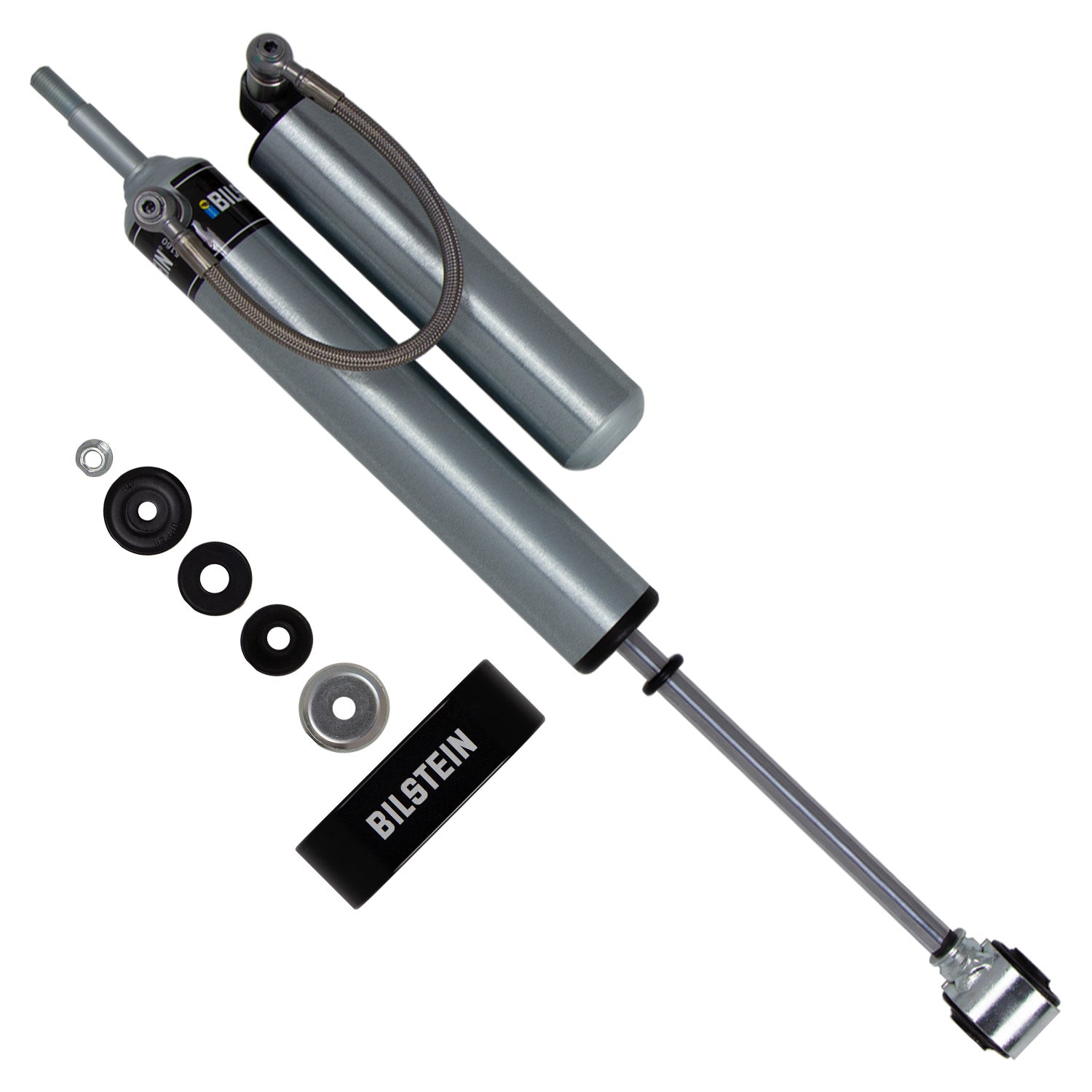

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Vehicle Specific

• Ford F-250 Super Duty 2005-2025, F-350 Super Duty 2005-2025

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860898407
• Adjustable Damping: Non-Adjustable
• Billet Reservoir Clamp Included: Yes
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: No
• Collapsed Length (IN): 13.17
• Collapsed Length (MM): 334.5
• Extended Length (IN): 21.01
• Extended Length (MM): 533.7
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.4mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 5160
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 7.84
• Stroke/Travel Length (mm): 199.1
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 7.8500 POUNDS
