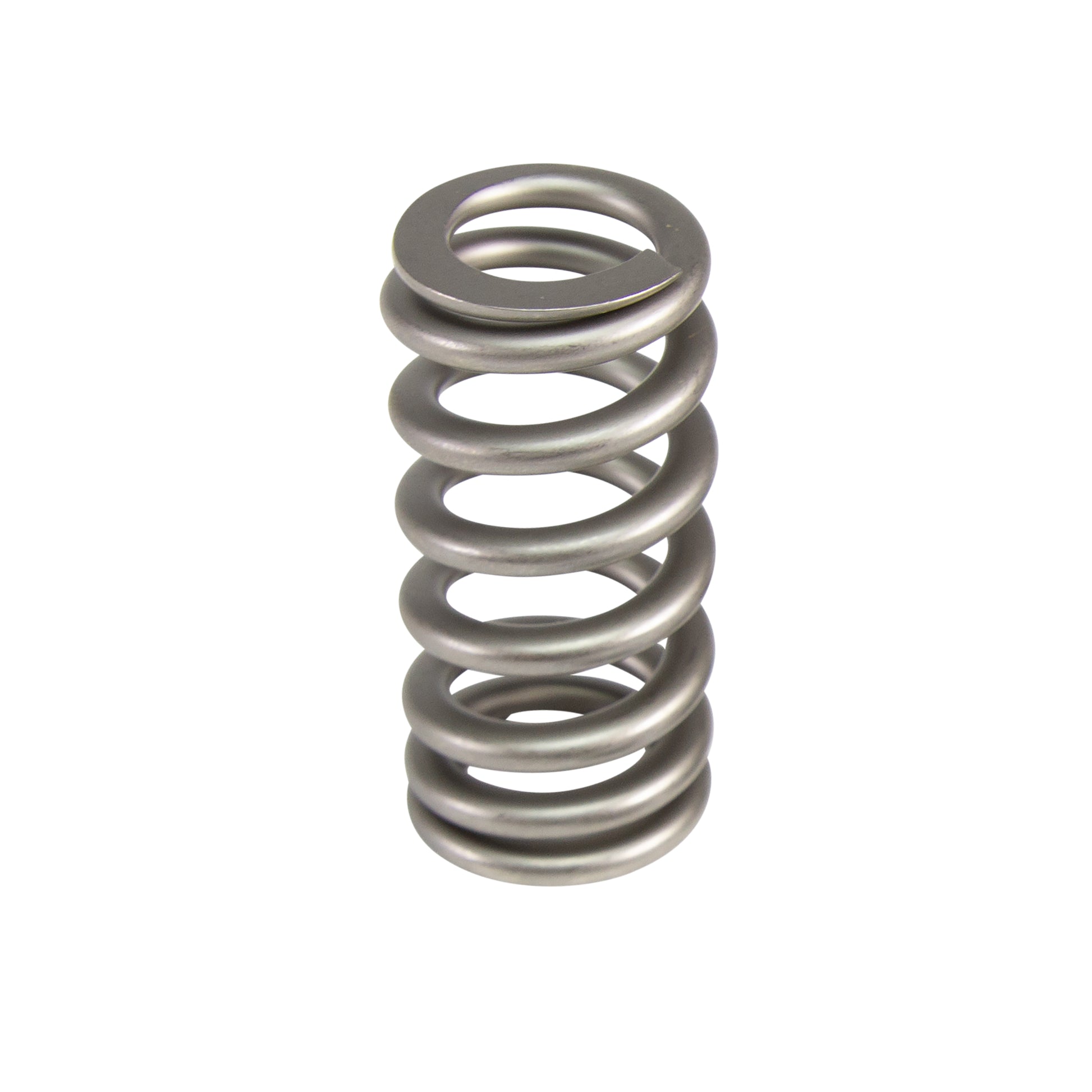

Beehive Valve Spring For '18+ Ford 5.0 Coyote

• 2018+ Ford 5.0L Coyote

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584399452
• Bottom Inside Diameter: 0.720
• Bottom Outside Diameter: 1.0830
• Coil Bind Height: 1.090
• Compatible Chromemoly Steel Retainers: 710
• Compatible Locks: Stock
• Compatible Seals: 523
• Compatible Shims: N/A
• Compatible Spring Seat: 4688
• Compatible Titanium Retainers: 702
• Compatible Tool Steel Retainers: N/A
• Damper: No
• Installed Height: 1.765
• Max Lift: 0.600
• Open Load: 280
• Seat Pressure: 105
• Spring Rate: 291
• Spring Style: Beehive
• Top Inside Diameter: 0.636
• Valve Spring Series: Performance Street

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 6 x 0.9 inches
• Weight: 0.2 POUNDS
