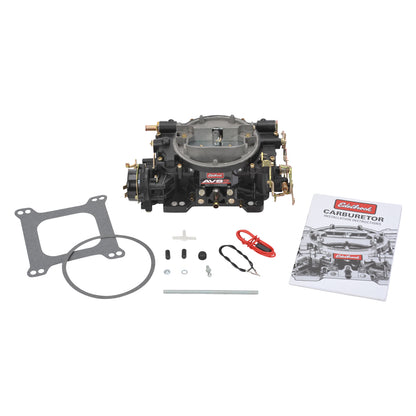

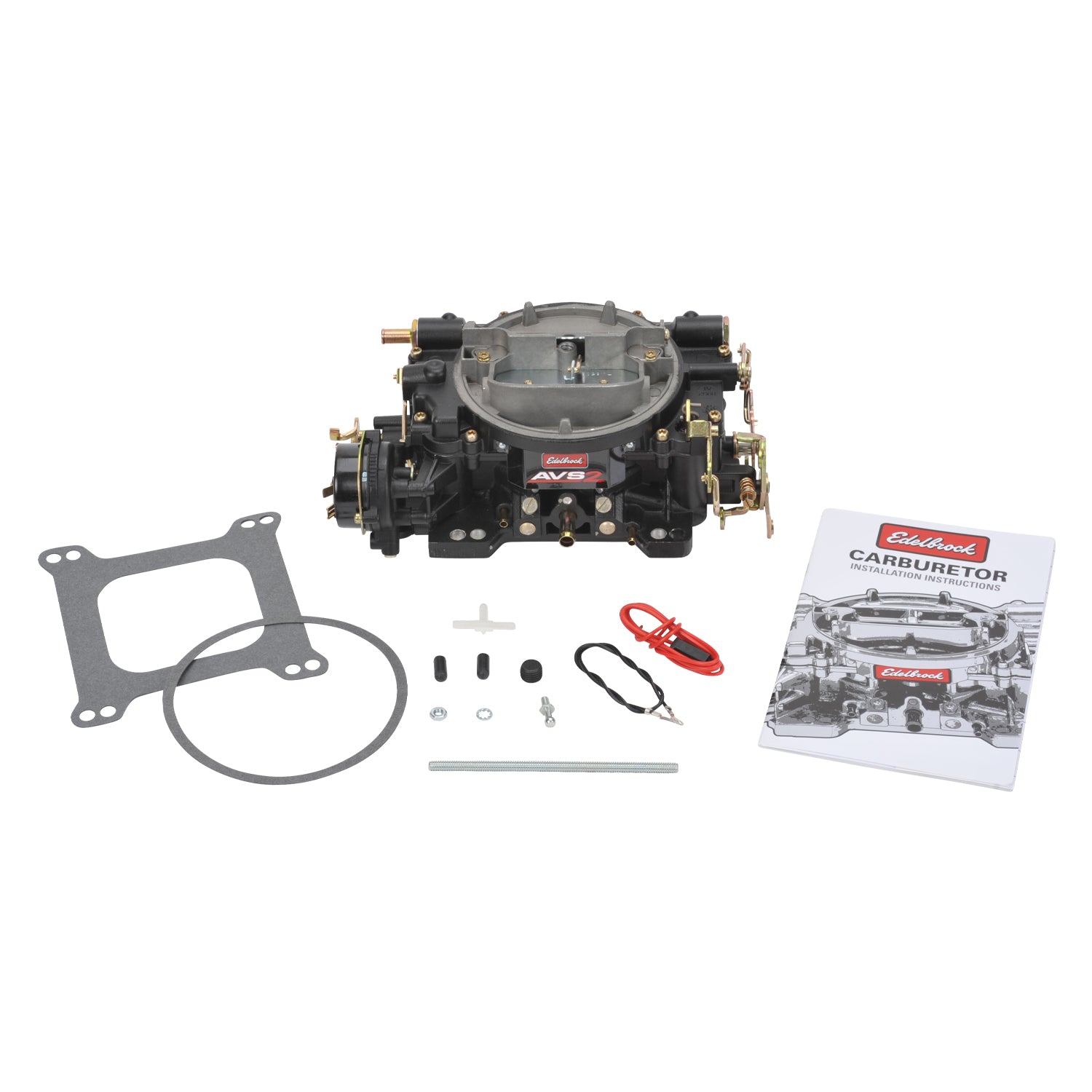

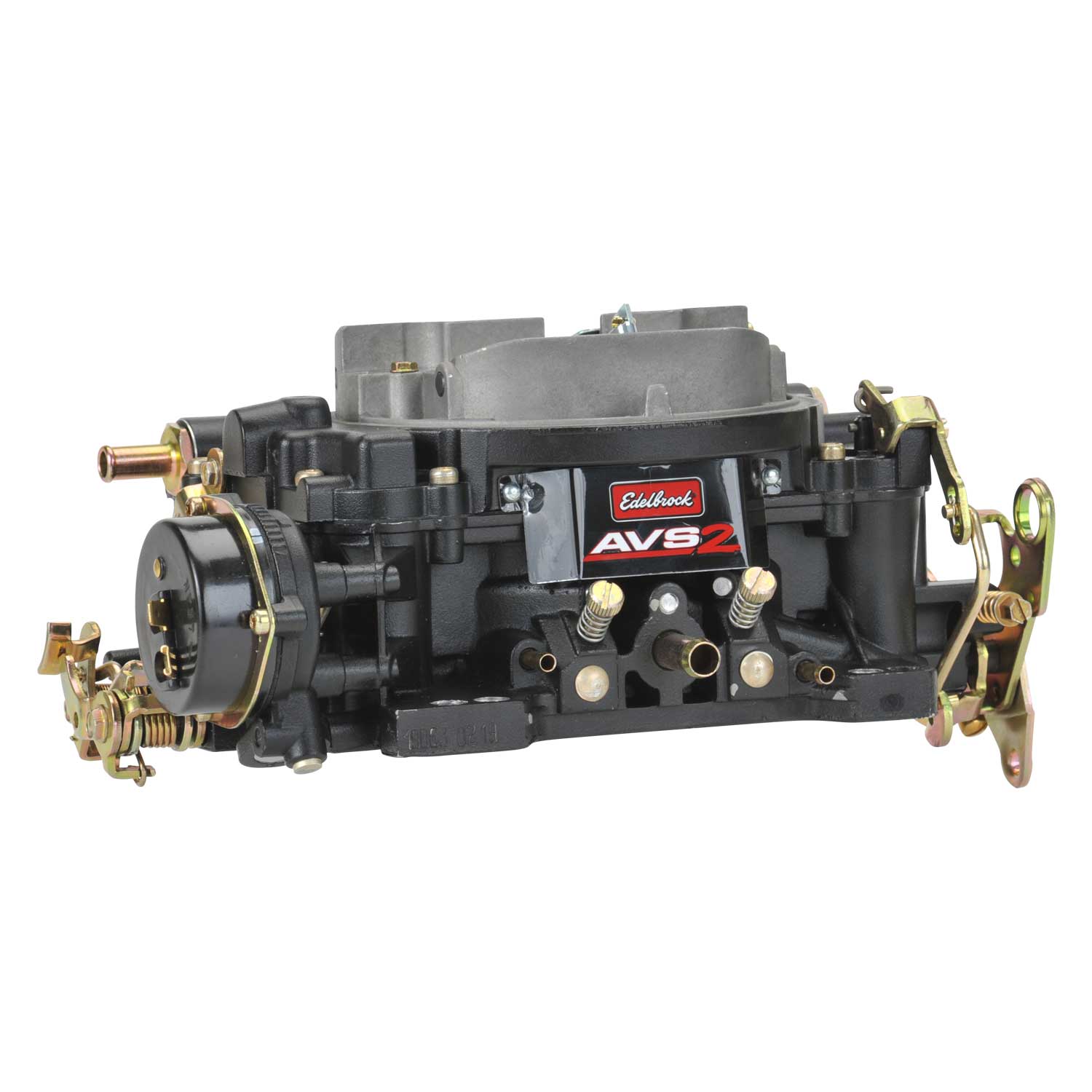

AVS2 Carburetor #1906-CP 650 CFM W/ Electric Choke Chrome Plasma Finish

orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a satin-finished AVS2 with electric choke, order part #1906.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347190638
• Barrel Quantity: 4 Barrel
• Body Height: 3.25
• Booster Type: annular
• Bore Diameter: Primary Bore 1.44; Secondary Bore 1.75
• Choke Type: Electric
• Condition: New
• EGR Port: No
• Finish: Black Powder Coated
• Flange Shape: Square
• Gasket Or Seal Included: Yes
• Main Venturi Diameter: 1.19
• Material: Aluminum
• Maximum Flow Rating: 650
• Metering Rod Size: .070 x .037
• Primary Jet Diameter: 0.101
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Secondary Jet Diameter: 0.098
• Series: AVS2
• Spring Force: 5" Hg (Orange)

Extended Information:

• Country of Origin: US
• Emissions : 2
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 7.375 x 6.75 inches
• Weight: 9.2 POUNDS
