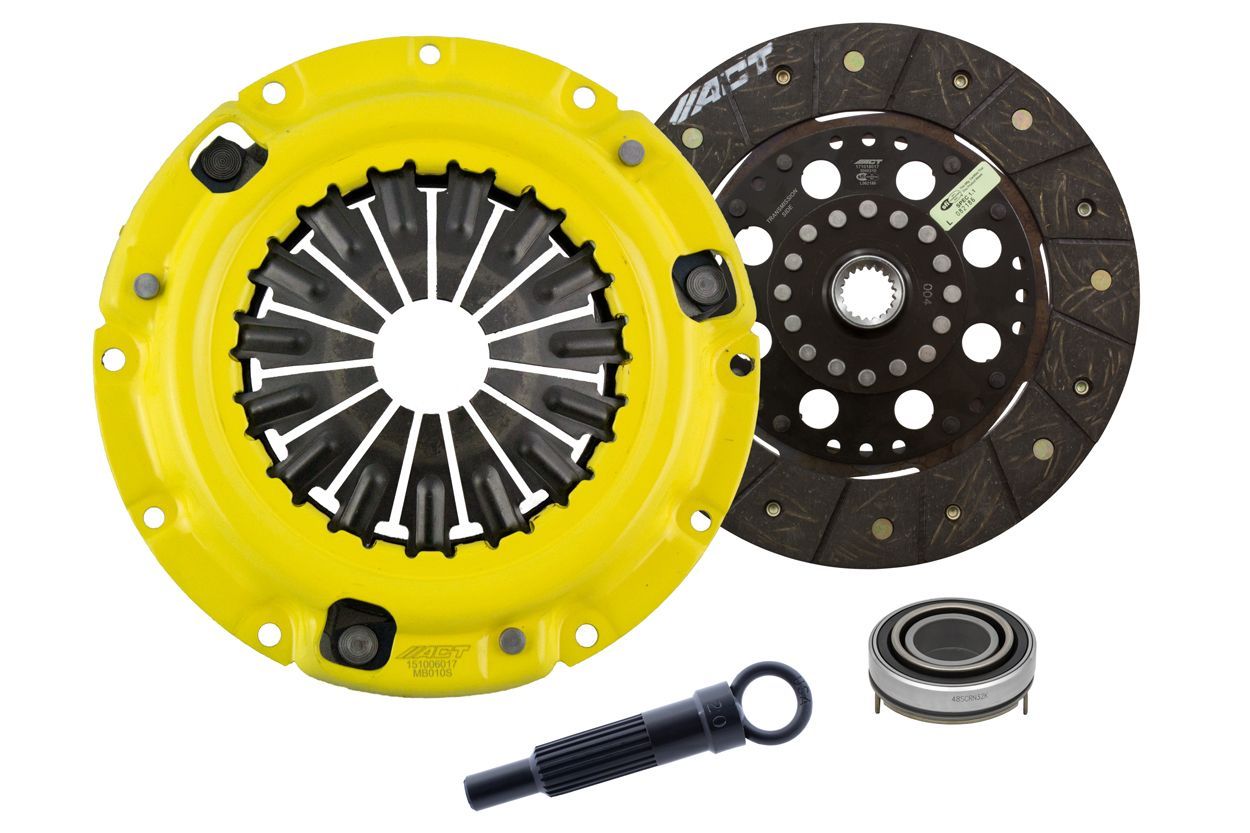

ACT Sport/Perf Street Rigid Kit

MB1-SPSD kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00842385019860
• Alignment Tool Included: Yes
• Clutch Disc Diameter: 224
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Disc Material: Organic
• Disc Type Sprung Solid: Solid
• Flywheel Bolts Included: No
• Flywheel Included: No
• Grade Type: Performance
• Grease Included: Yes
• Input Shaft Diameter: 0.875
• Input Spline Quantity: 20
• Pilot Bearing Included: No
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: No
• Pressure Plate Type: Sport
• Product Weight (lbs.): 10.5
• Release Bearing Included: Yes
• Torque Capacity (ft/lbs.): 300
• Torque Capacity Over OE: 18%

Extended Information:

• Country of Origin: KR
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 5 inches
• Weight: 14 POUNDS
