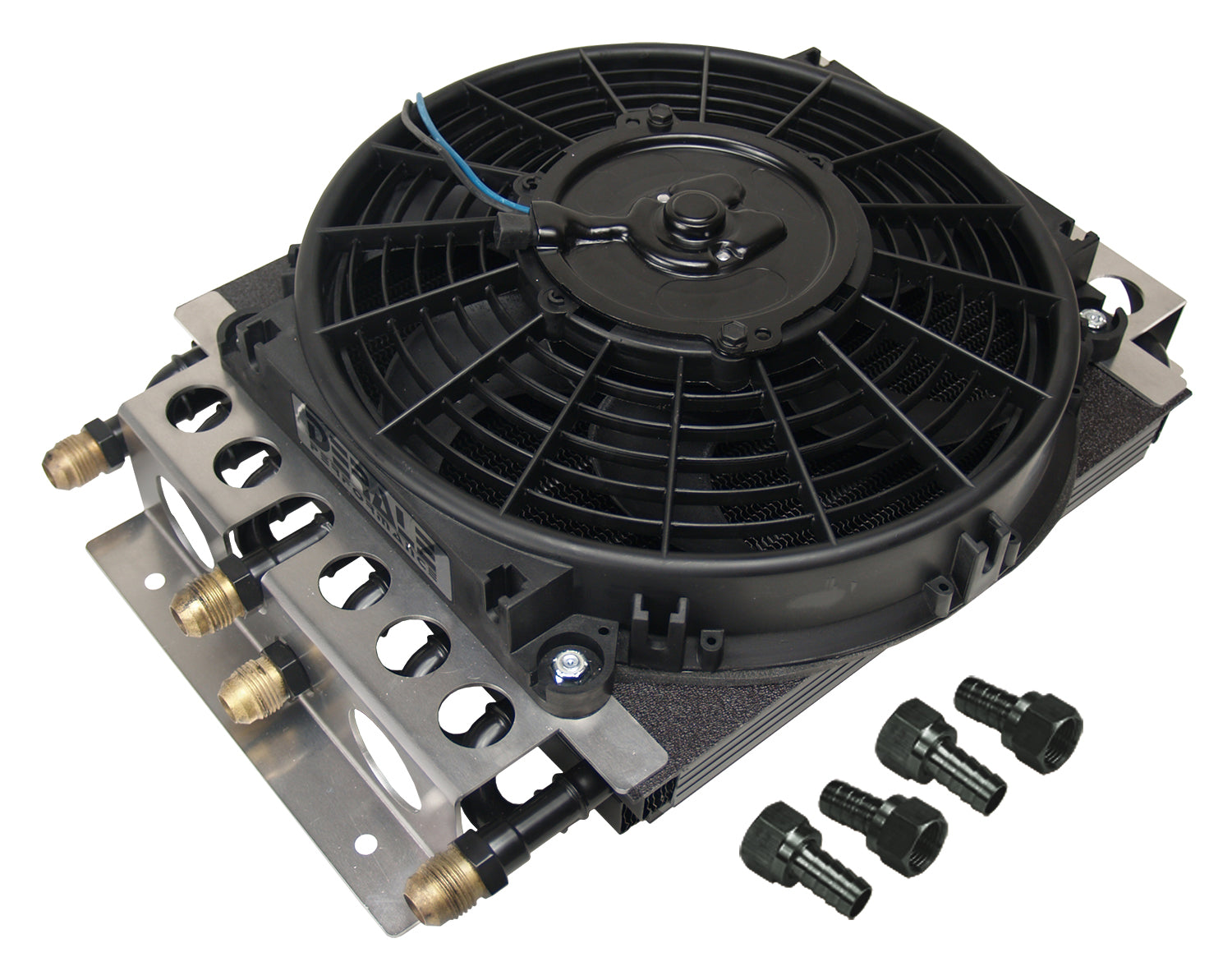

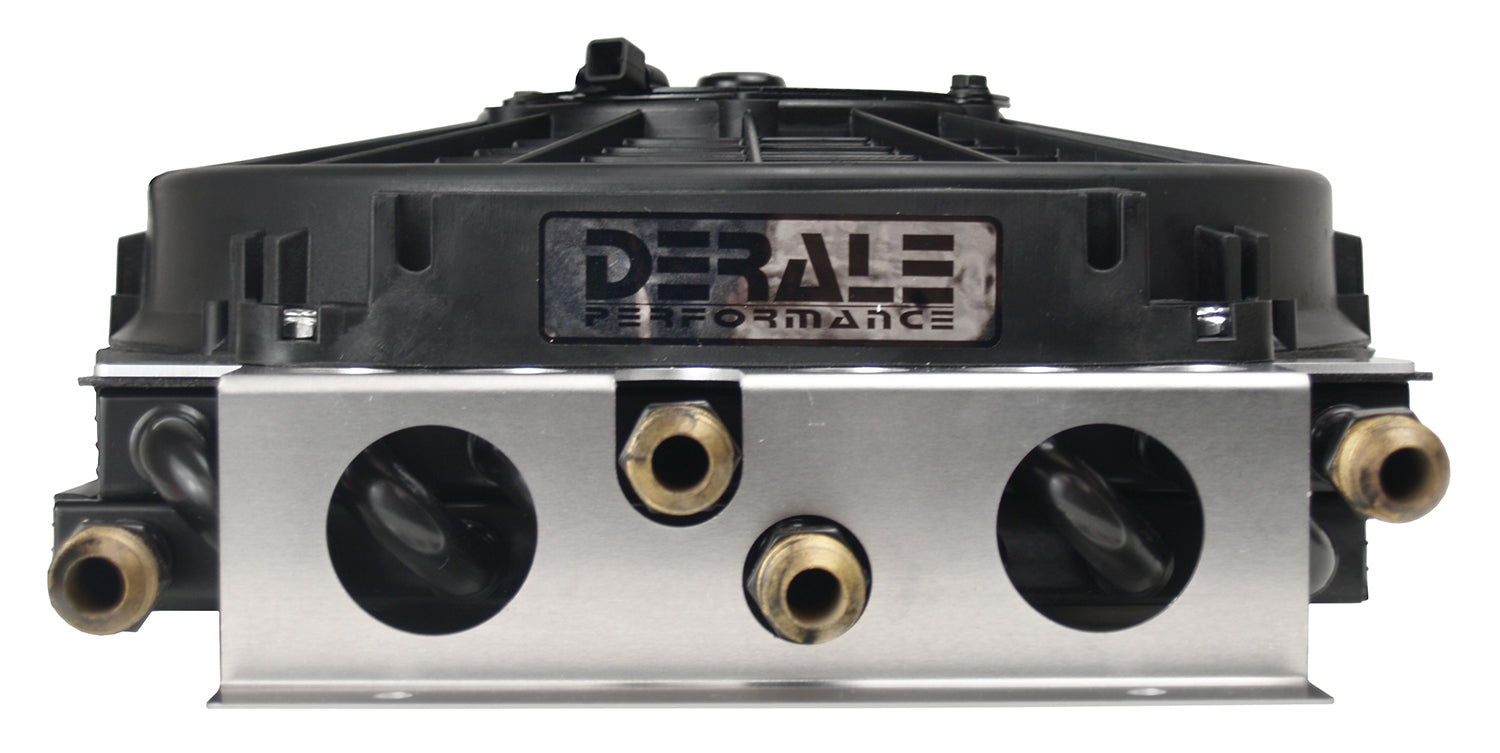

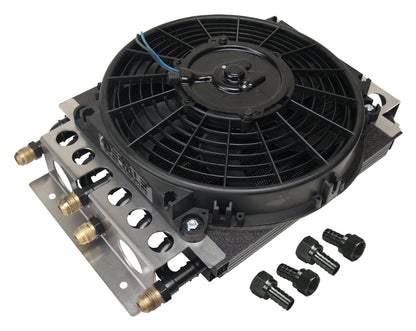

8 & 8 Pass Dual Circuit Electra-Cool Remote Fluid Cooler -8AN

Combining an efficient 8 & 8 Pass copper/aluminum Made-in-the-USA cooler with a powerful 10" Tornado electric fan, this compact remote cooler cools two separate systems with one compact design that can be mounted literally anywhere space permits. Includes clear anodized aluminum mounting brackets, (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings to adapt to a wide variety of heat removal requirements.

• 8 & 8 Pass Dual Circuit Electra-Cool Remote Fluid Cooler, -8AN

Attributes:

• Brand Name: Derale
• GTIN: 00083277152009
• Airflow: Puller (reversible)
• Amp draw: 5.3
• Barb size: 1/2
• CFM: 650
• Color: Black
• Cooler fluid capacity: 9 oz per/circuit
• Cooler style: 8 & 8 pass Tube & Fin
• Depth: 5
• Fan size: 10
• Height: 11-1/2
• Inlet dim: 8-3/4
• Inlet size: -8AN
• Mounting: 14-3/4 x 5-1/4
• Rated functional: 250psi working / 300psi burst strength
• Width: 15-3/4

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 19.25 x 6.75 inches
• Weight: 5.125 POUNDS
