5R110W Pump Alignment Tool

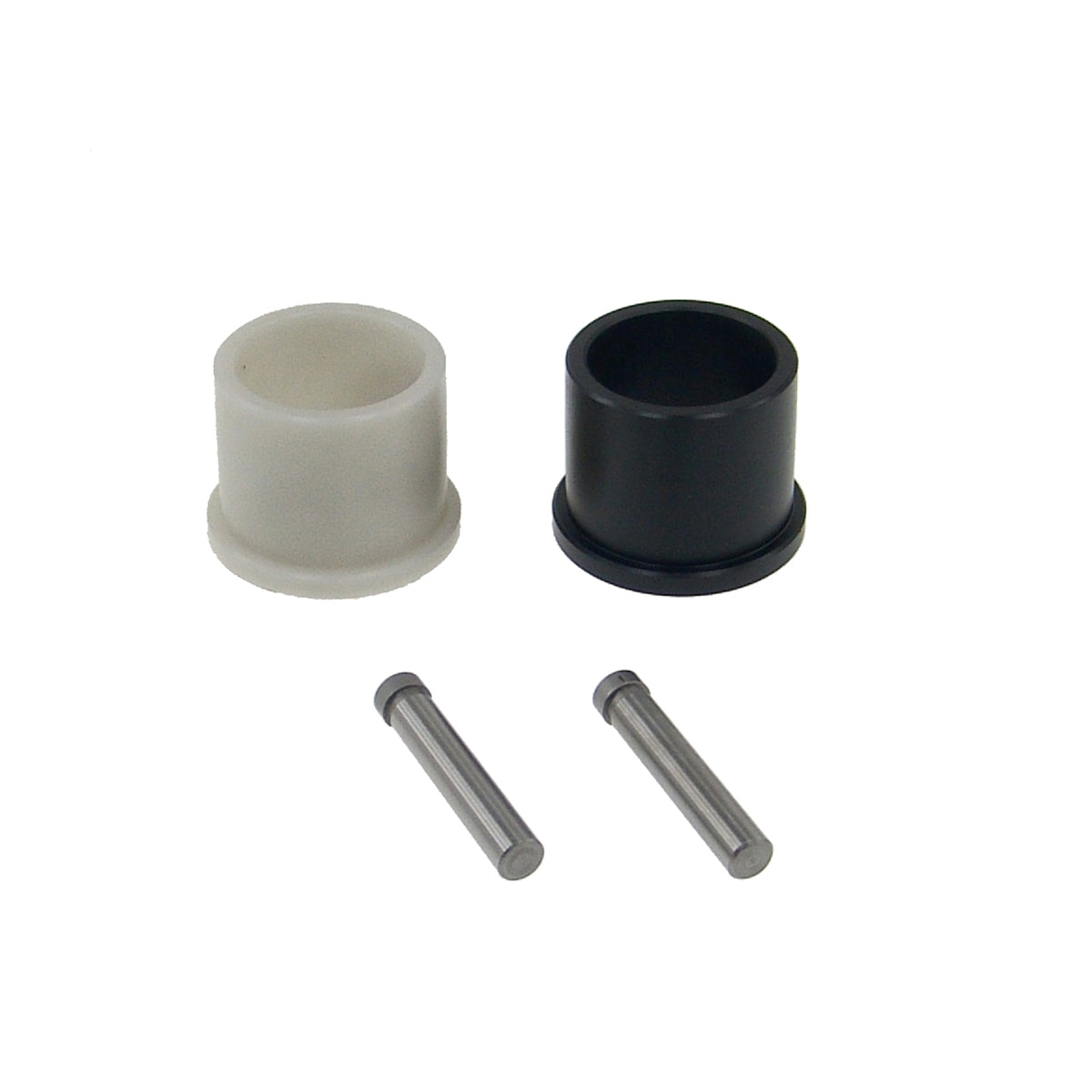

This kit includes two precision alignment collets as well as two steel pins that will precisely align the pump cover and the stator tube to the pump body bushing. The two collets provided have different inside diameters allowing you to select the proper size for the stator support tube diameter of the unit you are working on. Lastly, the furnished instruction booklets also include in depth technical information to help you prevent and avoid the multiple other reasons that can lead to this common and costly pump failure. Vehicle Specific

• Ford: E-150 2007 - 2007 Ford: E-250 2012 - 2012 Ford: E-350 Club Wagon 2004 - 2005 Ford: E-350 Super Duty 2004 - 2016 Ford: E-450 Super Duty 2005 - 2016 Ford: F-250 Super Duty 2006 - 2010
• Ford: F-350 Super Duty 2005 - 2010 Ford: F-450 Super Duty 2006 - 2016 Ford: F-550 Super Duty 2006 - 2016 Ford: F53 2006 - 2017 Ford: F59 2011 - 2017

Attributes:

• Brand Name: TransGo Performance
• GTIN: 00810159320801
• Installation: Transmission Removal Required

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 3 x 6.5 x 7 inches
• Weight: 0.61 POUNDS
