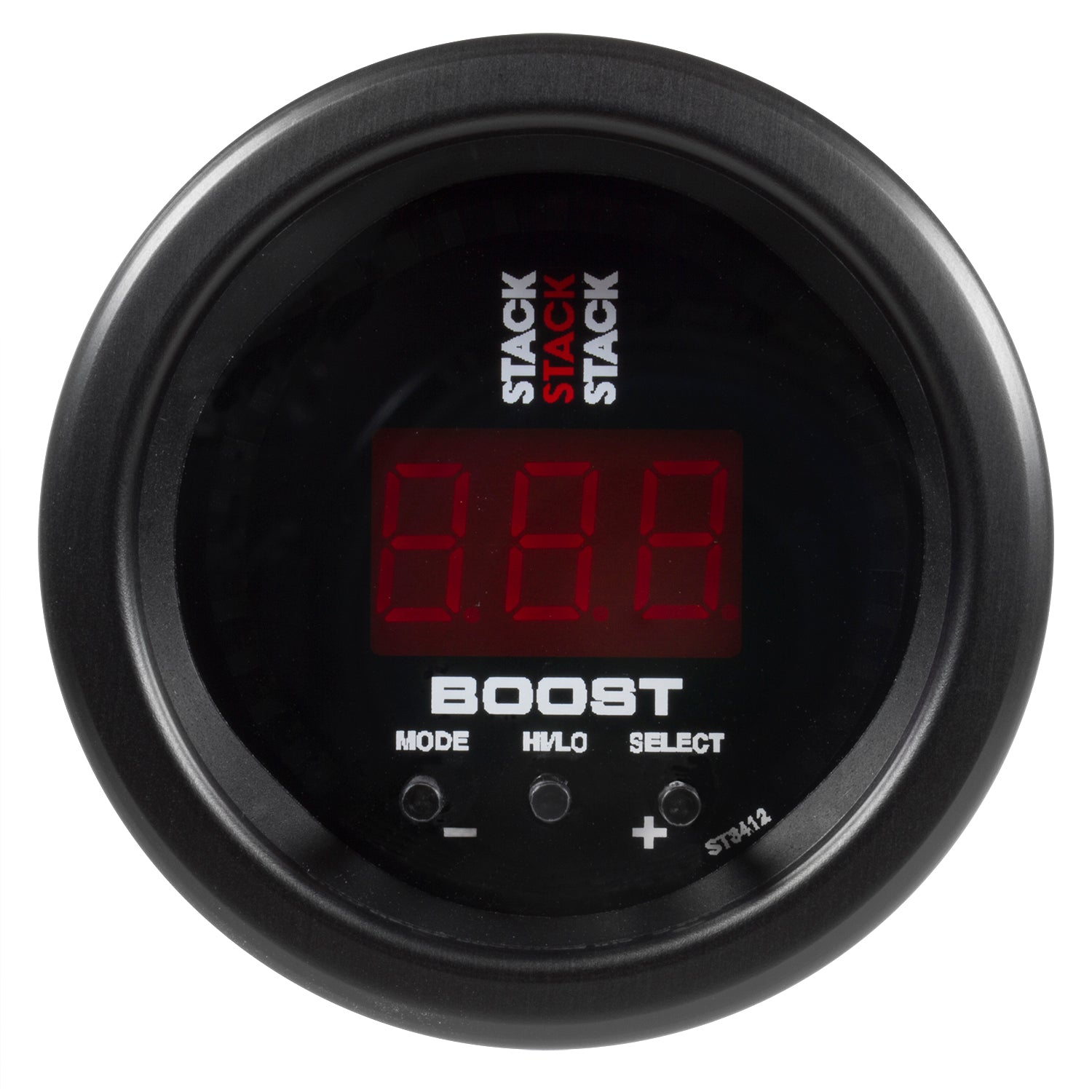

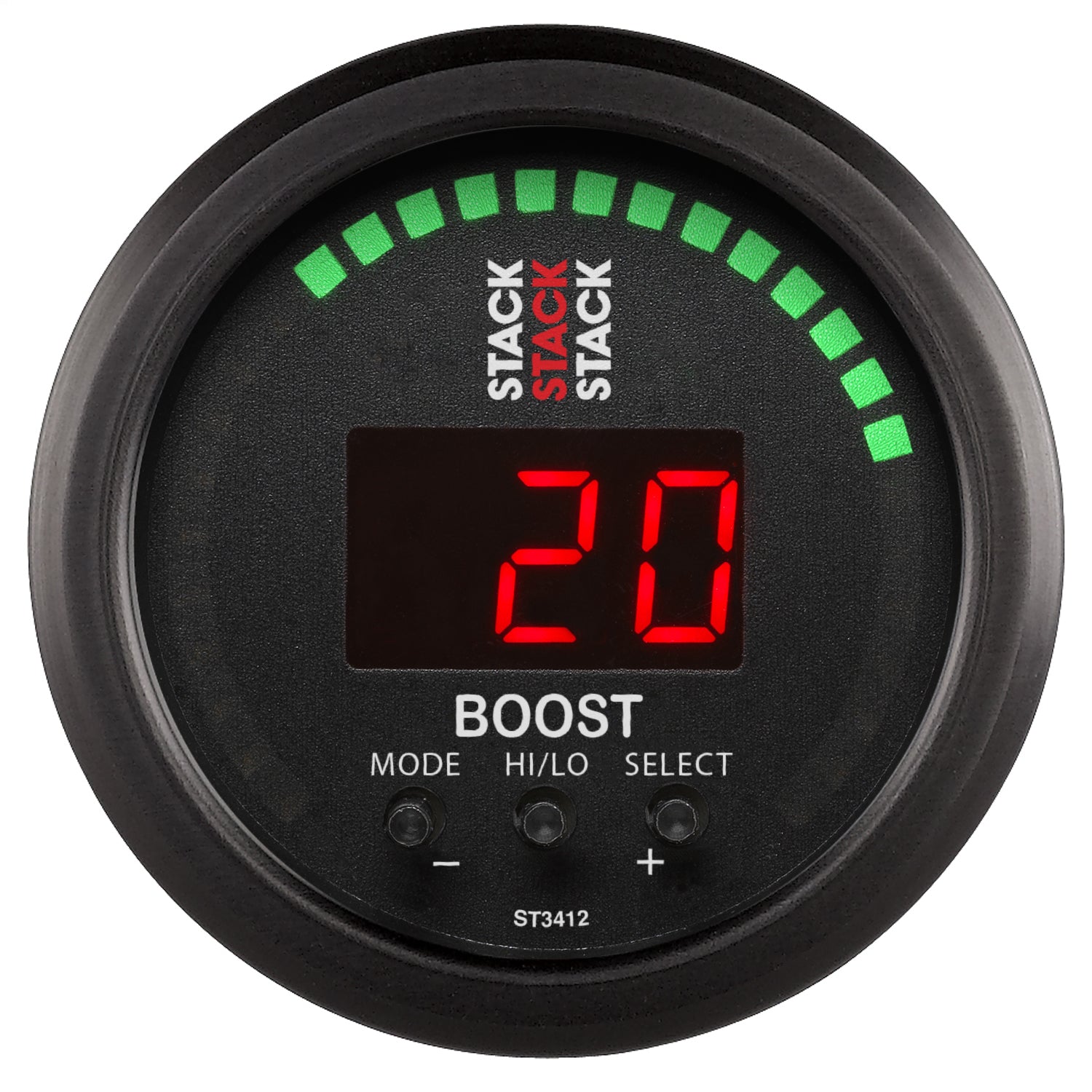

52MM BOOST CONTROLLER -1 TO +2 BAR (-30INHG TO +30 PSI) STACK BLK

Precisely monitor and control single or bi turbo petrol engine applications up to 30 PSI with this self-contained digital boost control from Stack. Intuitive menu options and push button programming supports a variety of turbocharger management strategies from basic high and low pressure settings, to more complex boost by RPM and boost by gear maps.

• Engineered for track day customers seeking to maximize their turbo charged vehicle performance.
• Pro-Control input allows for direct interaction with other Stack Pro-Control instruments and 3rd party devices for enhanced control and safety strategies.
• 4 Programmable Control Strategies: High, Low, RPM based mapping, Gear base mapping
• Peak Tell-Tale Memory
• Configurable Pro-Control output for activating accessories eg. pumps, etc (requires relay)
• 0-5 Volt analogue output for data logger or other control module
• Programmable alarm and overboost protection
• User Selectable Units (PSI, BAR, kPa)
• Programmable Radial Leds Optimize Display Resolution To Your Vehicles Requirements
• Optional barometric compensation mode allows the controller to adjust for changing atmospheric conditions such as ascending altitudes encountered in hill climb applications

Attributes:

• Brand Name: Stack
• GTIN: 00046074160998
• Add-On: ST3403;ST3306
• Product Type: Gauge Boost Controller

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.5 x 6 x 6.5 inches
• Weight: 1.5 POUNDS
