4L60E Vacuum Modulator Kit

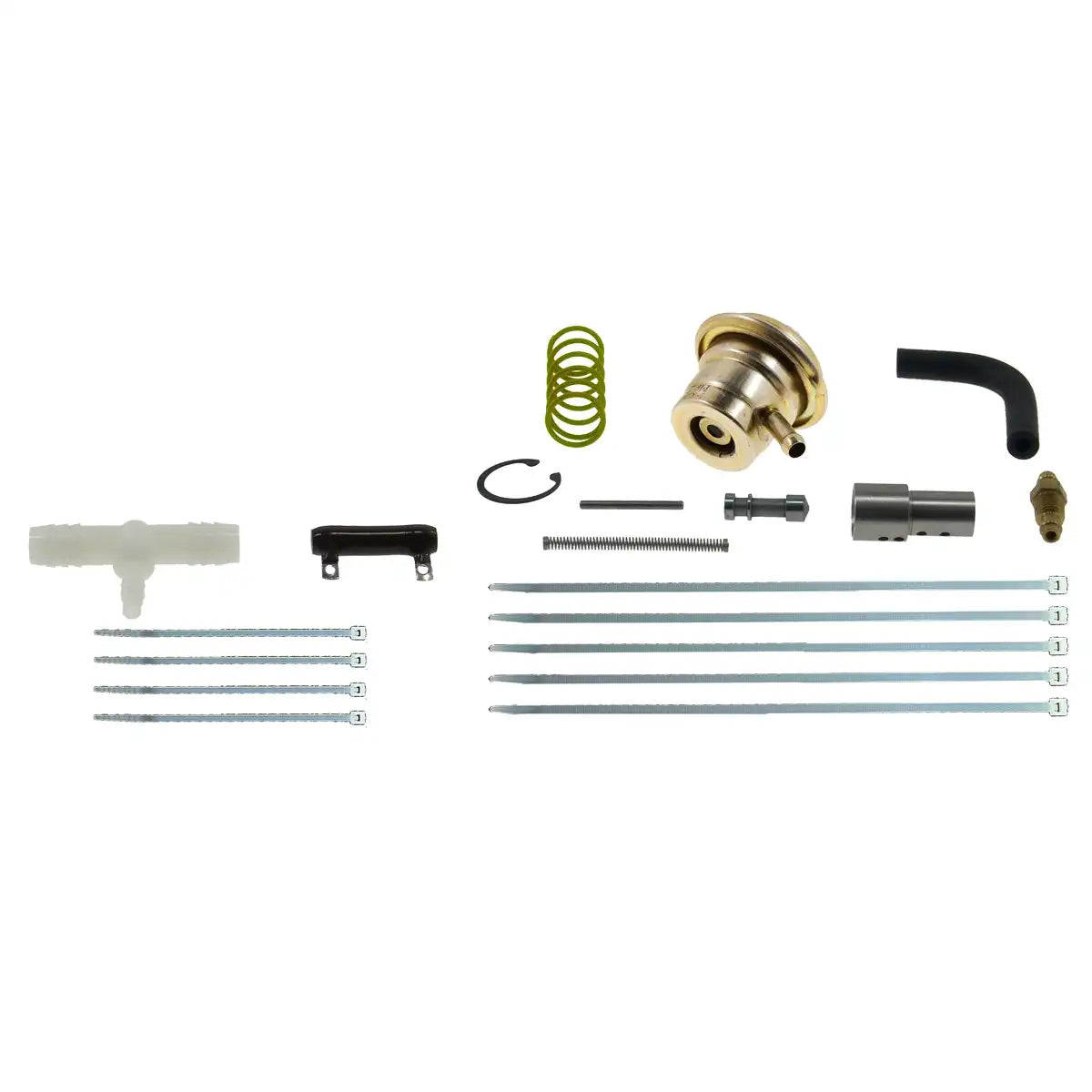

Great for transplants! This TransGo internal modulator kit provides tunable line pressure regulation with a vacuum modulator instead of the vehicle PCM controlling the EPC solenoid. The kit includes everything needed to add the internal modulator system with the oil pan off the transmission. From the outside of the transmission you will need to connect it to an intake manifold vacuum source, however hardware is not provided for this. In addition, it comes with an oil pan based resistor to pacify the control module for the missing EPC solenoid in applications where the computer will still manage the gear changes. Vehicle Specific

• Avanti: II 2001 - 2004, Buick: Commercial Chassis 1994 - 1996, Buick: Rainier 2004 - 2007, Buick: Roadmaster 1994 - 1996, Cadillac: Commercial Chassis 1994 - 1996, Cadillac: Escalade 1999 - 2006
• GMC: C1500 Suburban 1993 - 1999, GMC: C2500 1993 - 1999, GMC: C2500 Suburban 1993 - 1996, GMC: Canyon 2004 - 2012, GMC: Envoy 2002 - 2009, GMC: Envoy XL 2002 - 2006, GMC: Envoy XUV 2004 - 2005
• GMC: G1500 1993 - 1995, GMC: G2500 1993 - 1995, GMC: G3500 1993 - 1995, GMC: Jimmy 1993 - 2005, GMC: K1500 1993 - 1999, GMC: K1500 Suburban 1993 - 1999, GMC: K2500 1993 - 1998
• GMC: K2500 Suburban 1993
• Cadillac: Escalade ESV 2003 - 2006, Cadillac: Escalade EXT 2002 - 2006, Cadillac: Fleetwood 1994 - 1996, Chevrolet: Astro 1993 - 2005, Chevrolet: Avalanche 2007 - 2008
• Chevrolet: Avalanche 1500 2002 - 2006, Chevrolet: Blazer 1993 - 2005, Chevrolet: C1500 1993 - 1999, Chevrolet: C1500 Suburban 1993 - 1999, Chevrolet: C2500 1993 - 1999
• Chevrolet: C2500 Suburban 1993 - 1996, Chevrolet: Camaro 1994 - 2002, Chevrolet: Caprice 1994 - 1996, Chevrolet: Colorado 2004 - 2012, Chevrolet: Corvette 1994 - 2005
• Chevrolet: Express 1500 1996 - 2014, Chevrolet: Express 2500 1996 - 2009, Chevrolet: Express 3500 2006 - 2009, Chevrolet: Express 4500 2009 - 2009, Chevrolet: Express Cargo 2009 - 2014
• Chevrolet: Express Pasajeros 2009 - 2015, Chevrolet: G10 1993 - 1995, Chevrolet: G20 1993 - 1995, Chevrolet: G30 1993 - 1995, Chevrolet: Impala 1994 - 1996, Chevrolet: K1500 1993 - 1999
• Chevrolet: K1500 Suburban 1993 - 1999, Chevrolet: K2500 1993 - 1998, Chevrolet: K2500 Suburban 1993 - 1996, Chevrolet: S10 1993 - 2004, Chevrolet: S10 Blazer 1993 - 1994
• Chevrolet: SSR 2003 - 2006, Chevrolet: Silverado 1500 1999 - 2013, Chevrolet: Silverado 1500 Classic 2007 - 2007, Chevrolet: Silverado 2500 1999 - 2001, Chevrolet: Suburban 1500 2000 - 2009
• Chevrolet: Suburban 2500 2000 - 2000, Chevrolet: Tahoe 1995 - 2009, Chevrolet: Trailblazer 2002 - 2009, Chevrolet: Trailblazer EXT 2002 - 2006, GMC: C1500 1993 - 1999

Attributes:

• Brand Name: TransGo Performance
• GTIN: 00810159320245
• Installation: Transmission Removal Not Required

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 7 x 2.75 inches
• Weight: 0.6 POUNDS
