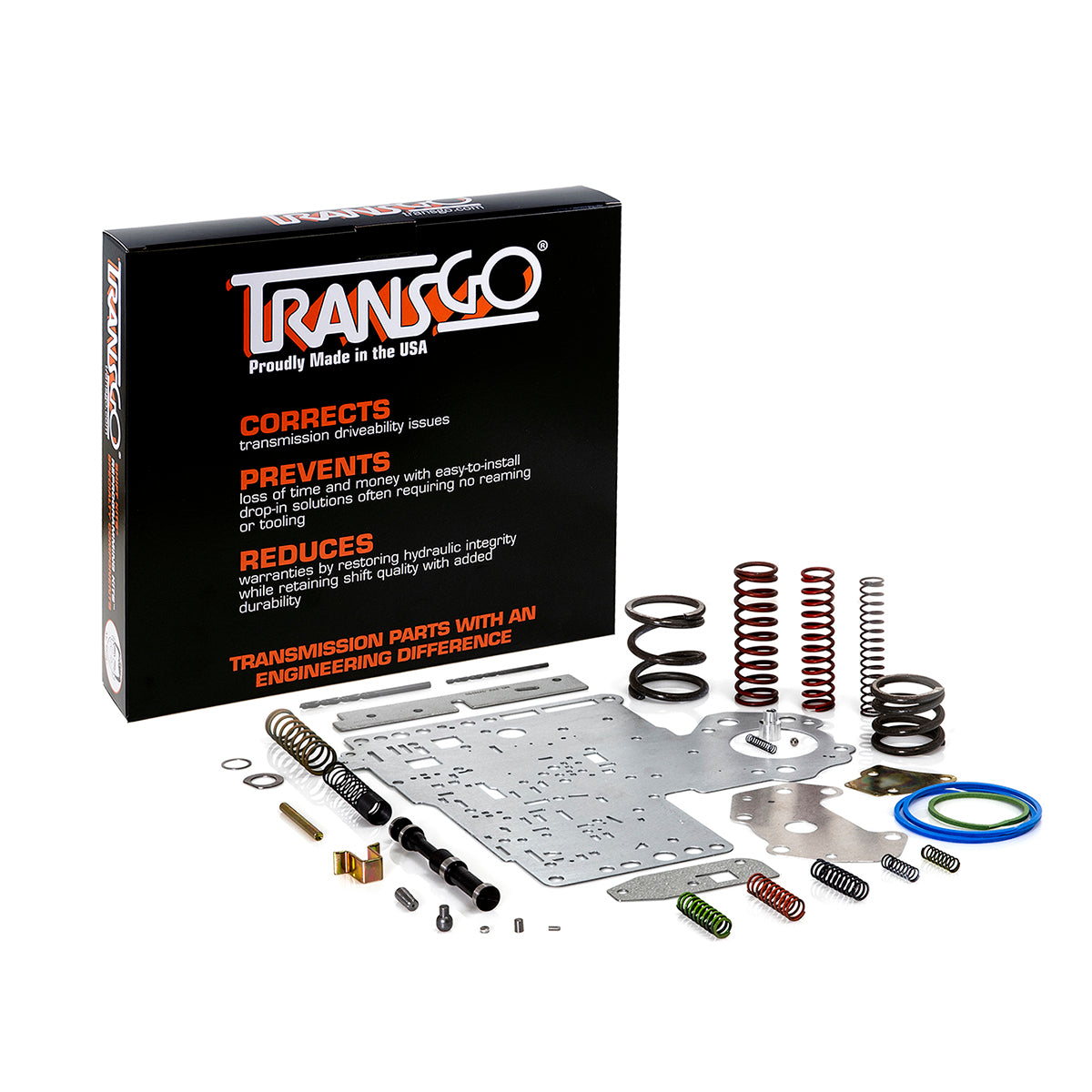

46-47RE/RH SHIFT KIT® Valve Body Repair Kit

The kit includes valve body and internal components that are designed for higher operating pressures. As a result, with MAX main line pressure set to 125 psi in 1st, 2nd and 3rd gear and up to 150 psi in 4th or in lock-up, this kit provides a significant increase in torque capacity for all of the friction elements including the TCC clutch. These elevated pressure specs are ideal for the heavy-duty work truck as well as for pulling the fishing boat to the loading ramp. With the kit installed it brings a whole new driving experience to the truck while keeping the shift timing at the OE RPM’s for the optimal engine power curve. Therefore, the shifts are short and clean with no harshness, bangs or clangs. There are several innovative components in this kit. For instance, our line-to-converter feed system which helps the unit run cooler and promotes longer TCC clutch life. Also included is a TransGo pioneered manual valve to reduce overnight forward and reverse delayed engagement complaints due to torque converter drain back. Lastly, you can install this kit with the transmission in the truck. On the other hand, there are internal sealing rings furnished in the kit if the transmission is on the bench for overhaul. Vehicle Specific

• Dodge: B150 1990 - 1994 Dodge: B1500 1995 - 1998 Dodge: B250 1990 - 1994 Dodge: B2500 1995 - 1998 Dodge: B350 1990 - 1994 Dodge: B3500 1995 - 1998 Dodge: D100 1984 - 1989
• Dodge: D150 1990 - 1993 Dodge: D250 1990 - 1993 Dodge: D350 1990 - 1993 Dodge: Dakota 1992 - 2003 Dodge: Durango 1998 - 2003 Dodge: Ram 1500 1994 - 2003 Dodge: Ram 1500 Van 1998 - 2003
• Dodge: Ram 2500 1994 - 2003 Dodge: Ram 2500 Van 1996 - 2003 Dodge: Ram 3500 1994 - 2003 Dodge: Ram 3500 Van 1996 - 2003 Dodge: Ramcharger 1990 - 1993 Dodge: W150 1990 - 1993
• Dodge: W250 1990 - 1993 Dodge: W350 1993 - 1993 Jeep: Grand Cherokee 1993 - 1998 Jeep: Grand Wagoneer 1993 - 1993

Attributes:

• Brand Name: TransGo Performance
• GTIN: 00810159322713
• Installation: Transmission Removal Optional

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 2 x 9.5 x 10.25 inches
• Weight: 1.65 POUNDS
