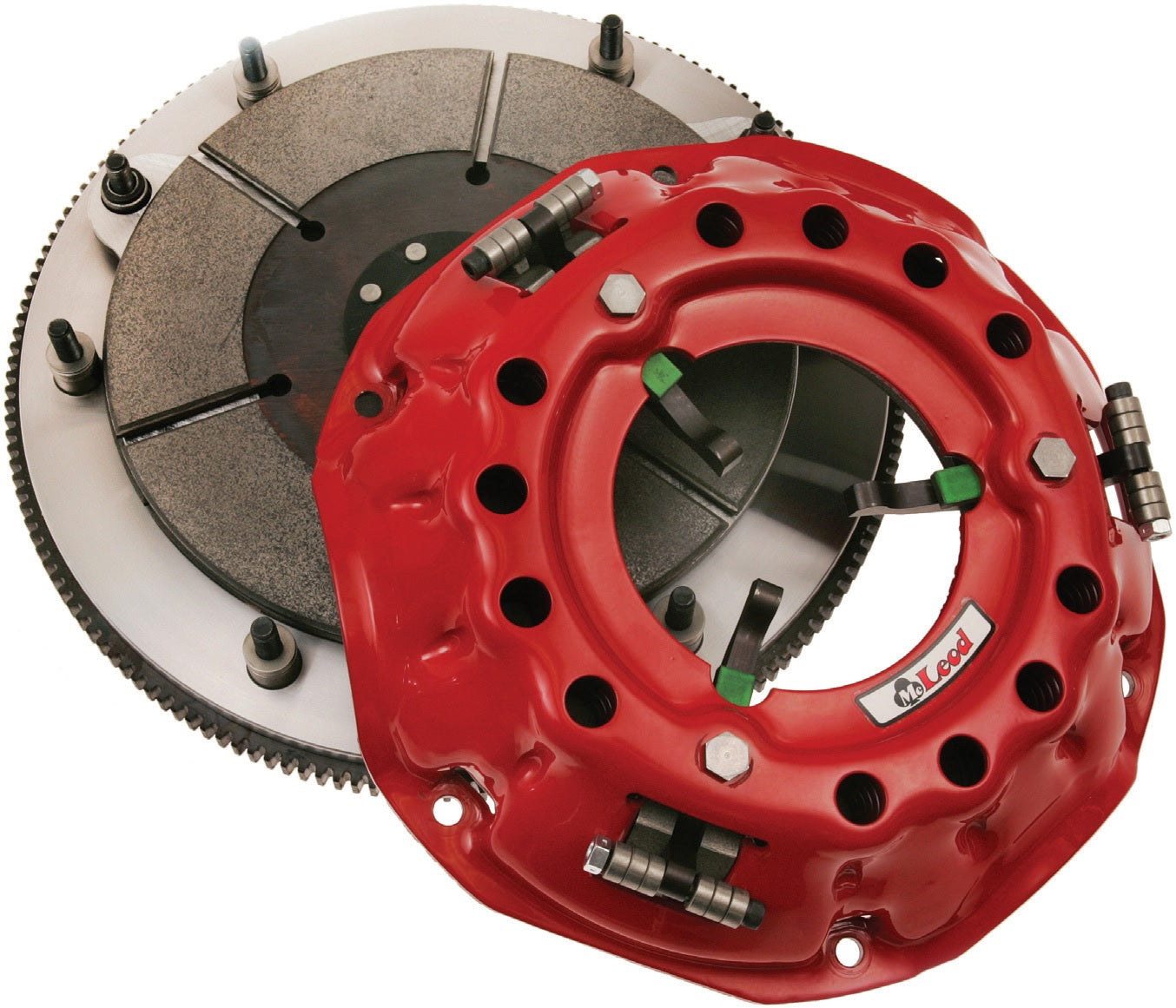

McLeod 4400 Series Truck Pull

The 4400 Series clutch system from McLeod is ideal for Truck Pulling and high horsepower sand drag applications. Recommended for non-shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly, unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.

• • Borg & Beck long style pressure plate w/counterweights. • High RPM lock-up capacity. • Sintered iron discs. • Steel Flywheel Included.

Vehicle Specific

• Ford: Bronco 66 - 68 4.7 L Engine, Ford: Bronco 68 - 95 5 L Engine, Ford: Bronco 78 - 95 5.8 L Engine, Ford: E-100 Econoline 69 - 83 5 L Engine, Ford: E-100 Econoline 75 - 83 5.8 L Engine
• Ford: E-100 Econoline Club Wagon 79 - 83 5 L Engine, Ford: E-100 Econoline Club Wagon 75 - 83 5.8 L Engine, Ford: E-150 Econoline 75 - 89 5 L Engine, Ford: E-150 Econoline 75 - 89 5.8 L Engine
• Ford: E-150 Econoline Club Wagon 79 - 89 5 L Engine, Ford: E-150 Econoline Club Wagon 75 - 89 5.8 L Engine, Ford: E-250 Econoline 75 - 84 5 L Engine, Ford: E-250 Econoline 75 - 84 5.8 L Engine
• Ford: E-250 Econoline Club Wagon 79 - 80 5 L Engine, Ford: E-250 Econoline Club Wagon 75 - 84 5.8 L Engine, Ford: E-350 Econoline 75 - 82 5 L Engine, Ford: E-350 Econoline 75 - 89 5.8 L Engine
• Ford: E-350 Econoline Club Wagon 79 - 80 5 L Engine, Ford: E-350 Econoline Club Wagon 77 - 84 5.8 L Engine, Ford: F-100 69 - 83 5 L Engine, Ford: F-150 75 - 95 5 L Engine
• Ford: F-150 77 - 95 5.8 L Engine, Ford: F-250 69 - 95 5 L Engine, Ford: F-250 77 - 95 5.8 L Engine, Ford: F-350 72 - 80 5 L Engine, Ford: F-350 77 - 95 5.8 L Engine
• Ford: P-350 72 - 76 5 L Engine, Ford: P-400 76 - 76 5 L Engine, Ford: P-500 76 - 77 5 L Engine, Ford: Ranchero 65 - 67 4.7 L Engine, Ford: Ranchero 68 - 77 5 L Engine
• Ford: Ranchero 69 - 77 5.8 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753677792
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Usage: Performance
• Counter Weight Kit if Required: 563333 (sold separately)
• Counterweight Assist: Yes
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 10.500
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet steel
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.375
• Input Spline Quantity: 10
• Make: Ford
• Pilot Bushing Included: No
• Pressure Plate Style: Long
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 164-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 65.3 POUNDS
