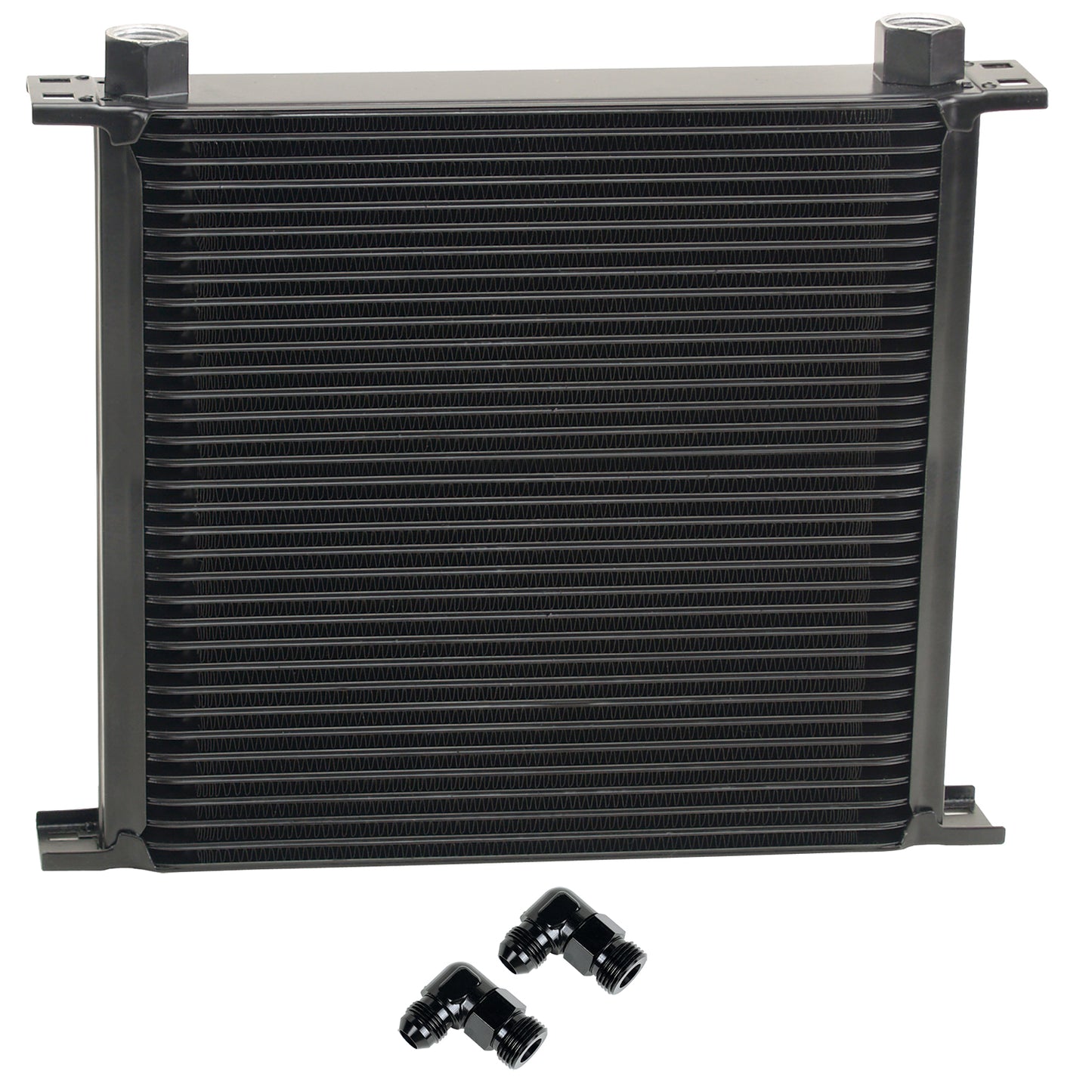

34 Row Series 10000 Stack Plate Fluid Cooler 90 Degree Swivel -8AN

Our most efficient heat exchanger, the all aluminum 34 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished 90 degree swivel -8AN male adapter fittings.

• 34 Row Series 10000 Stack Plate Fluid Cooler, 90 degree swivel -8AN

Attributes:

• Brand Name: Derale
• GTIN: 00083277534881
• BTU's Per Hour: 59000
• Color: Black
• Cooler style: Stacked Plate
• Depth: 2
• Height: 11-7/8
• Inlet dim: 10
• Inlet size: 10AN o-ring female
• Material: Aluminum
• Mounting: 12-1/4 x 10-1/16
• Width: 13

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18.625 x 13 x 2.125 inches
• Weight: 5.25 POUNDS

PDF:
