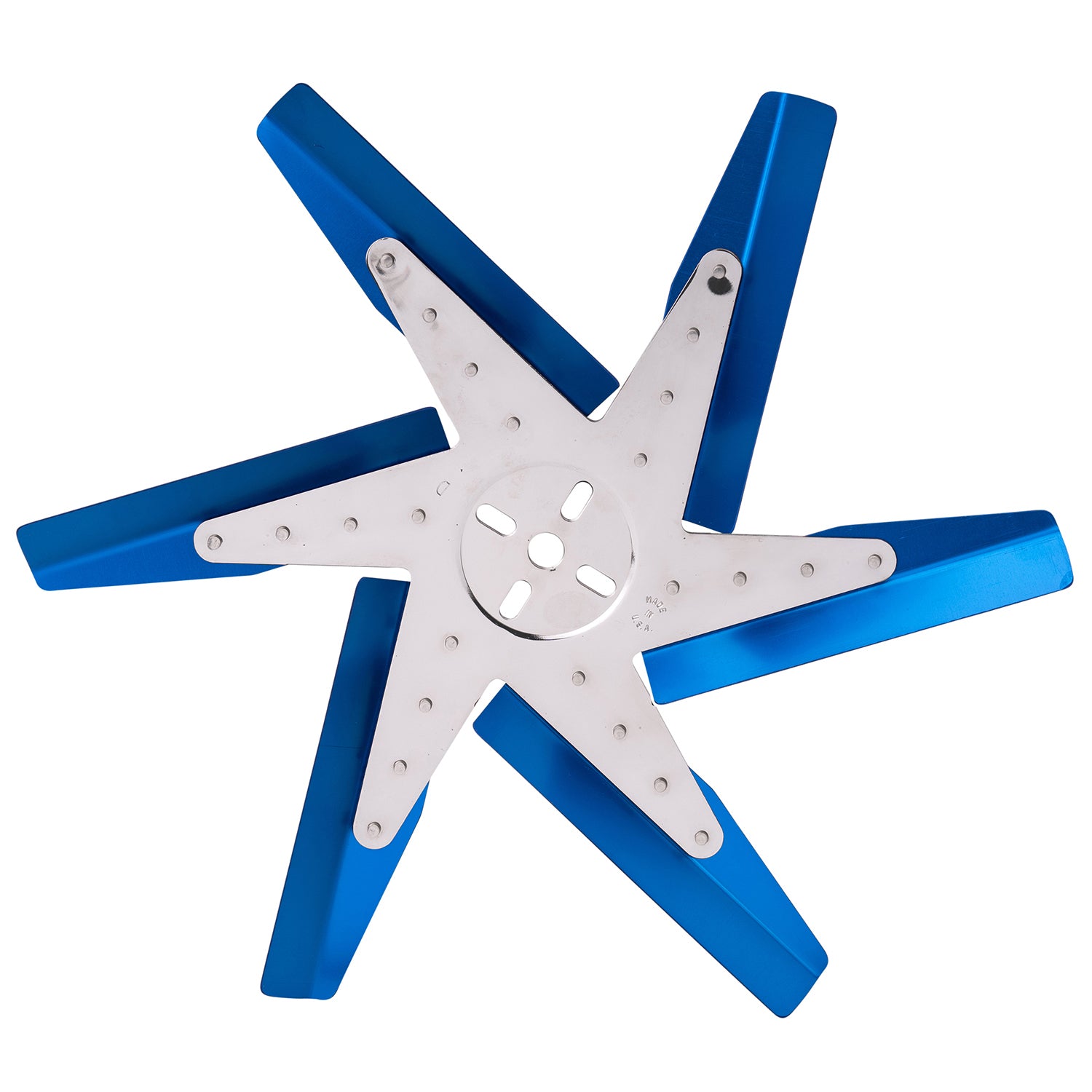

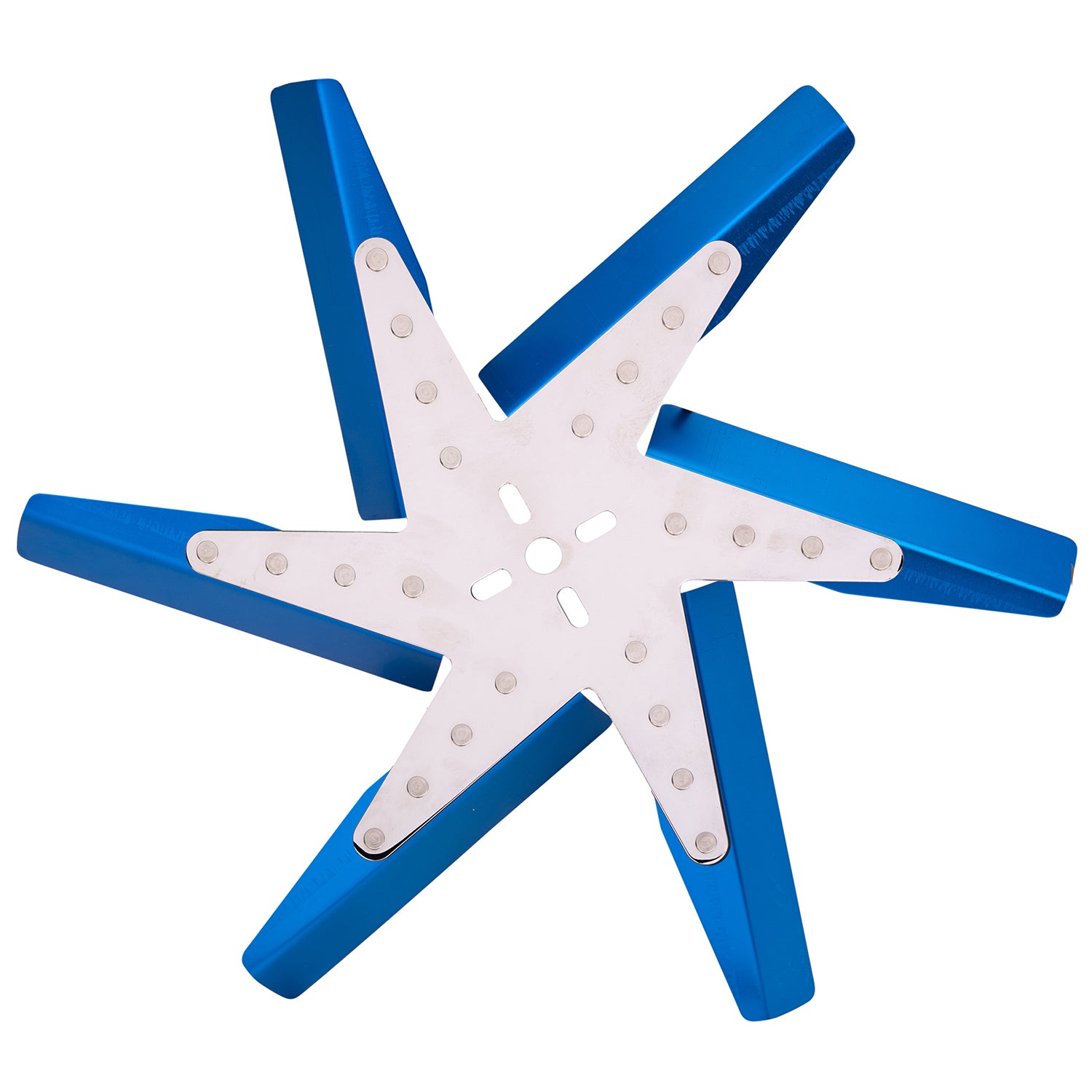

18" High Performance Alum Standard Rotation Flex Fan Blue Blade With Chrome Hub

At only 1 1/8" thick, this 18" high performance standard rotation flex fan is an attractive solution to limited space applications. Featuring 6 blue anodized aluminum blades and a polished and chrome plated steel hub, it is rated for engine speeds up to 8,000 rpm.

• 18" High Performance Alum Standard Rotation Flex Fan, Blue Blade with Chrome Hub

Attributes:

• Brand Name: Derale
• GTIN: 00083277195181
• Blade material: Anodized blue aluminum
• Blade pitch: 50°
• Color: Blue/Chrome
• Depth: 1-1/4
• Diameter: 18-1/4
• Flange bolt spacing: 1-3/4-2-1/4
• Hub material: Chrome plated steel
• Mounting surface to front: 1/4
• Mounting surface to rear: 1
• Rotation: Standard (clockwise)

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21.375 x 18.25 x 2.75 inches
• Weight: 2.3125 POUNDS
