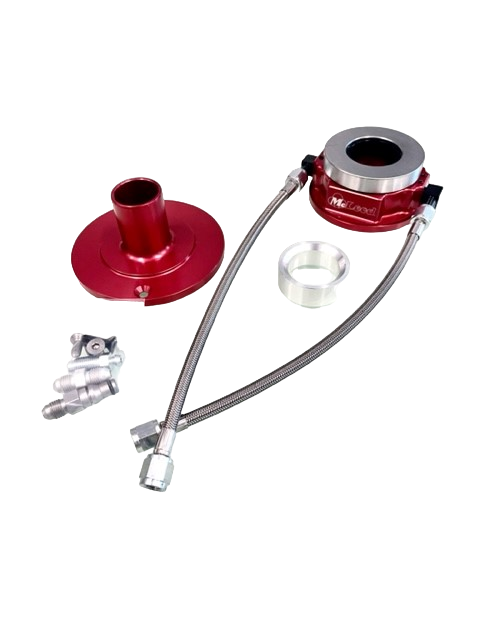

McLeod 1400 Series Hydraulic Throwout Bearings

Mcleod Hydraulic Bearings Are Made Of The Finest Hard Anodized Billet Aluminum. We Build Our Hydraulic Bearings With Swivel Fittings, Stainless Steel Lines And A Bleeder For Easier Installation.

• • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Vehicle Specific

• Cadillac: CTS 04 - 05 5.7 L Engine, Cadillac: CTS 06 - 07 6 L Engine, Chevrolet: Camaro 98 - 02 5.7 L Engine, Dodge: Viper 92 - 02 8 L Engine, Dodge: Viper 03 - 06 8.3 L Engine
• Dodge: Viper 08 - 17 8.4 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Pontiac: G8 09 - 09 6.2 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753015433
• Adjustment Screw Height (in.): 0.700
• Bearing Face I.D. (in.): 1.590
• Bearing Face O.D. (in.): 3.000
• Fitting Connections: Female Quick Disconnect
• Height: 1.830In.
• Inner Diameter: 1.430In.
• NOTE:: This is to be used with 1998-Up LS-X production T-56. 1992-Up Dodge Viper Production T-56. 2010-Up GM TR-6060. Tremec T-56 Magnum Aftermarket Transmissions. This Will NOT fit 1993-97 LT-1 Camaro/Firebird T-56 transmission.
• Quantity: Sold individually.
• Transmission: T-56 & T-56 Magnum
• Transmission 2: TR-6060

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 13 x 2 inches
• Weight: 10 POUNDS
