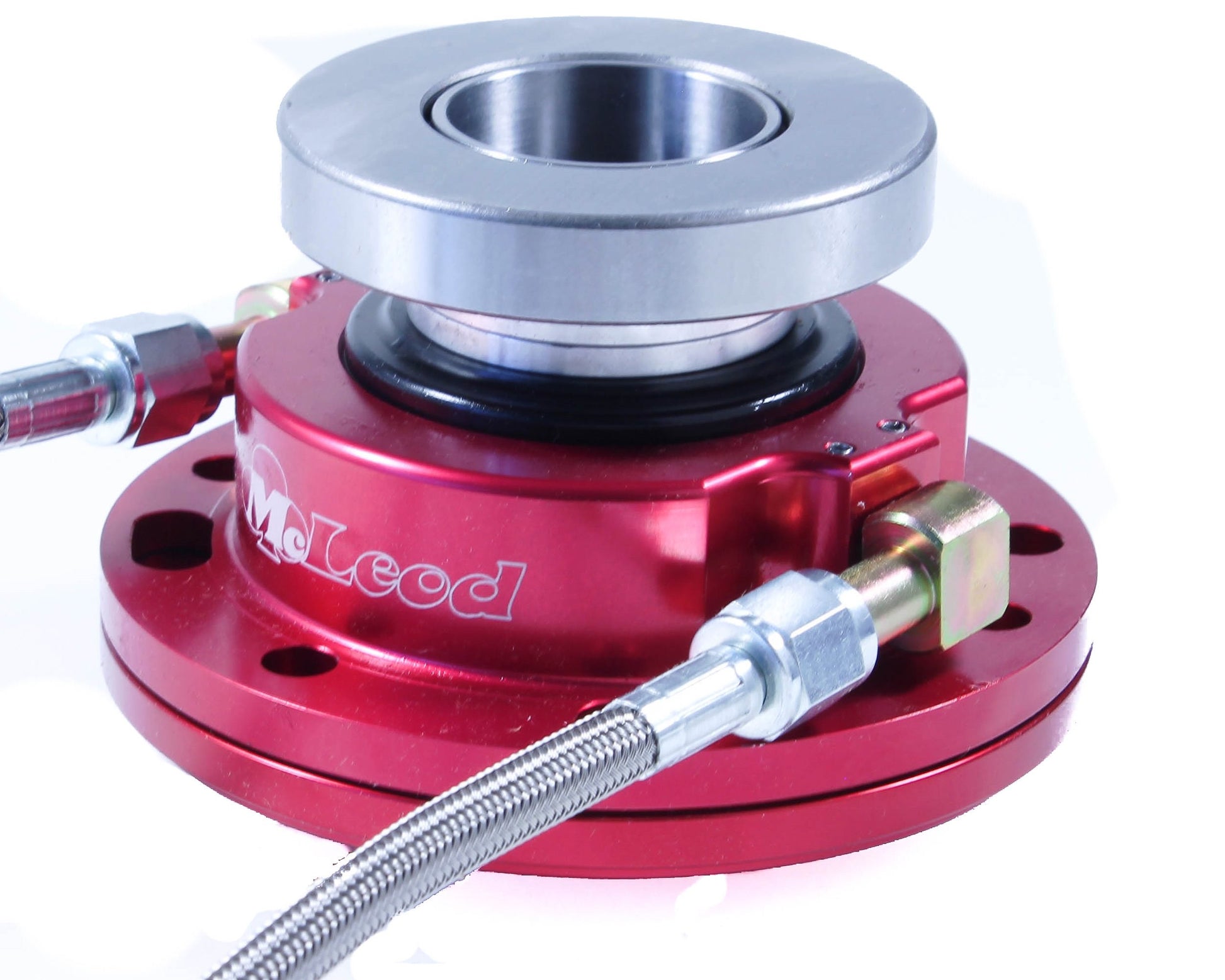

McLeod 1300 Series Hydraulic Throwout Bearings

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

• • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Vehicle Specific

• Chevrolet: Bel Air 66 - 72 4.1 L Engine, Chevrolet: Bel Air 66 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 66 - 68 5.3 L Engine, Chevrolet: Bel Air 70 - 72 5.7 L Engine
• Chevrolet: Chevelle 66 - 68 5.3 L Engine, Chevrolet: Chevelle 67 - 68 6.5 L Engine, Chevrolet: Chevy II 66 - 67 2.5 L Engine, Chevrolet: Chevy II 66 - 67 3.2 L Engine
• Chevrolet: Chevy II 66 - 66 3.8 L Engine, Chevrolet: Chevy II 67 - 67 4.1 L Engine, Chevrolet: Chevy II 66 - 67 4.6 L
• Chevrolet: Bel Air 66 - 68 6.5 L Engine, Chevrolet: Bel Air 70 - 72 6.6 L Engine, Chevrolet: Bel Air 66 - 68 7 L Engine, Chevrolet: Bel Air 70 - 72 7.4 L Engine, Chevrolet: Biscayne 66 - 72 4.1 L Engine
• Chevrolet: Biscayne 66 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 66 - 68 5.3 L Engine, Chevrolet: Biscayne 70 - 72 5.7 L Engine
• Chevrolet: Biscayne 66 - 68 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 66 - 68 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine
• Chevrolet: Brookwood 70 - 72 4.1 L Engine, Chevrolet: Brookwood 71 - 72 5 L Engine, Chevrolet: Brookwood 70 - 72 5.7 L Engine, Chevrolet: Brookwood 70 - 72 6.6 L Engine
• Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: Camaro 67 - 69 3.8 L Engine, Chevrolet: Camaro 67 - 74 4.1 L Engine, Chevrolet: Camaro 69 - 73 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine
• Chevrolet: Camaro 67 - 74 5.7 L Engine, Chevrolet: Camaro 67 - 68 6.5 L Engine, Chevrolet: Camaro 70 - 72 6.6 L Engine, Chevrolet: Camaro 69 - 69 7 L Engine, Chevrolet: Caprice 67 - 72 4.1 L Engine
• Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 68 - 72 5 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine, Chevrolet: Caprice 66 - 69 6.5 L Engine
• Chevrolet: Caprice 70 - 72 6.6 L Engine, Chevrolet: Caprice 66 - 69 7 L Engine, Chevrolet: Caprice 70 - 72 7.4 L Engine, Chevrolet: Chevelle 66 - 67 4.6 L Engine, Chevrolet: Chevelle 68 - 68 5 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753018458
• "A" Dimension: 2.50 in. to 2.99 in.
• Bearing Face I.D. (in.): 1.590
• Bearing Face O.D. (in.): 3.000
• Height 1 Spacer: 2.590In.
• Height 2 Spacers: 2.740
• Height 3 Spacers: 2.890In.
• Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
• Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
• Quantity: Sold individually.
• Spline: 1 1/8In. x 26
• Stock Collar I.D. (in.): 4.680In.
• Transmission: Saginaw

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 5.5 x 3.25 inches
• Weight: 5 POUNDS
