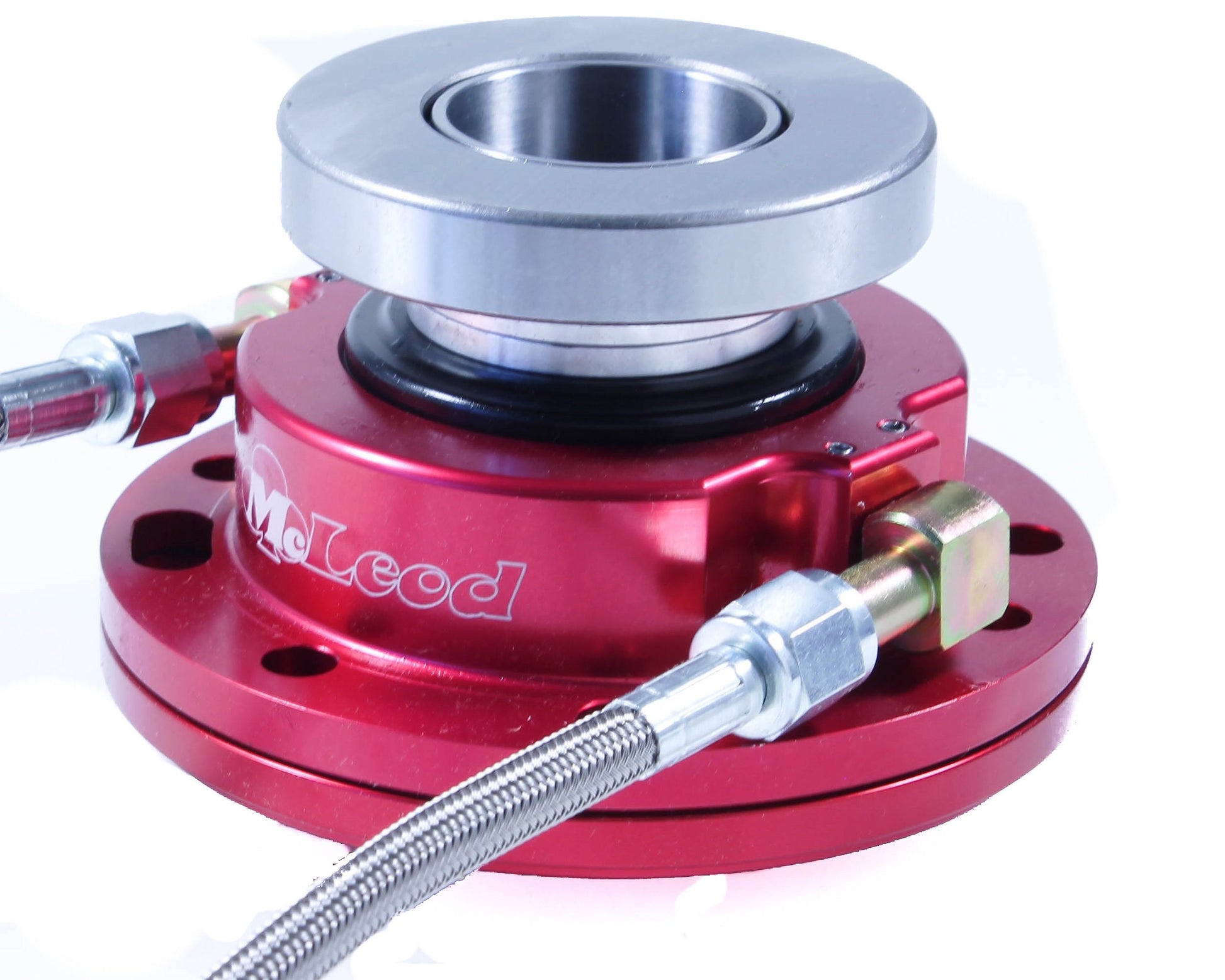

McLeod 1300 Series Hydraulic Throwout Bearings

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

• • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Vehicle Specific

• Buick: Century 73 - 74 5.7 L Engine, Buick: Century 73 - 74 7.5 L Engine, Buick: Electra 67 - 67 7 L Engine, Buick: GS 70 - 71 5.7 L Engine, Buick: Gran Sport 67 - 67 5.6 L Engine
• Chevrolet: Biscayne 64 - 65 6.7 L Engine, Chevrolet: Biscayne 66 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Brookwood 69 - 72 4.1 L Engine
• Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.
• Buick: Gran Sport 67 - 67 6.6 L Engine, Buick: LeSabre 67 - 67 5.6 L Engine, Buick: LeSabre 68 - 69 5.7 L Engine, Buick: Skylark 67 - 67 3.7 L Engine, Buick: Skylark 68 - 71 4.1 L Engine
• Buick: Skylark 67 - 67 4.9 L Engine, Buick: Skylark 67 - 67 5.6 L Engine, Buick: Skylark 68 - 72 5.7 L Engine, Buick: Skylark 67 - 68 6.6 L Engine, Buick: Skylark 70 - 71 7.5 L Engine
• Buick: Special 67 - 67 3.7 L Engine, Buick: Special 68 - 69 4.1 L Engine, Buick: Special 67 - 67 4.9 L Engine, Buick: Special 67 - 67 5.6 L Engine, Buick: Special 68 - 69 5.7 L Engine
• Buick: Sportwagon 66 - 67 5.6 L Engine, Buick: Sportwagon 68 - 69 5.7 L Engine, Buick: Sportwagon 68 - 69 6.6 L Engine, Buick: Wildcat 67 - 69 7 L Engine, Chevrolet: Bel Air 65 - 65 3.8 L Engine
• Chevrolet: Bel Air 65 - 72 4.1 L Engine, Chevrolet: Bel Air 65 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 65 - 69 5.3 L Engine, Chevrolet: Bel Air 69 - 72 5.7 L Engine
• Chevrolet: Bel Air 65 - 69 6.5 L Engine, Chevrolet: Bel Air 70 - 72 6.6 L Engine, Chevrolet: Bel Air 65 - 65 6.7 L Engine, Chevrolet: Bel Air 66 - 69 7 L Engine, Chevrolet: Bel Air 70 - 72 7.4 L Engine
• Chevrolet: Biscayne 64 - 65 3.8 L Engine, Chevrolet: Biscayne 65 - 72 4.1 L Engine, Chevrolet: Biscayne 64 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine
• Chevrolet: Biscayne 64 - 69 5.3 L Engine, Chevrolet: Biscayne 69 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753015853
• "A" Dimension: 2.50 in. to 2.99 in.
• Bearing Face I.D. (in.): 1.590
• Bearing Face O.D. (in.): 3.000
• Height 1 Spacer: 2.590In.
• Height 2 Spacers: 2.740In.
• Height 3 Spacers: 2.890In.
• Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
• Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
• Quantity: Sold individually.
• Spline: 1 1/8In. x 26, 1-1/8In. x 10
• Stock Collar I.D. (in.): 4.680In.
• Transmission: Muncie M20/M21/M22

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 6 inches
• Weight: 5 POUNDS
