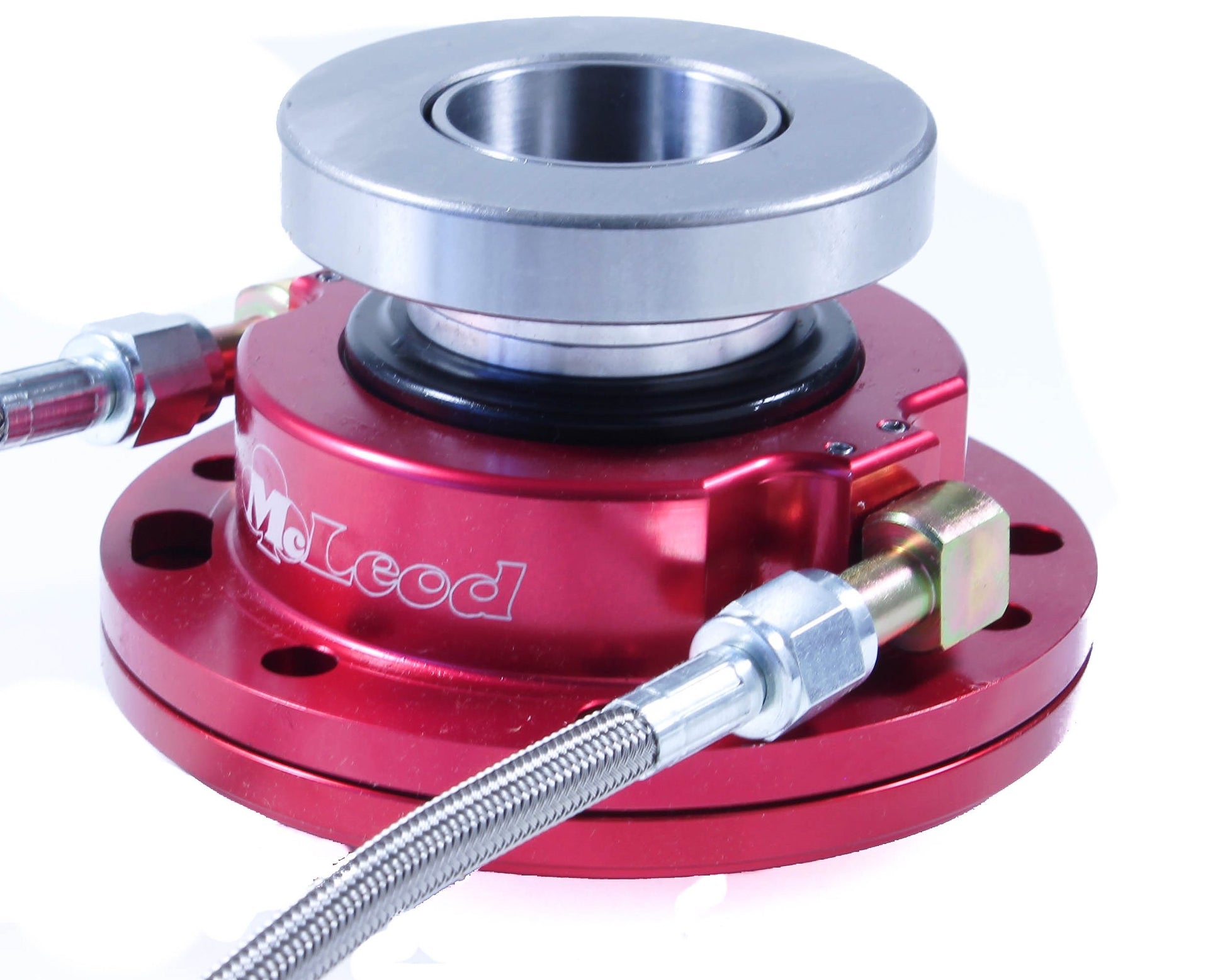

McLeod 1300 Series Hydraulic Throwout Bearings

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

• • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Vehicle Specific

• American Motors: Javelin 71 - 74 6.6 L Engine, American Motors: Matador 71 - 74 6.6 L Engine, Buick: Electra 62 - 66 6.6 L Engine, Buick: Gran Sport 65 - 66 6.6 L Engine
• Buick: Invicta 59 - 63 6.6 L Engine, Buick: LeSabre 63 - 64 6.6 L Engine, Buick: Skylark 65 - 66 6.6 L Engine, Buick: Wildcat 64 - 66 6.6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753010858
• "A" Dimension: 2.50 in. to 2.99 in.
• Bearing Face I.D. (in.): 1.590
• Bearing Face O.D. (in.): 3.000
• Bearing Register O.D.: 4.680In.
• Height 1 Spacer: 2.590In.
• Height 2 Spacers: 2.740
• Height 3 Spacers: 2.890In.
• Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
• Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
• Quantity: Sold individually.
• Spline: 1 1/8In. x 26
• Transmission: Borg Warner T-10,Super T-10, G-Force 5 Speed

Extended Information:

• Country of Origin: United States
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 5.5 x 3.25 inches
• Weight: 5 POUNDS
