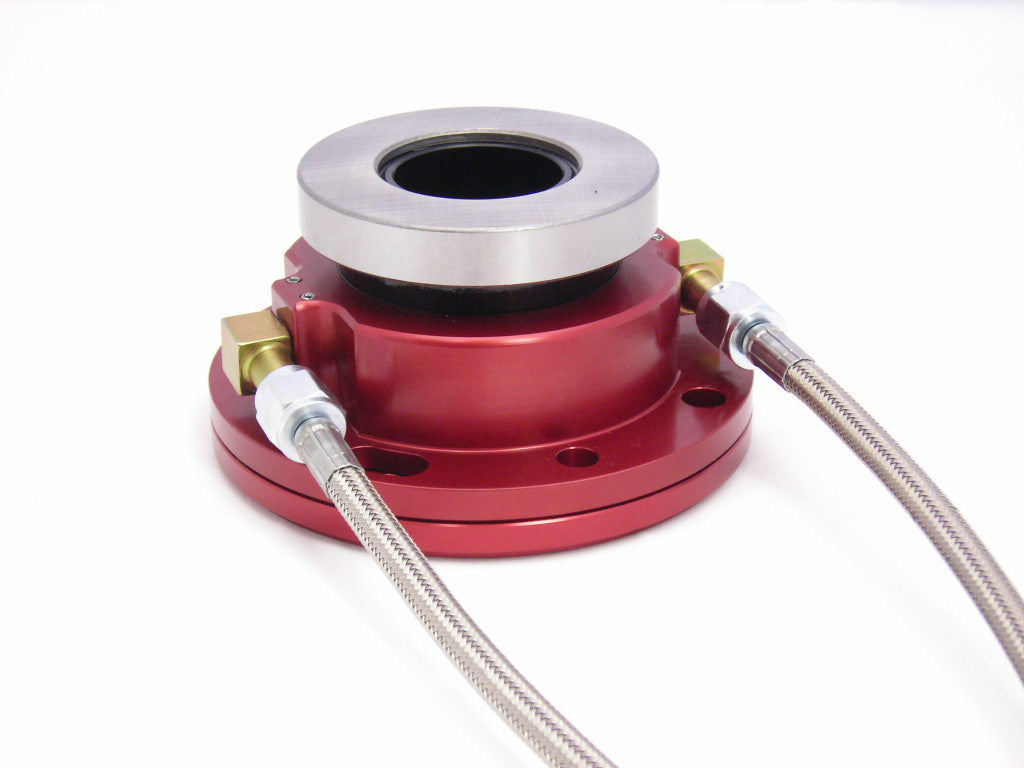

McLeod 1300 Series Hydraulic Throwout Bearings

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

• • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Vehicle Specific

• Chevrolet: Astro 85 - 89 2.5 L Engine, Chevrolet: Astro 85 - 89 4.3 L Engine, Chevrolet: Blazer 87 - 87 5 L Engine, Chevrolet: Blazer 87 - 90 5.7 L Engine, Chevrolet: Blazer 87 - 90 6.2 L Engine
• Chevrolet: K2500 88 - 92 6.2 L Engine, Chevrolet: K2500 91 - 92 7.4 L Engine, Chevrolet: K3500 88 - 90 5.7 L Engine, Chevrolet: K3500 88 - 90 6.2 L Engine, Chevrolet: K3500 88 - 90 7.4 L Engine
• Chevrolet: R10 87 - 87 4.3 L Engine, Chevrolet: R10 87 - 87 5 L Engine, Chevrolet: R10 87
• Chevrolet: C1500 88 - 90 4.3 L Engine, Chevrolet: C1500 88 - 90 5 L Engine, Chevrolet: C1500 88 - 90 5.7 L Engine, Chevrolet: C1500 88 - 90 6.2 L Engine, Chevrolet: C1500 90 - 90 7.4 L Engine
• Chevrolet: C2500 88 - 92 4.3 L Engine, Chevrolet: C2500 88 - 92 5 L Engine, Chevrolet: C2500 88 - 92 5.7 L Engine, Chevrolet: C2500 88 - 92 6.2 L Engine, Chevrolet: C2500 91 - 92 7.4 L Engine
• Chevrolet: C3500 88 - 90 5.7 L Engine, Chevrolet: C3500 88 - 90 6.2 L Engine, Chevrolet: C3500 88 - 90 7.4 L Engine, Chevrolet: Camaro 85 - 86 2.5 L Engine, Chevrolet: Camaro 85 - 89 2.8 L Engine
• Chevrolet: Camaro 90 - 92 3.1 L Engine, Chevrolet: Camaro 85 - 92 5 L Engine, Chevrolet: Camaro 87 - 92 5.7 L Engine, Chevrolet: G10 86 - 90 4.3 L Engine, Chevrolet: G10 86 - 90 5 L Engine
• Chevrolet: G10 86 - 90 5.7 L Engine, Chevrolet: G20 86 - 90 4.3 L Engine, Chevrolet: G20 86 - 90 5 L Engine, Chevrolet: G20 86 - 90 5.7 L Engine, Chevrolet: G20 86 - 90 6.2 L Engine
• Chevrolet: G30 86 - 90 4.3 L Engine, Chevrolet: G30 86 - 90 5.7 L Engine, Chevrolet: G30 86 - 90 6.2 L Engine, Chevrolet: G30 88 - 90 7.4 L Engine, Chevrolet: K10 86 - 86 4.3 L Engine
• Chevrolet: K10 86 - 86 5 L Engine, Chevrolet: K10 86 - 86 5.7 L Engine, Chevrolet: K10 86 - 86 6.2 L Engine, Chevrolet: K1500 88 - 90 4.3 L Engine, Chevrolet: K1500 88 - 90 5 L Engine
• Chevrolet: K1500 88 - 90 5.7 L Engine, Chevrolet: K1500 88 - 90 6.2 L Engine, Chevrolet: K2500 88 - 92 4.3 L Engine, Chevrolet: K2500 88 - 92 5 L Engine, Chevrolet: K2500 88 - 92 5.7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753015884
• "A" Dimension: 2.31 in. to 2.49 in.
• Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
• Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
• Quantity: Sold individually.
• Spline: 1 1/8In. x 26
• Stock Collar I.D. (in.): 4.680In.
• Trans Type: GM Borg Warner T-5

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 5.5 x 3.25 inches
• Weight: 5 POUNDS
