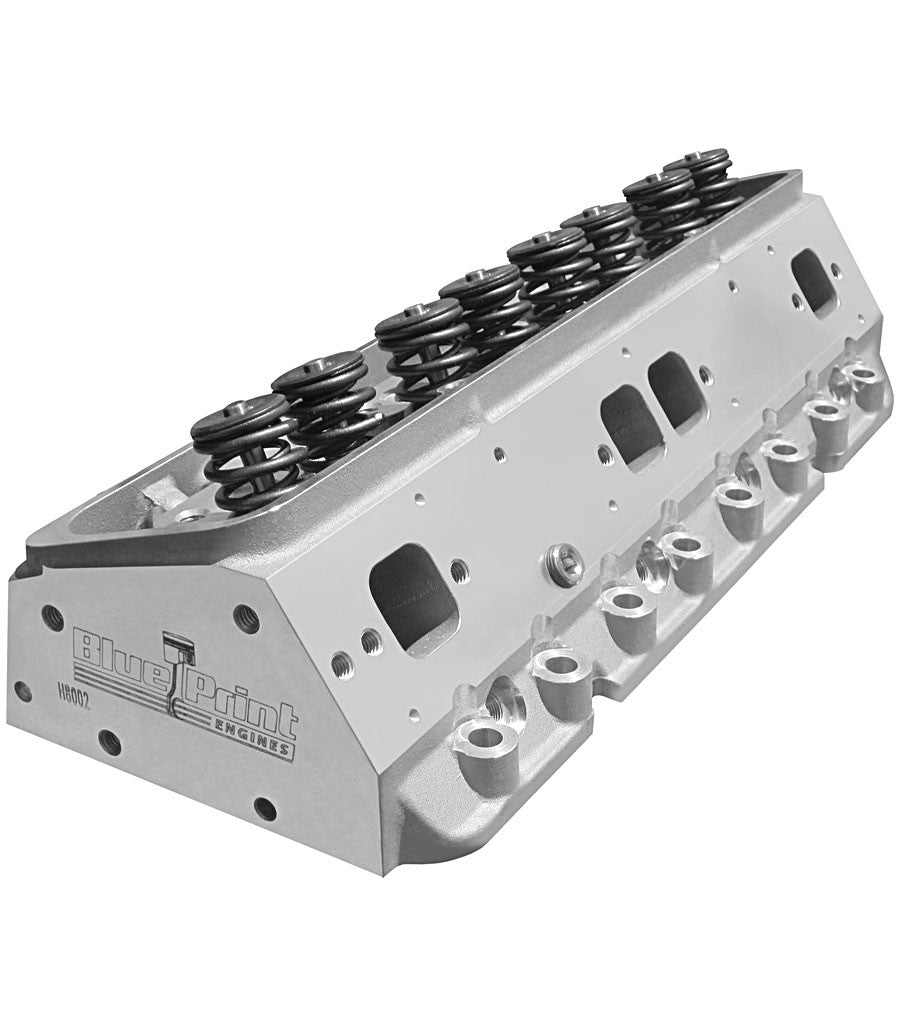

SB CHEVY ALUMINUM CYLINDER HEAD - 195CC - ASSEMBLED (SOLD INDIVIDUALLY)

SB Chevy Aluminum Cylinder Head 195cc Assembled Sold Individually

• SB Chevy Aluminum Cylinder Head 195cc Assembled Sold Individually

Attributes:

• Brand Name: BluePrint Engines
• GTIN: 00887753744678
• Accessory Bolt Holes Drilled: Yes, 3/8 -16 in.
• CNC-Machined Combustion Chamber: No
• CNC-Machined Intake Runner: No
• Camshaft Style: Hydraulic Roller
• Combustion Chamber Volume (cc): 64cc
• Cylinder Head Color: Natural
• Cylinder Head Material: Aluminum
• Cylinder Head Style: Assembled
• Damper Spring Included: Yes
• Exhaust Port Location: Raised .500
• Exhaust Port Shape: Square
• Exhaust Runner Volume (cc): 75cc
• Exhaust Valve Angle: 23
• Exhaust Valve Diameter (in.): 1.600 in.
• Exhaust Valves Included: Yes
• Guide plate Pushrod Size: 5/16 in.
• Guide plates Included: Yes
• Heat Crossover: No
• Intake Port Location: Standard
• Intake Port Shape: Rectangular
• Intake Runner Volume (cc): 195cc
• Intake Valve Angle: 23
• Intake Valve Diameter (in.): 2.020 in.
• Intake Valves Included: Yes
• Lock Style: 7 Degree
• Locks Included: Yes
• Machined for O-Ring: No
• Manufacturer's Part Number: H8002S
• Maximum Valve Lift (in.): 0.575 in.
• Notes: Uses 3/4 in. reach gasket seat spark plug. Heads are drilled to accept both early style (12 bolt) and late style (8 bolt/Vortec) intake manifolds.
• Number of Springs Per Valve: Dual
• Oiling Style: Through Pushrod
• Outside Diameter of Outer Spring (in.): 1.437 in.
• Quantity: Sold Individually
• Retainer Material: Chromoly Steel
• Retainers Included: Yes
• Rocker Arm Nut Thread Size: 7/16 in. x 20
• Rocker Arm Nuts Included: No
• Rocker Arm Studs Included: Yes
• Rocker Arms Included: No
• Spark Plug Style: Straight
• Steam Holes Drilled: No
• Valve Cover Mounting Style: Perimeter Bolt
• Valve Guide Material: Manganese Bronze
• Valve Guides Included: Yes
• Valve Seat Machine Style: 3-Angle
• Valve Seat Material: Chrome Nickel
• Valve Seats Machined: Yes
• Valve Springs Included: Yes
• Valve Stem Seal Style: Viton® Fluoroelastomer
• Valve Stem Seals Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22 x 10 x 8 inches
• Weight: 30 POUNDS
