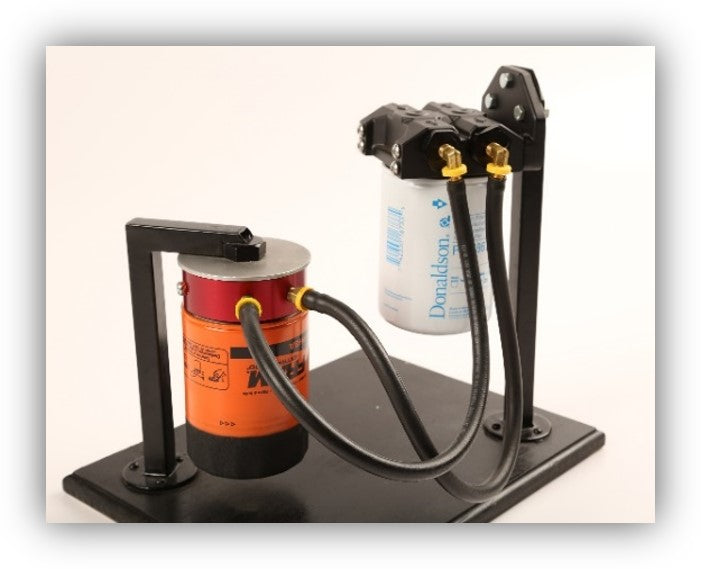

Pareto Point Top Dog-V 3.5F Kit

Today’s internal combustion engines work extremely hard. and clean oil is essential for your engine to perform at its best.  Unfortunately, your full-flow filter lacks the density capacity to trap the most dangerous debris (ten or less microns in size). As this debris passes through the engine, it causes a condition known as engine wear, which is responsible for over 85% of premature component failures. Ensuring the cleanest possible oil is the most important step you can take to protect your engine.  Making frequent oil changes is expensive and time-consuming, and waiting too long between changes can be disastrous.  By diverting a small amount of oil into a dense advanced filter, your oil is slowly and thoroughly filtered to about 5 microns, significantly reducing engine wear. This increases engine performance, mileage, and engine longevity. TopDog-V is inexpensive, quick to install, and requires no engine modification. TopDog-V has won numerous awards and has received high customer satisfaction marks.

• Improved mileage (up to 3%)
• Increased horsepower (higher efficiency, less energy consumption)
• Extended oil service intervals (at least two to three times longer)
• Longer engine life (decreased wear by at least half, doubling engine life)
• Lower repair costs (less parts replacement and labor costs)
• Reduced Environmental Footprint
• Fast, easy installation, with no engine modification required

Attributes:

• Brand Name: Pareto Point Industries
• GTIN: 00887753800961

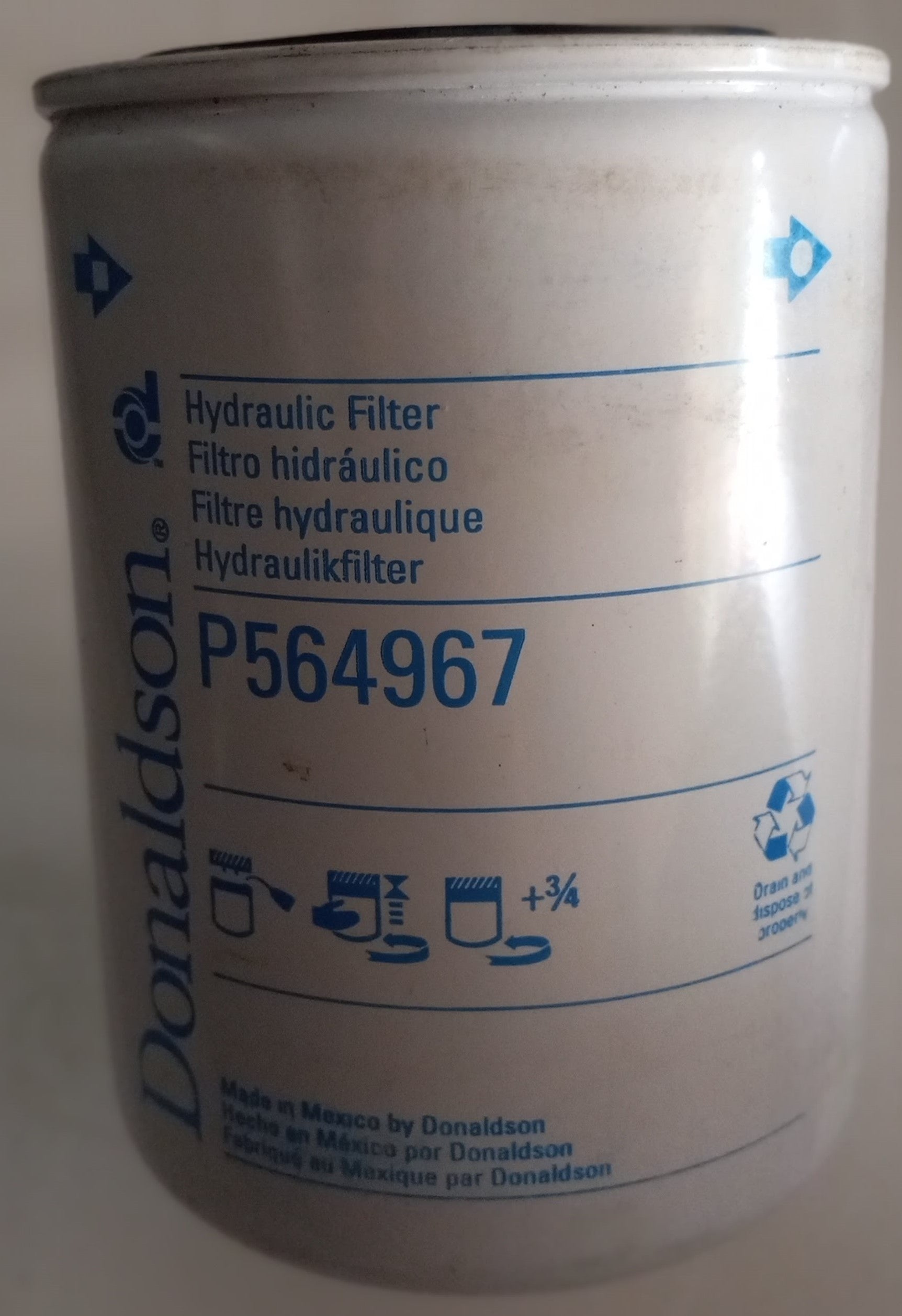

• Filter Specification: Advanced oil filter, Rated to 2-5 microns Donaldson P564967
• Fittings Specifications: 2 straight 1/8 IN NPT 2 elbow 1/8 IN NPT
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Hydraulic Hose Specifications: 8 FT of 1/8 IN rubber hose rated to 350F
• Material: 6061 Billet aluminum/rubber hose/brass fittings
• Maximum Filter Diameter: 3.5
• Nipple Thread Pitch Size Specifications: 22mm x 1.5 (F)
• O-Ring Specifications: O-rings (adapter bottom sealing, nipple sealing + extra set
• Oil Cooler Ports: No
• PPI Proprietary: Yes
• Patent Numbers: U.S. Pat No. 8,945,400; 9,109,478; Others pending
• Remote Mount Details: Includes appropriate internal plugs, screws and internal fittings
• System Adapter Diameter: 3.5 IN
• Thickness: 1.25
• Thread Diameter: 22mm x 1.5

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.5 x 11 x 5.5 inches
• Weight: 3 POUNDS
