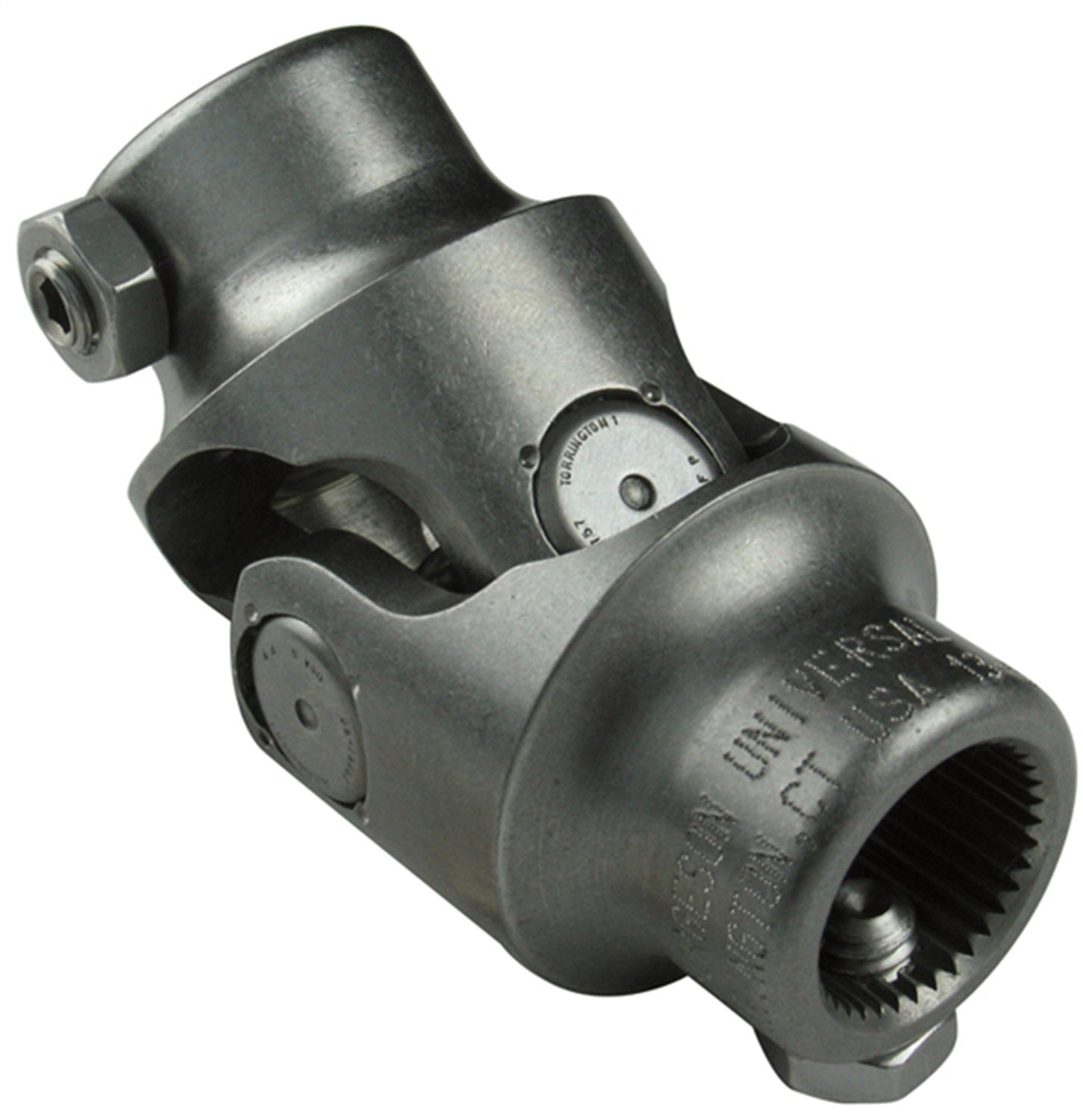

Borgeson - Steering U-Joint - P/N: 114352 - Stainless Steel Single Steering Universal Joint. Fits 1 In.-48 Spline X 1 In. Double-D.

Borgeson u-joints are machined in our factory on state of the art CNC equipment from solid billet steel, stainless steel or aluminum. Ongoing engineering and testing ensures our components meet or exceed current automotive production vehicle requirements. Any of our 4 Double D (a round shaft with two flats) sizes, 14 different spline size yokes, and the '94 and later Mustang V style can be combined to mate components from many different manufacturers. They operate at angles up to 35 degrees. For example, with our components, you could easily connect a GM column to a new Mustang rack and pinion or a Ford column to a Saginaw box. Similar to OEM u-joints, the staked needle bearing caps prevent loosening and adjustment malfunction.

• Stainless steel. 35 Degree maximum angle. Strongest steering universal joint available. Zero radial play. Precision machined from solid billet stainless steel. Maintenance free sealed needle bearing design. Made in the USA.

Attributes:

• Brand Name: Borgeson
• GTIN: 00843975001357
• CA Prop 65 Required: Y
• End 1 Inside Diameter: 1.00
• End 1 Spline Quantity: 48
• End 2 Inside Diameter: 1.00
• End 2 Spline Quantity: 0
• Grade Type: Performance
• Greaseable: No
• Length: 3.25
• Material: Stainless Steel
• Shaft End 1: 1 in. 48-spline
• Shaft End 2: 1 in. DD

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 1.75 x 3.75 x 5.75 inches
• Weight: 1.15 POUNDS
