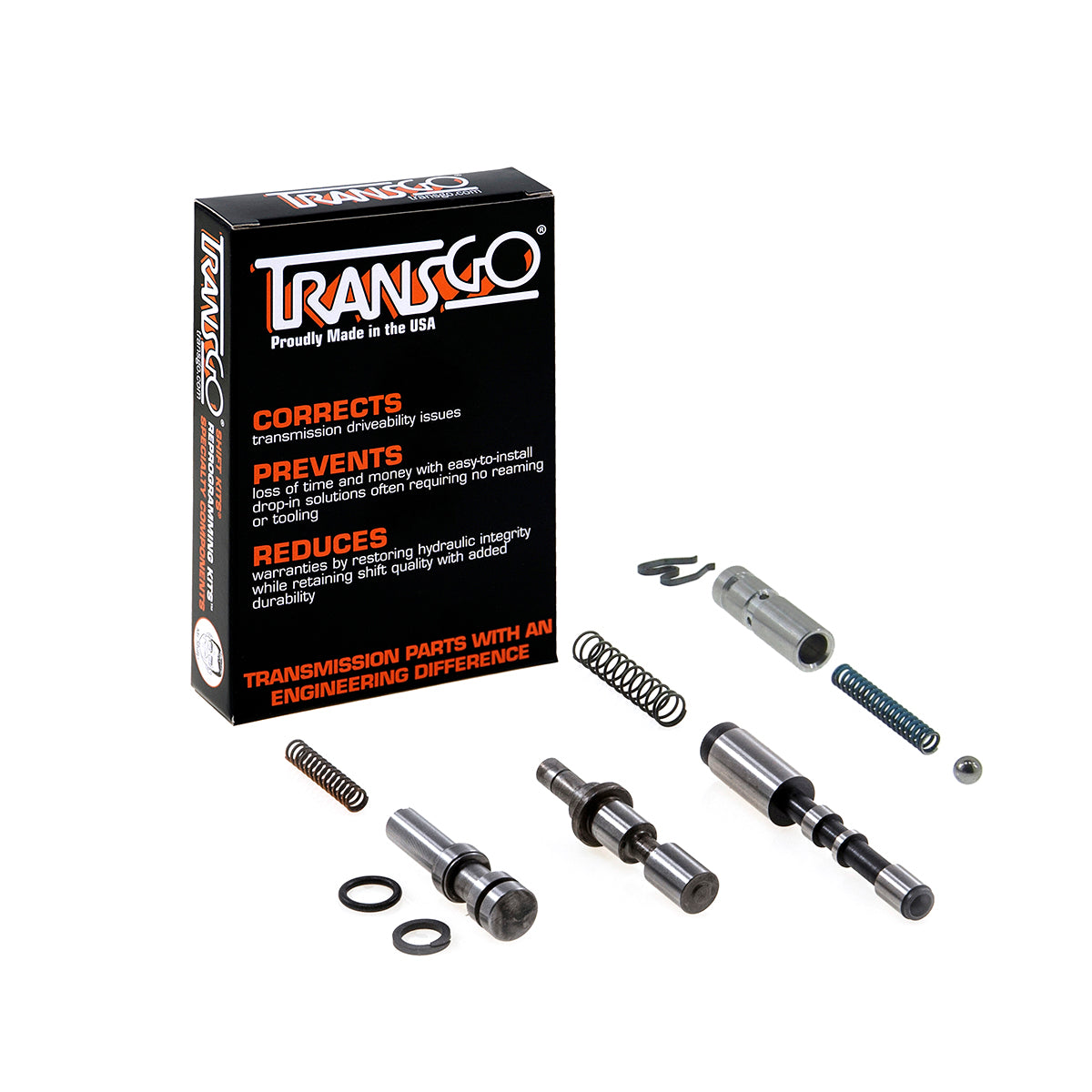

6T70 6T75 6T80 2013-on GEN2 SHIFT KIT® Valve Body Repair Kit

The kit includes an oversized AFL valve. The new valve is oversize which means you will need the TransGo tool-kit part # AFL-G2-TK to ream the bore. This universal tool-kit works for all GEN2 6F35, 6T30, 6T40, 6T45, 6T50, 6T70, 6T75 and 6T80 transmissions. A new drop-in hardened steel TCC regulator valve that has re-positioned longer lands and incorporates a groove where a scarf cut seal is fitted so that it seals in the original worn bore. Also, a new design PR valve with longer lands restores the function and reliability of the pressure regulator system. Lastly, a new pressure relief system replaces the OE isolator valve line-up. This new system prevents expensive hard part damage due to pressure over boost. Vehicle Specific

• Buick: Enclave 2013 - 2017, Buick: LaCrosse 2013 - 2016, Buick: Regal 2014 - 2017, Cadillac: SRX 2013 - 2016, Cadillac: XTS 2013 - 2019, Chevrolet: Equinox 2013 - 2017
• Chevrolet: Impala 2013 - 2020, Chevrolet: Impala Limited 2014 - 2016, Chevrolet: Malibu 2013 - 2015, Chevrolet: Traverse 2013 - 2017, GMC: Acadia 2013 - 2019, GMC: Acadia Limited 2017 - 2017
• GMC: Terrain 2013 - 2017

Attributes:

• Brand Name: TransGo Performance
• GTIN: 00810159322287
• Grade Type: Standard Replacement
• Installation: Transmission Removal Not Required
• Instruction Manual Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.625 x 0.75 x 1.063 inches
• Weight: 0.27 POUNDS
