6T30-45 GEN1 SHIFT KIT® Valve Body Repair Kit

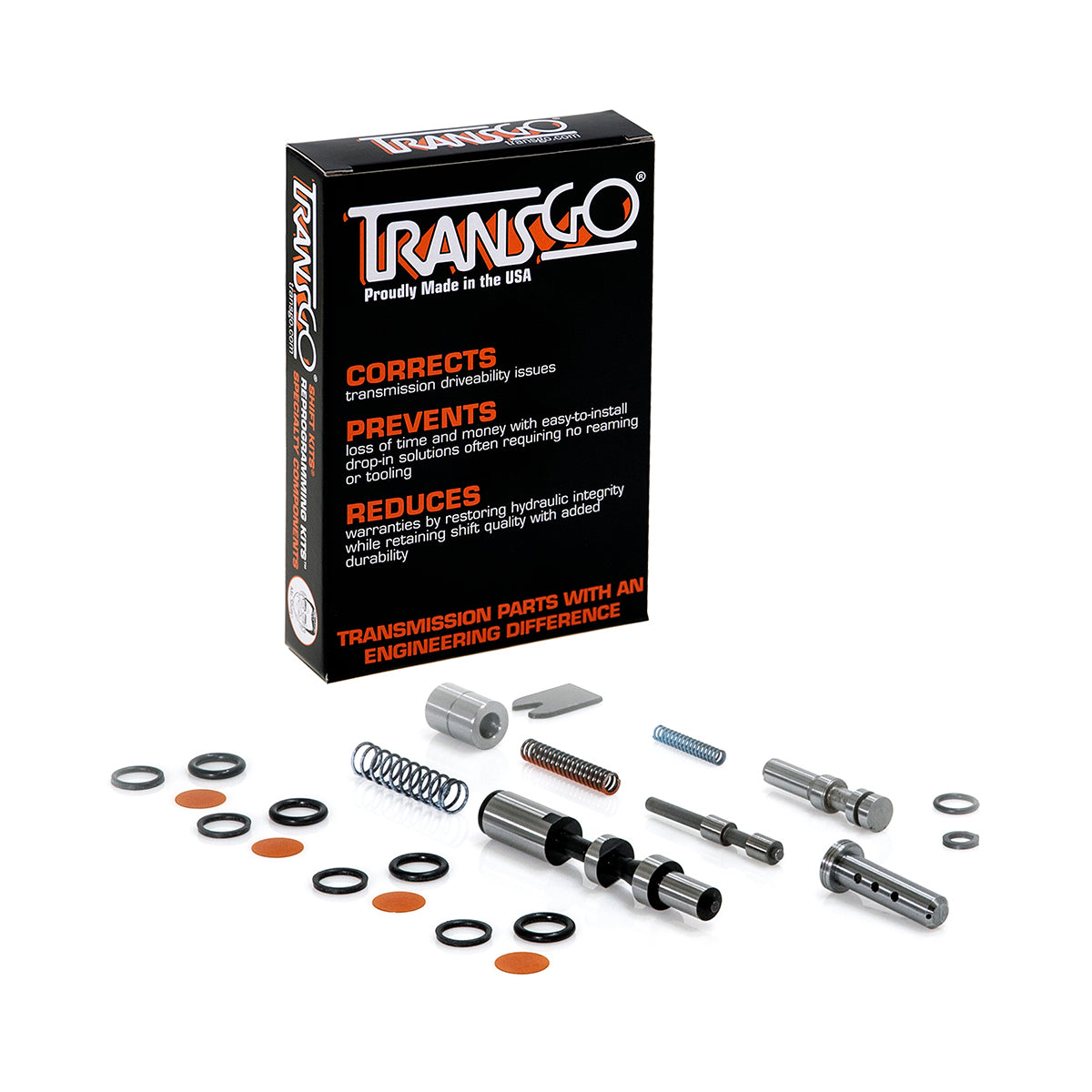

The kit includes a new drop-in AFL valve system. The furnished bushing, valve, spring, spacer and retainer will restore the AFL function using the existing worn bore. For the TCC regulator valve, a drop-in hardened steel valve with re-positioned longer lands that uses a scarf cut sealing ring so that it can seal in the original worn bore. Similarly, a new design PR valve with longer lands restores the function and reliability of the line PR system. Lastly, the kit includes new O-rings and diaphragms to renew the TEHCM pressure switches. Vehicle Specific

• Buick: Allure 2010 - 2010, Buick: LaCrosse 2010 - 2012, Buick: Regal 2011 - 2012, Buick: Verano 2012 - 2012, Chevrolet: Captiva Sport 2012 - 2012, Chevrolet: Cruze 2011 - 2012
• Chevrolet: Equinox 2010 - 2012, Chevrolet: Malibu 2008 - 2012, Chevrolet: Orlando 2012 - 2012, Chevrolet: Sonic 2012 - 2012, GMC: Terrain 2010 - 2012, Pontiac: G6 2009 - 2010
• Saturn: Aura 2009 - 2009

Attributes:

• Brand Name: TransGo Performance
• GTIN: 00810159322249
• Installation: Transmission Removal Not Required

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 1.0625 x 5.625 x 3.75 inches
• Weight: 0.35 POUNDS
